Control Techniques Profibus-DP - ERNI Termination Connector; Siemens Connector

12 Issue Number: 3

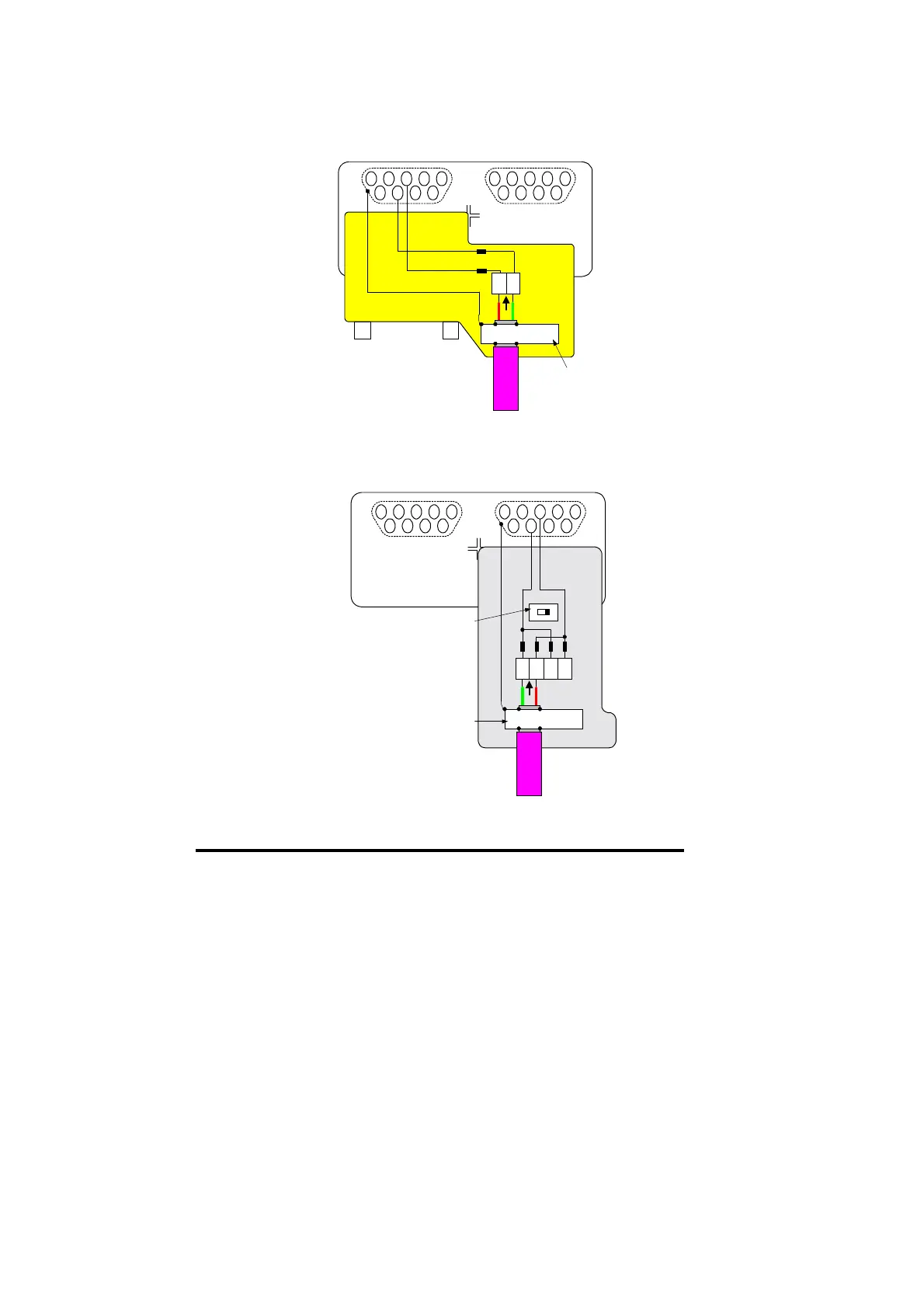

3.5.1 ERNI Termination Connector
ERNI supply a separate Profibus-DP connector that has the appropriate
resistor network fitted internally. The termination connector is yellow to
distinguish it from the non-terminated Profibus-DP connector.
AB
DC
12345
6789
12345
6789
Cable Screen
Clamp
B
ERNI ERbic Profibus
Connector with vertical
cable outlet
Part No: 103658
A
B
A
3.5.2 Siemens Connector
The termination resistor network is fitted in the Siemens connector. The
resistors can be switched in or out of the circuit as required using the
Termination Resistor Enable Switch.
AB
DC
12345
6789
12345
6789
B
OFF
Siemens RS485
Profibus Connector
Part No: 6GK1 500 0EA02
Cable Screen Clamp
ON
A
B2A2B1A1
Termination Resistor
Enable Switch
