4.8 External soft start circuit control
As discussed in section 4.4 External softstart resistor on page 12 an external soft start
resistor is required for Unidrive SP size 4 and larger.
The soft start resistor only needs to be in circuit at certain times as shown in the flow
diagram below.

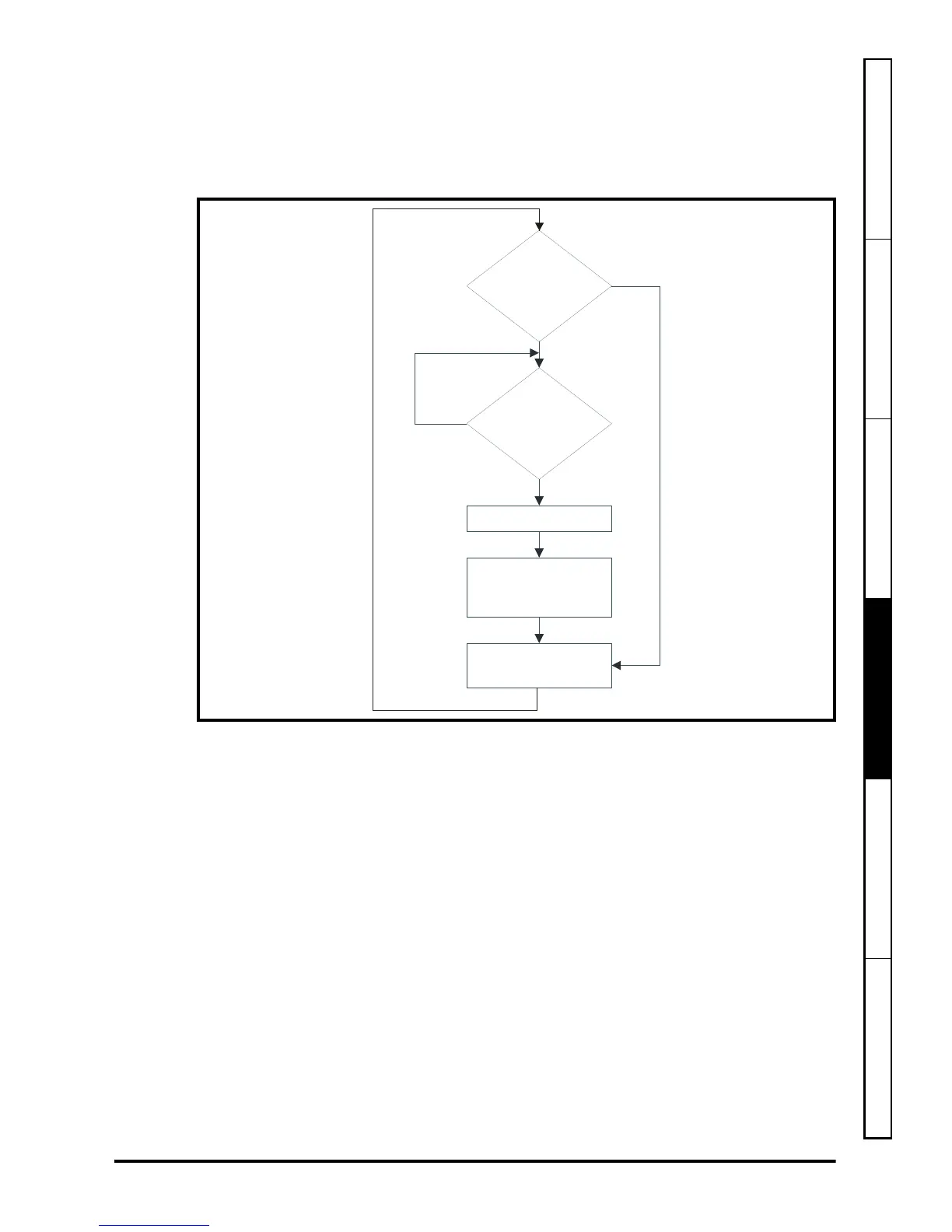

Figure 4-13 Soft start control circuit sequencing
The above sequencing can be achieved using the drive internal function blocks as
shown in Figure 4-14 on page 28.
Yes
Is the drive powered
from LVDC ?
(Read Pr
6.44
)
Yes
Is the drive in
UV state?
(Read Pr
10.16
)
No
No
Close the drive
relay
(soft start resitor
out of circuit)
Wait 2.5.s
Allow drive
enable
(write 1 to Pr
6.15
)
To Next Page
