PLANAR POSITIONING OPTIONS
Adjustable Firm Lateral Thoracic Supports
3. Innermost Position: Using Allen wrench, unscrew the foam pad. Fig. 123
Unscrew the lateral brace and rotate it so that the ling side of the brace is flat on the
seat back and the short side is perpendicular to the seat as shown. Reattach the lateral
brace Fig. 124 Screw the lateral foam pad back on the inside of the brace, leaving it
slightly loose to allow for adjustments, and then tighten. Fig. 125

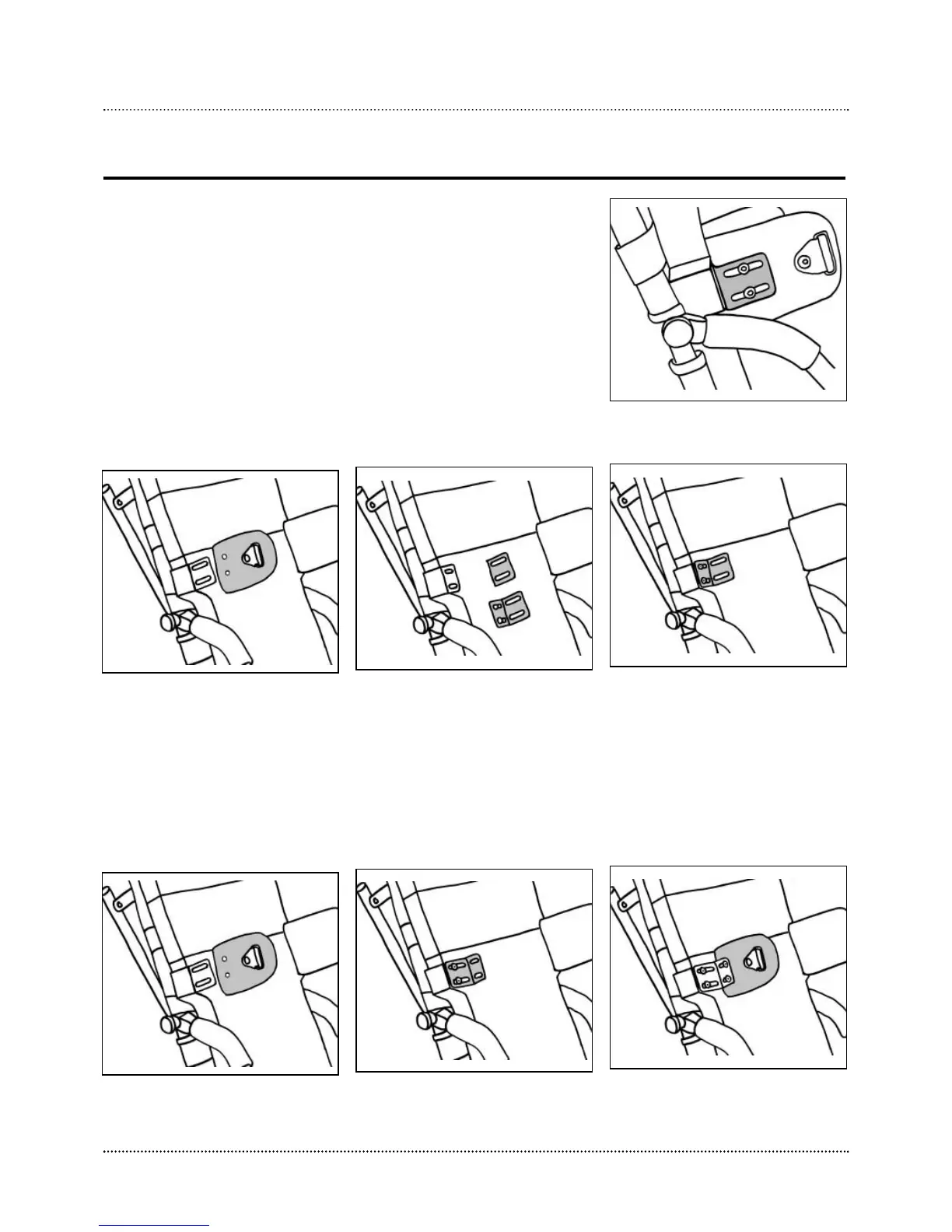

Fig.119
Fig.121
Fig.122
Fig.120
Fig.124
Fig.125
Fig.123
Firm laterals provide solid support for positioning the
trunk. The lateral supports can be set in 3 positions:
1. Outermost Position: Laterals are installed at the furthest
point outwards – as shipped. Fig. 119
2. Midline Position: Use Allen wrench to unscrew the foam
pad. Fig. 120 Unscrew the lateral brace and rotate it so
that the short side of the brace is flat on the seat back
and the long side is perpendicular to the seat as shown.
Fig. 121
Screw the lateral brace back onto the planar back.
Fig. 122 Reattach the foam pad to the brace.
