Battery Charging
If it is not possible to charge the battery with the control’s
built-in charger, a KME5-60-1 (120 VAC) portable bench
type battery charger kit is available, which includes the
KA43ME7001 Battery Charger (Figure 49) and the KME5-
325-1 Adapter Cable. Refer to S280-79-14 KA43ME7001
Portable Lead Acid Battery Charger Instructions for addi-
tional information.
Charge the battery with a KA43ME7001 (120 VAC) porta-
ble charger as applicable:
• Form 6 Pole-mount Recloser Control (Standard
Capacity) – Connect the battery directly to the
KA43ME7001 charger. The charger continuously
monitors the battery voltage.
• Form 6 Pole-mount Recloser Control (High Capacity)
– Use adapter KME5-325-1 to connect the two 12 volt
batteries to the KA43ME7001 charger.
Note: A yellow LED indicator on the body of the charger
illuminates when charging. A green LED indicator
illuminates when the charge is complete.
The charger senses when the battery voltage reaches 2.27
volts per cell, then the charge rate reduces to maintain a
trickle charge.
The yellow LED flickers to indicate the battery has reached
a full charge. This process can take up to 24 hours.
Refer to Table 14 for additional battery charging
accessories.
S280-70-3
51
IMPORTANT: Never connect a single 12 volt battery to
the KA43ME7001 charger. Use adapter KME5-325-1
with the battery assembly when connecting the charger
to the two 12 volt batteries.
Description Catalog Number
120 VAC Battery Charger Accessory ......... KME5-60-1
TABLE 14
Battery Charging Accessories
IMPORTANT: Do not attempt to charge a lead acid
battery below 2 VDC with the KA43ME7001 charger.
The charger requires a minimal voltage to sense a
battery is connected.
If the lead acid battery is below 19 VDC for over 2 days,
replace the battery. The expired battery should be
disposed of in an environmentally responsible manner.
Consult local regulations for proper battery disposal.

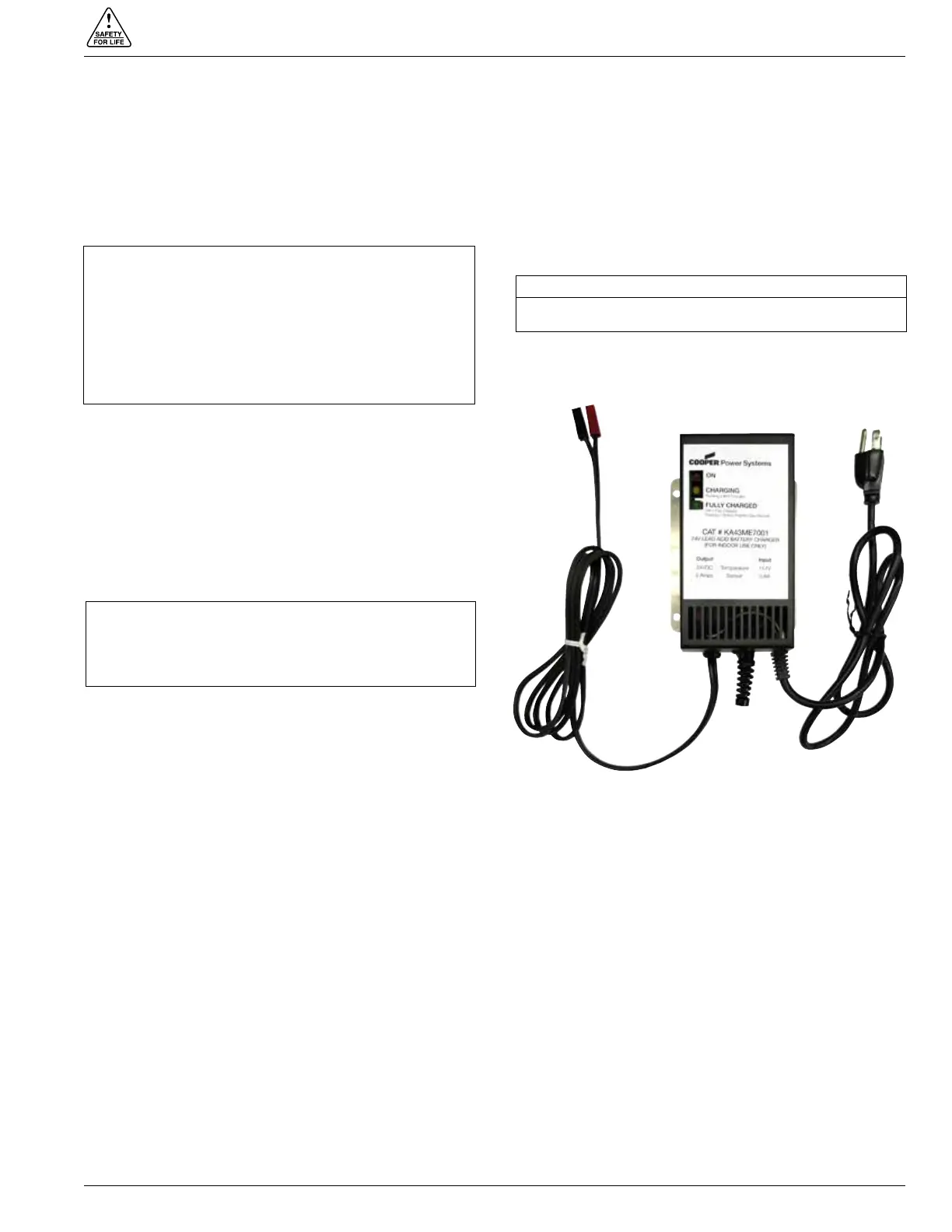

Figure 49.
KA43ME7001 Battery Charger.
