Cooper Power Systems Form 6 Series User Manual

S280-70-3
41
BCT Terminal Blocks Accessory
The BCT Terminal Blocks (Figure 31) attach to the back of
the control and provide a connection point for external
600:5 or 1200:5 multi-ratio bushing current transformers.
BCT Terminal Blocks are available for both the load or
source sides and include wire for all ratios of the BCT.
Refer to Table 10.
Auxiliary Terminal Block Accessory
An auxiliary terminal block and receptacle is available for
three-stage auxiliary switch wiring. Refer to Table 10.
Cabinet Ordering Accessories
• AISI 304 stainless steel cabinet construction
• Three-point door latch
Description Catalog Number
BCT shorting-type terminal block
for (LOAD) bushings 2, 4, 6 ......... KME6-1773-A
BCT shorting-type terminal block
for (SOURCE) bushings 1, 3, 5 ....... KME6-1773-B
Terminal block and receptacle for
wiring of three-stage auxiliary
switch, KA542R3 ................. KME6-1801-1
TABLE 10
Terminal Blocks
1
43
2
7
1211
109
8
56
1
65
43
2
Customer Connections
TB7
120/240
NEU
NEU
120 (L1)
120
(L2)
GROUND
X5
X4 1
X3
X2
X1
GROUND
X5
X4 5
X3
X2
X1
TB8
GROUND
X5
X4 3
X3
X2
X1

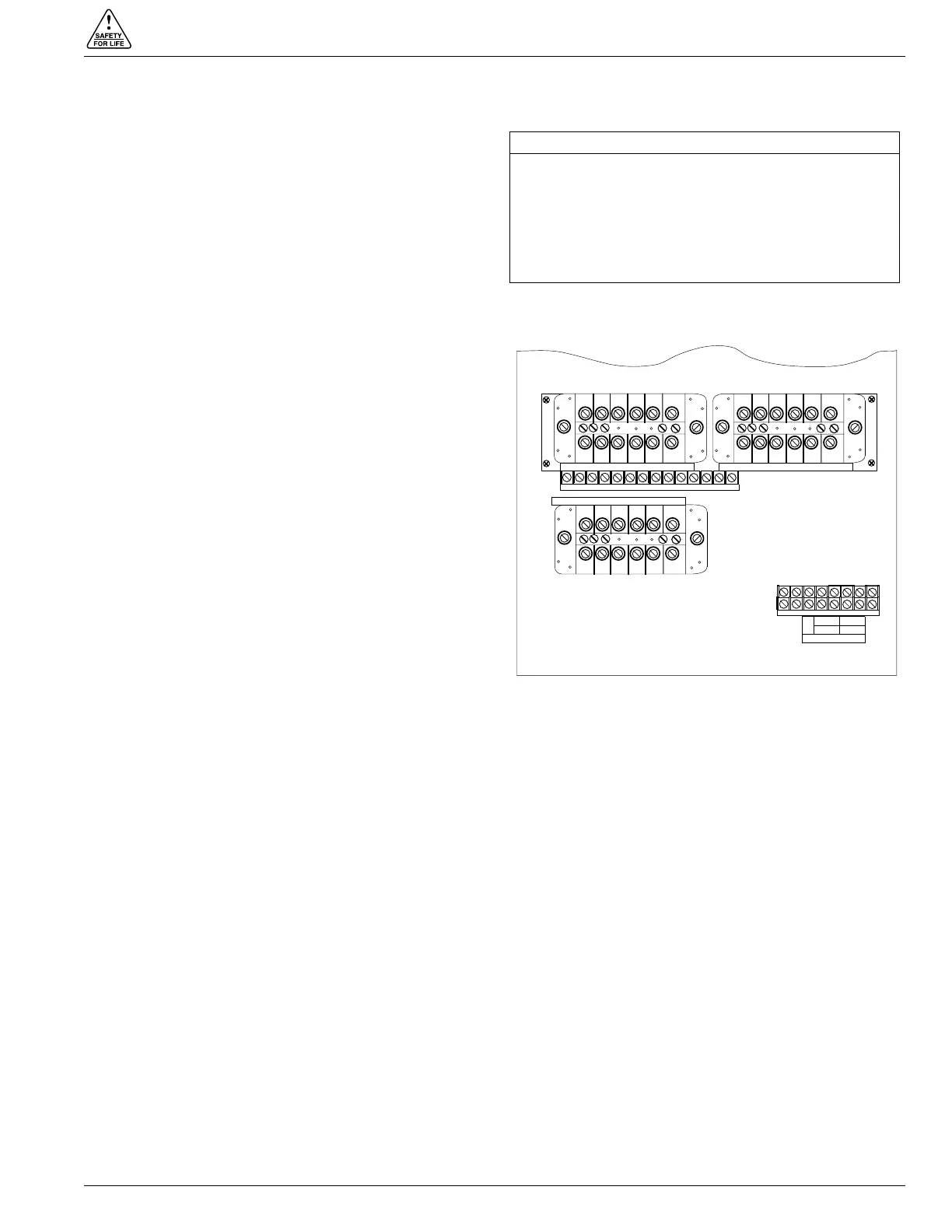

Figure 35.
Form 6 pole-mount recloser control BCT terminal
block accessory.
