All Form 5 and Form 6 recloser controls that have the
control-powered interface with serial numbers over those
shown in Table 16 are VTC-ready. Catalog numbers for
these controls begin with KME5B, KME5D, KME6P2B, or
KME6PBLS. These controls have a 19-pin control cable
receptacle and can be identified by the following label dis-
played on the bottom of the control cabinet, as shown in
Figure 51.
Note: VTC-ready controls can also be used with control-powered
NOVA reclosers with serial numbers below 10,000.
VTC control retrofit kits are available for Form 5 or Form 6
recloser controls with serial numbers below those shown in
Table 16 to make these controls compatible with control-
powered NOVA reclosers that require a VTC interface.
Catalog numbers for these kits are listed in Table 17. To
order these kits or to obtain information on how to make a
Form 4C recloser VTC-ready, contact your Cooper Power
Systems representative.
S280-70-3
53
CONTROL VTC INTERFACE
Control Model Catalog No. Serial No.
Form 5 pole-mount control KME5B 12669
Form 5 LS control KME5D 2922
Form 6 pole-mount control KME6P2B 10015
Form 6 LS control KME6PBLS 10012
TABLE 16
Serial Number Break for VTC-Ready Recloser Controls
TABLE 17
Catalog Numbers for Control VTC Retrofit Kits

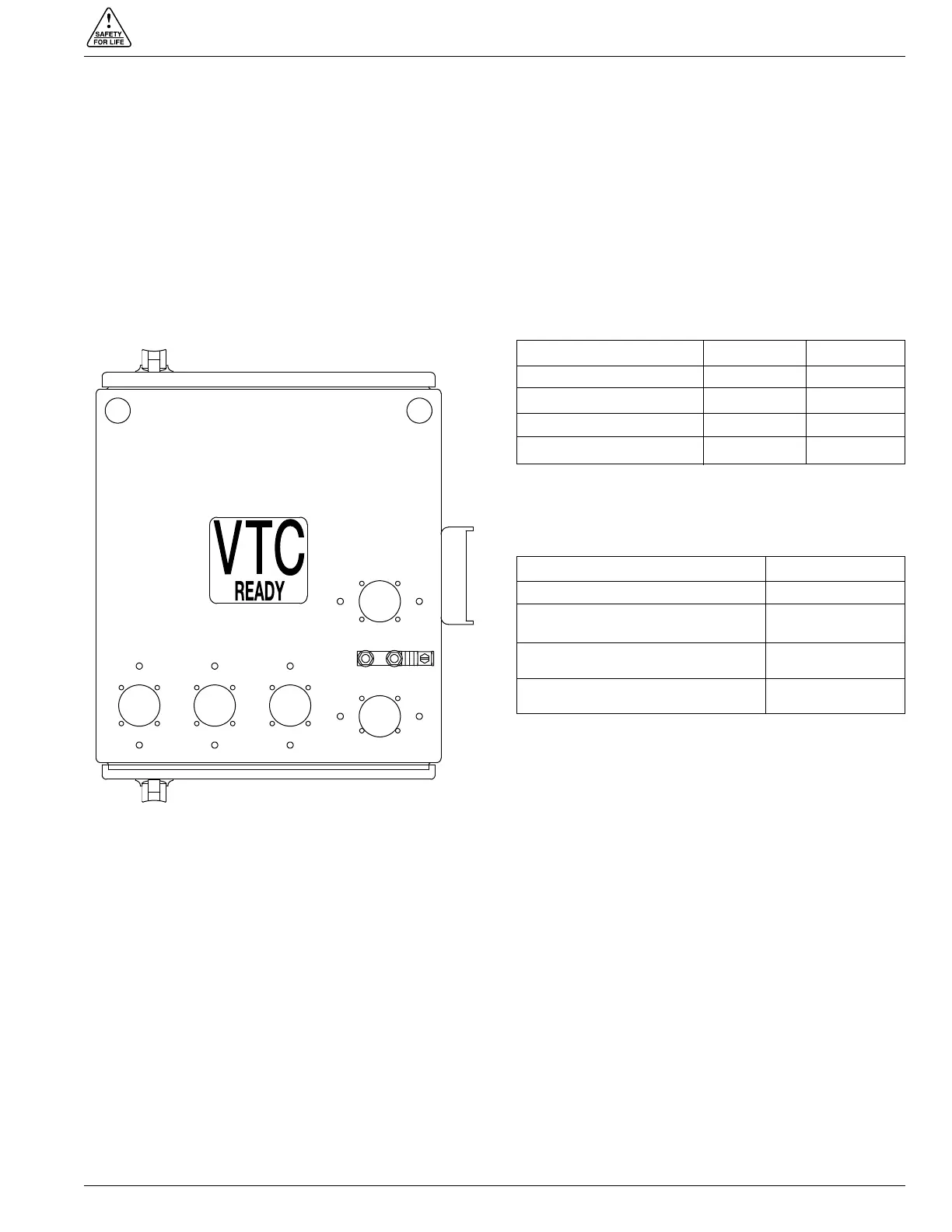

Figure 51.
Bottom view of Form 6 recloser control showing
location of VTC label.
Control Model Catalog No.
Form 5 KME5-728-1
Form 6
with serial number above 10,000 KME6-728-1
Form 6
with serial number below 10,000 KME6-728-2
Form 6 LS KME6-728-1
Note: Refer to the control nameplate for the serial number.
