Cooper Security 9751 - Figure 10. Sounder Connections

3. Installation 9751 Installation Guide
Page 20 11976798
To Bell Box
16 Ohm Loudspeaker
(2 Max. in parallel)
Internal Sounder
6-core
OP1
OP2
12V AUX
0V
TR
LS
+

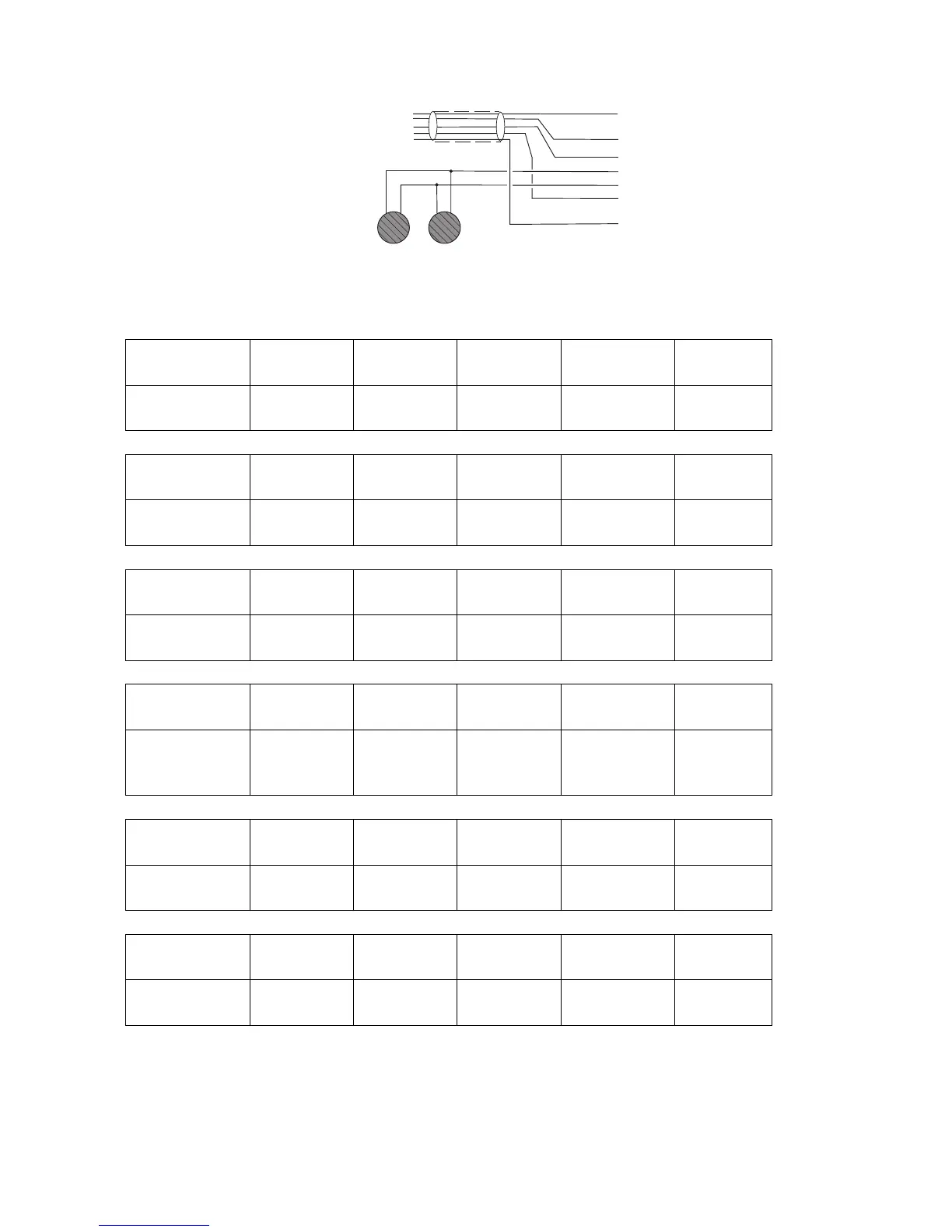

Figure 10. Sounder Connections
Lyntech Ltd - 120 LED/120 lexon
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
TRG STRB HOLD +
Elmdene Rapier 300, 4000, 5000, 6000; Prima 100-600; Starlight 020
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
-R -ST RTN +H -H
CQR Security - Sigma, Cequera, Plus and Ultima
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
SIREN
TRIG
STROBE
TRG
A/T RET
SIG
HOLD OFF
+VE
HOLD
OFF -VE
Ventcroft Security - Vision, Classic and Spirit
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
TRIG - STB - RTN HOLD OFF
+VE, STB
+VE
HOLD
OFF -VE
Flashguard - Xtra
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
TRIGGER STROB- SUPPLY - SUPPLY +
STROBE +
TAMP
OUT
Intellisense - AG3
Control Unit
Terminals
OP1 OP2 TR 12V AUX 0V
Bell-Box
Terminals
S- ST- TR V+ V-
