Cornelius CCM0330 - Undercounter bin Removal-CCU0300 Series

General Information
Page A16

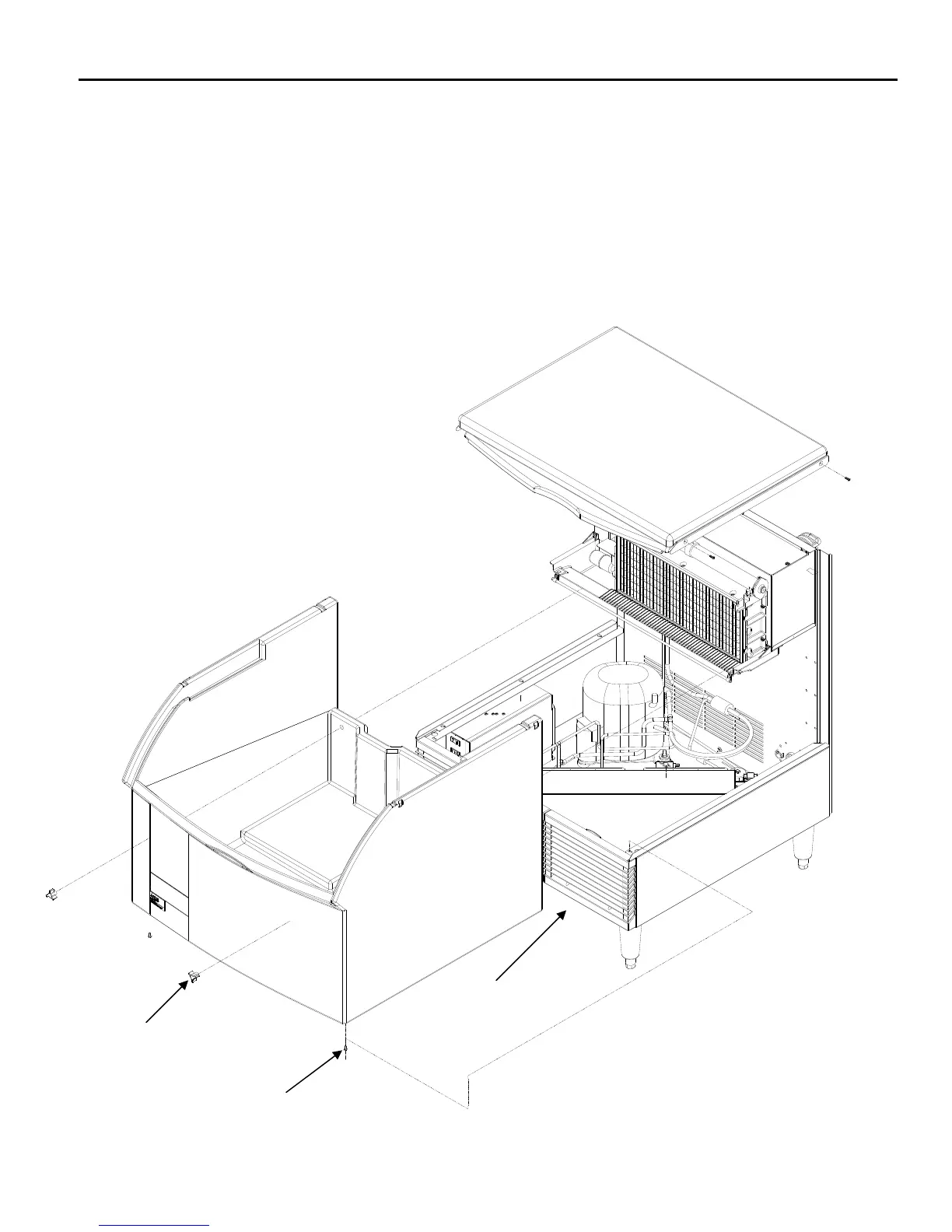

Undercounter Bin Removal-CCU0300 Series
The storage bin can be removed by:
1 Remove the lower grill.
2. Remove two screws securing bin to cabinet base.
3. Remove the thumbscrews from the back wall of the bin. 3. Remove the thumbscrews from the back wall of the bin.
4. Disconnect bin drain. 4. Disconnect bin drain.
5. Lift front of bin slightly and pull bin forward to remove. 5. Lift front of bin slightly and pull bin forward to remove.
1
2
3
