Water System
Page D2
Water Distribution Disassembly

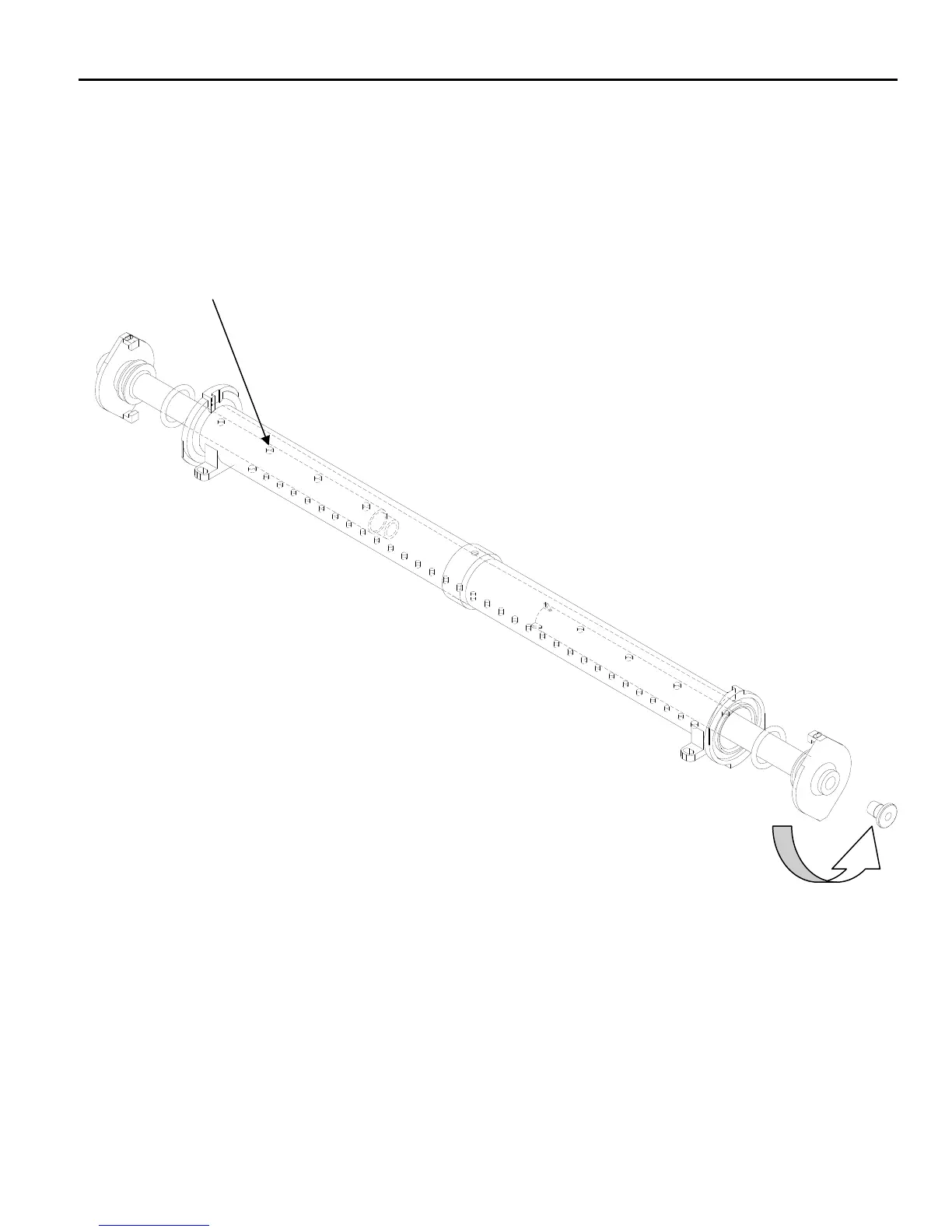

Remove 2 screws holding the distribution tube to the evaporator spillway. Remove the clamp
holding the water tube to the distribution tube. Twist the end caps of the distribution tube
counterclockwise and pull to remove the inner tube halves from the outer tube. To reassemble,
push the inner tube halves into the outer tube with the holes facing the same direction. Make sure
the inner tube halves seat together completely. Twist the end caps clockwise ½ turn to lock the
inner tubes in place. The holes in the tubes will now be facing in the opposite directions.
Important! For proper water flow over the evaporator, the inner tube holes must face up.
Turn counterclockwise to remove
