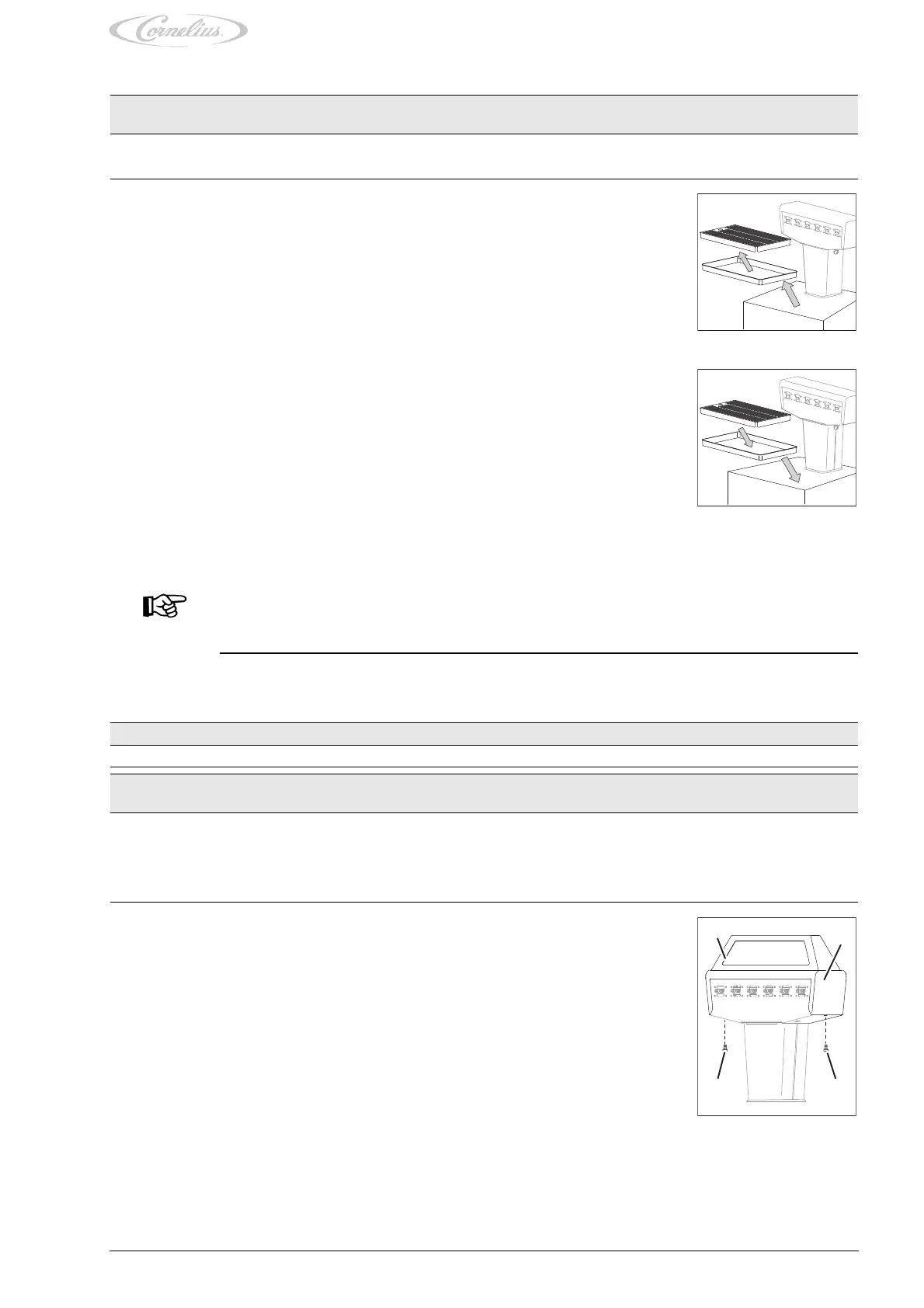

7.1 Replacing the drip tray and the grill
7.2 Replacing the dispensing valves
NOTICE!
Information regarding the replacement of the dispensing valves installed on your unit can be found in the bind-
ing documentation for the respective dispensing valve.
7.3 Replacing the taxi cab hood and the promotional sign
Spare parts ID/reference Qty/
amount
Comment
Drip tray incl. grill 149854401 1 Dimensions (L x W x H) 400 mm x 220 mm x 28 mm
149854601 1 Dimensions (L x W x H) 600 mm x 220 mm x 28 mm
1. Remove the grill from the drip tray.
2. Remove the drip tray from the unit.
Fig. 20
3. Position the new drip tray.
4. Insert the new grill in the drip tray.
Fig. 21
Prerequisites References
The unit has been disconnected from the power supply. see chapter 4.1
Spare parts ID/reference Qty/
amount
Comment
Taxi promotional sign 220097166S002 2 Neutral
Taxi cab hood 220097356 1 Smoothed
220097357 1 Polished
Double-sided tape Various
1. Remove the fastening bolts (Fig. 22/3) from the hood (Fig. 22/2).
2. Lift and remove the hood (Fig. 22/2) with taxi cab hood (Fig. 22/1) from the unit.
Fig. 22
