Cornelius Nueva Tower - 3 Description; Tower; Dispensing Valves

Description
Cornelius Deutschland GmbH
Document no. TD0003100
Version 18/03/2019, Index 0
Installation and service manual Tower
Nueva
5
3 Description
3.1 Tower

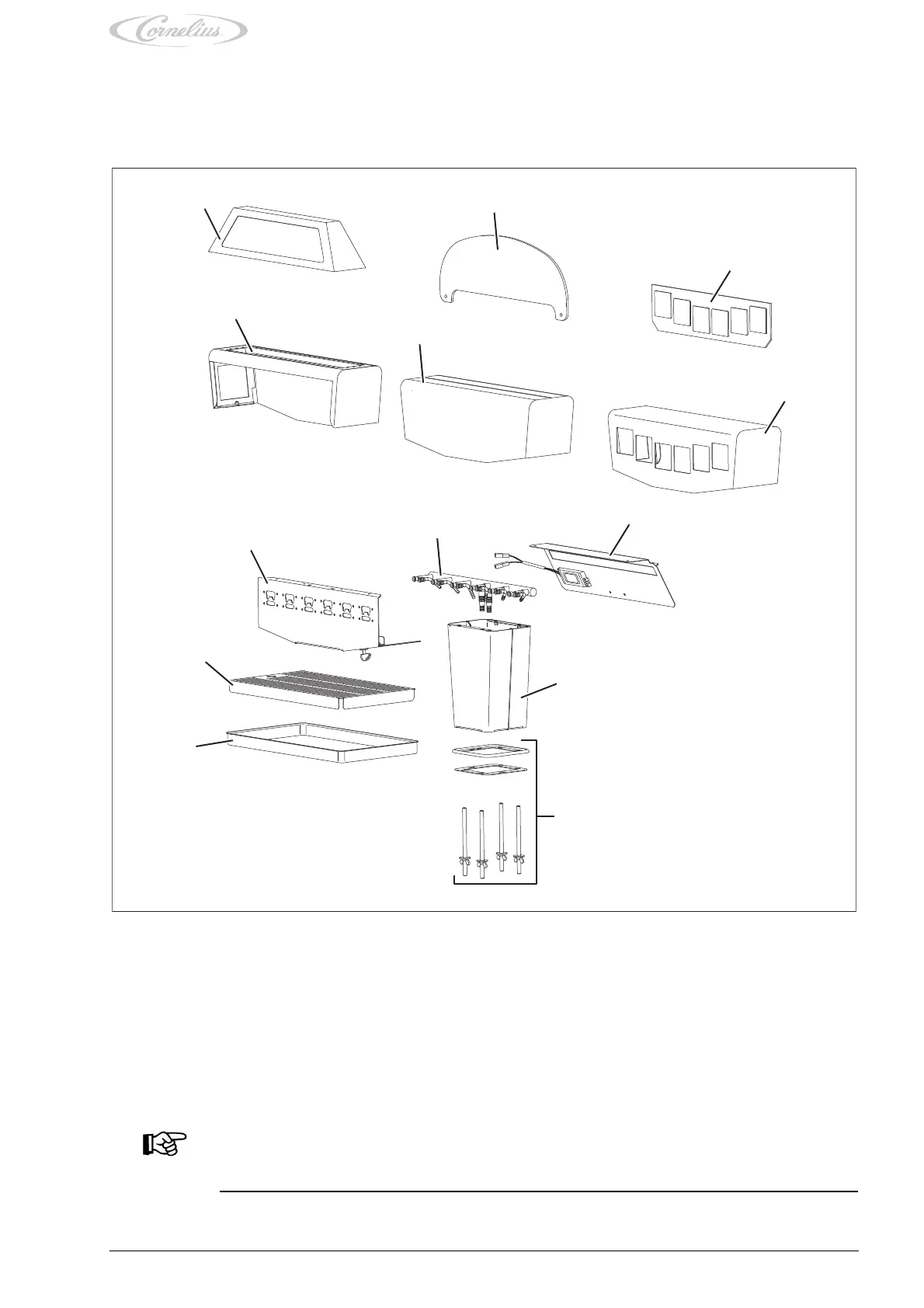

The unit comprises the following assemblies:
Fig. 1
3.2 Dispensing valves
NOTICE!
Information on the dispensing valves installed on your unit can be found in the binding documentation for the
respective dispensing valve.
1
2
3
4
9
10
11
8
7
13
12
5
6
1 Taxi cab hood with promotional sign
2 Moonlight disc
3 Plexiglas sheet for the product labels
4 Hood for the product labels
5 Hood for the moonlight disc
6 Hood for the taxi cab hood with promotional sign
7 Dispensing valve support
8 Soda dispenser (optional)
9 Lighting kit
10 Stand
11 Counter mounting kit
12 Drip tray
13 Grill
