Cornelius Nueva Tower - Replacing the LED Strip and the Voltage Transformer

Repairs
Cornelius Deutschland GmbH
Document no. TD0003100
Version 18/03/2019, Index 0
Installation and service manual Tower
Nueva
21

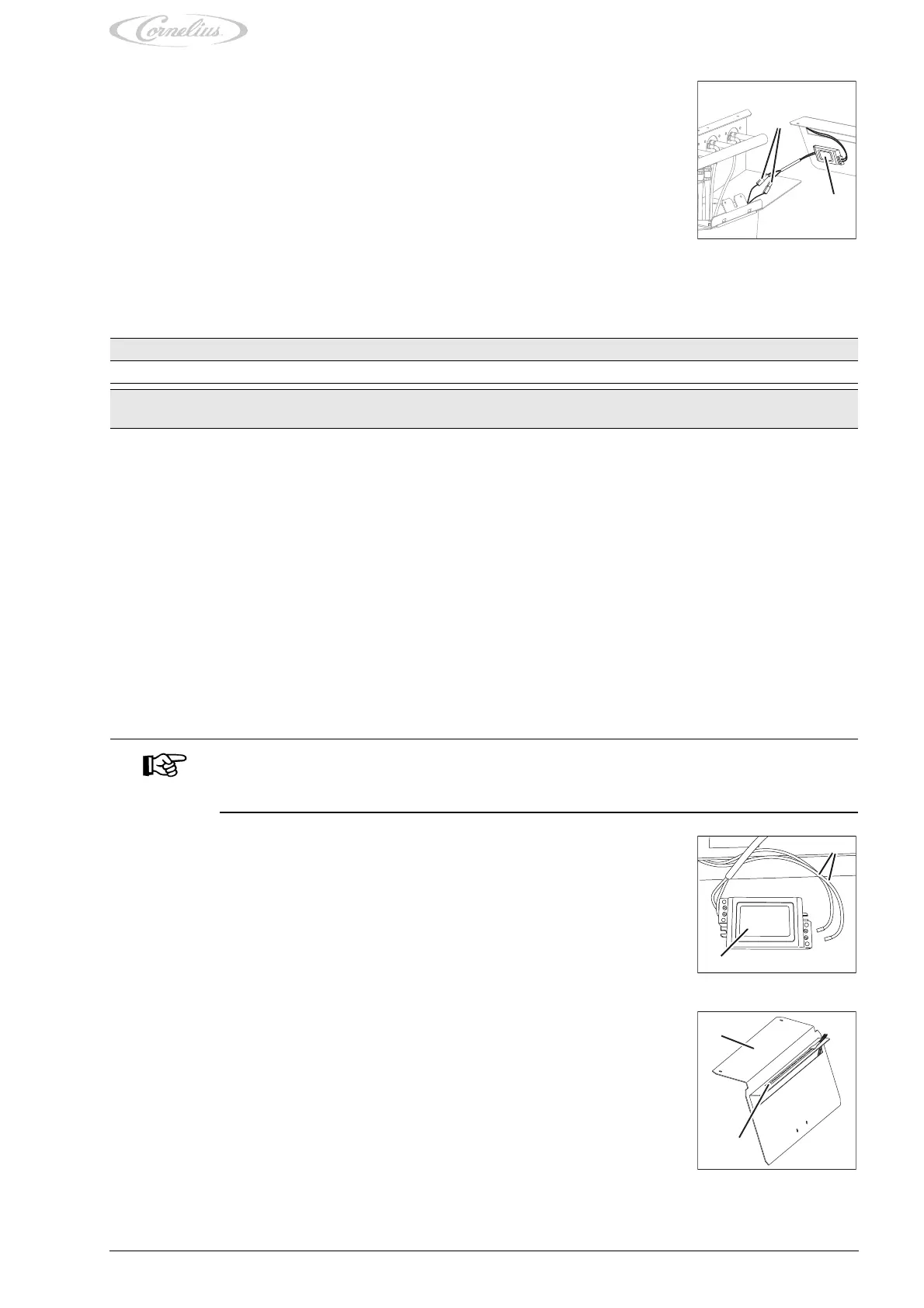

7.8 Replacing the LED strip and the voltage transformer
NOTICE!
Multiple LED strip variants are available for illuminating the promotional displays of the unit. Replacing the LED
strip and voltage transformer is identical for all variants and is described here using an example.
3. Disconnect the plugs (Fig. 34/1) for the electrical cable (cable no. 220046597) of the voltage
transformer (Fig. 34/2).
4. If necessary, replace the LED strip and the voltage transformer; see chapter 7.8.
5. Connect the plugs (Fig. 34/1) for the electrical cable (cable no. 220046597) of the voltage
transformer (Fig. 34/2).
6. Position the retaining plate (Fig. 33/2) on the unit.
7. Attach the retaining plate (Fig. 33/2) using the fastening bolts (Fig. 33/1).
Finishing tasks
1. Install the hood; see chapter 7.6.
Fig. 34
1
2
Prerequisites References
The lighting kit has been removed. see chapter 7.7.
Spare parts ID/reference Qty/
amount
Comment
LED strip
(length: 350 mm)
220112125 1 – Taxi cab hood with promotional sign, 5 - 8 dispens-
ing valves
– Moonlight disc, 5 - 8 dispensing valves
– Product labels, 6 dispensing valves
LED strip
(length: 2 x 350 mm each)
220113473 1 – Taxi cab hood with promotional sign and product la-
bels, 5 + 6 dispensing valves
– Moonlight disc and product labels, 5 + 6 dispensing
valves
LED strip
(length: 450 mm)
220112038 1 – Product labels, 8 dispensing valves
LED strip
(length: 350 mm)
220113474 1 – Taxi cab hood with promotional sign and product la-
bels, 8 dispensing valves
– Moonlight disc and product labels, 8 dispensing
valves
(length: 450 mm) 1
Voltage transformer 141647698 1
Velcro tape Various
1. Disconnect the electrical cables (cable no. 220112125) (Fig. 35/2) of the LED strip from the
voltage transformer (Fig. 35/1).
Fig. 35
2
1
2. Remove the LED strip (Fig. 36/2) from the retaining plate (Fig. 36/1).
3. Remove any adhesive residue from the retaining plate (Fig. 36/1).
Fig. 36
2
1
