Cornelius Nueva Tower - Replacing the Plexiglas Sheet for the Product Labels

Repairs
Cornelius Deutschland GmbH
Document no. TD0003100
Version 18/03/2019, Index 0
Installation and service manual Tower
Nueva
19

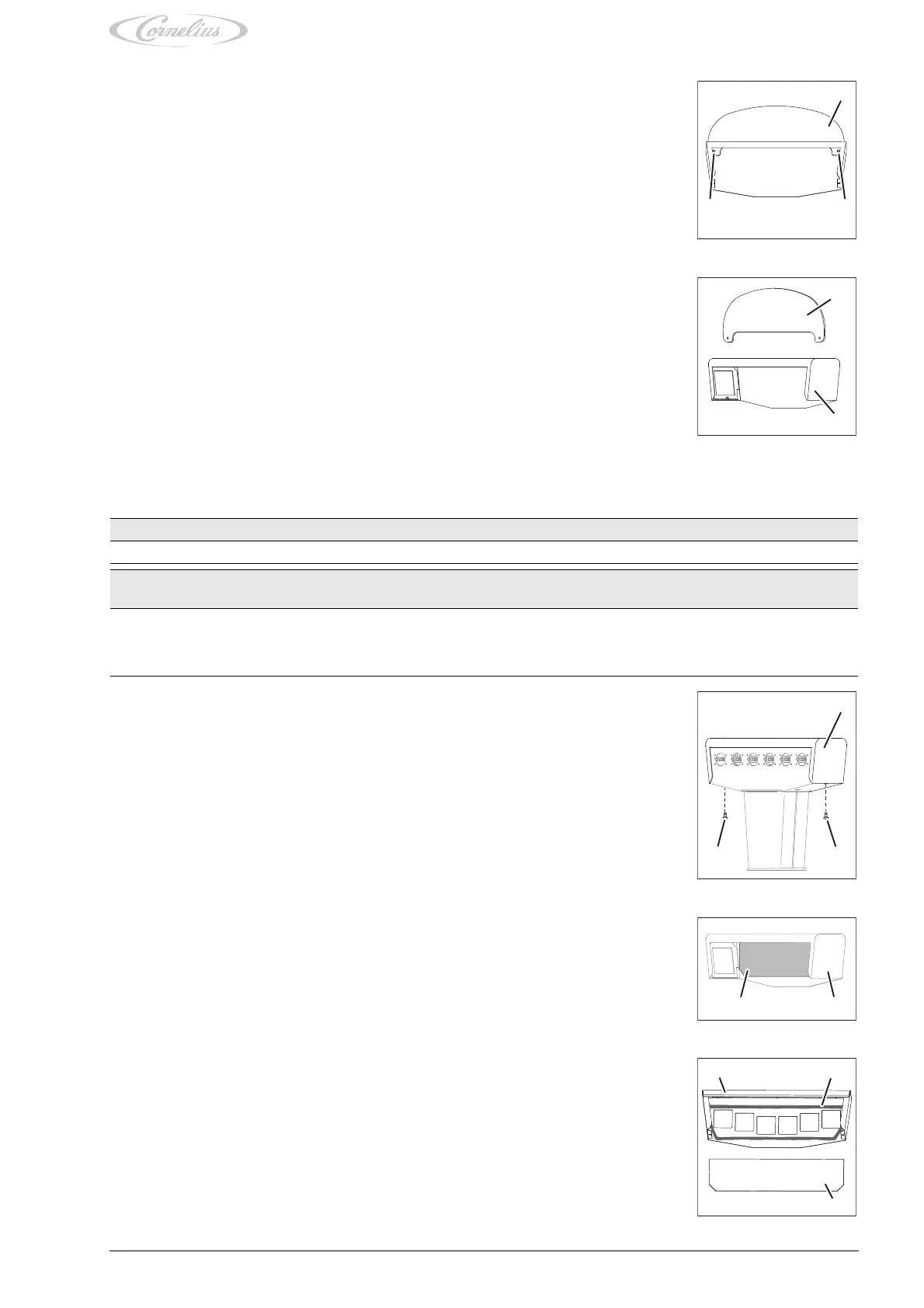

7.5 Replacing the Plexiglas sheet for the product labels
3. Remove the fastening bolts (Fig. 27/2) from the moonlight disc (Fig. 27/1).
Fig. 27
1
2 2
4. Lift and remove the moonlight disc (Fig. 28/1) from the hood (Fig. 28/2).
5. If required, attach new mounting brackets (Fig. 27/2) within the hood (Fig. 28/2) using double-
sided tape.
6. Position the new moonlight disc (Fig. 28/1) on the hood (Fig. 28/2).
7. Attach the moonlight disc (Fig. 27/1) using the fastening bolts (Fig. 27/2).
8. Position the hood (Fig. 26/2) with moonlight disc (Fig. 26/2) on the unit.
9. Attach the hood (Fig. 26/2) using the fastening bolts (Fig. 26/3).
Fig. 28
1
2
Prerequisites References
The unit has been disconnected from the power supply. see chapter 4.1
Spare parts ID/reference Qty/
amount
Comment
Plexiglas sheet 220096741 1 6 product areas for 5 + 6 dispensing valves
220097370 1 8 product areas for 8 dispensing valves
Double-sided tape Various
1. Remove the fastening bolts (Fig. 29/2) from the hood (Fig. 29/1).
2. Lift and remove the hood (Fig. 29/1) from the unit.
Fig. 29
1
22
3. Remove the Plexiglas sheet (Fig. 30/2) from the hood (Fig. 30/1).
Fig. 30
2 1
4. Remove any adhesive residue from the hood (Fig. 31/1).
5. Apply fresh double-sided tape along the adhesive area (Fig. 31/2) inside the hood (Fig. 31/1)
6. Position the new Plexiglas sheet (Fig. 31/3) in the hood (Fig. 31/1).
7. Press the Plexiglas sheet (Fig. 31/2) into the hood (Fig. 31/2).
8. Position the hood (Fig. 29/1) with Plexiglas sheet (Fig. 29/2) on the unit.
9. Attach the hood (Fig. 29/1) using the fastening bolts (Fig. 29/2).
Fig. 31
1
3
2
