Cornelius Nueva Tower - Removing the Unit

Installation/removal
Cornelius Deutschland GmbH
Document no. TD0003100
Version 18/03/2019, Index 0
Installation and service manual Tower
Nueva
11

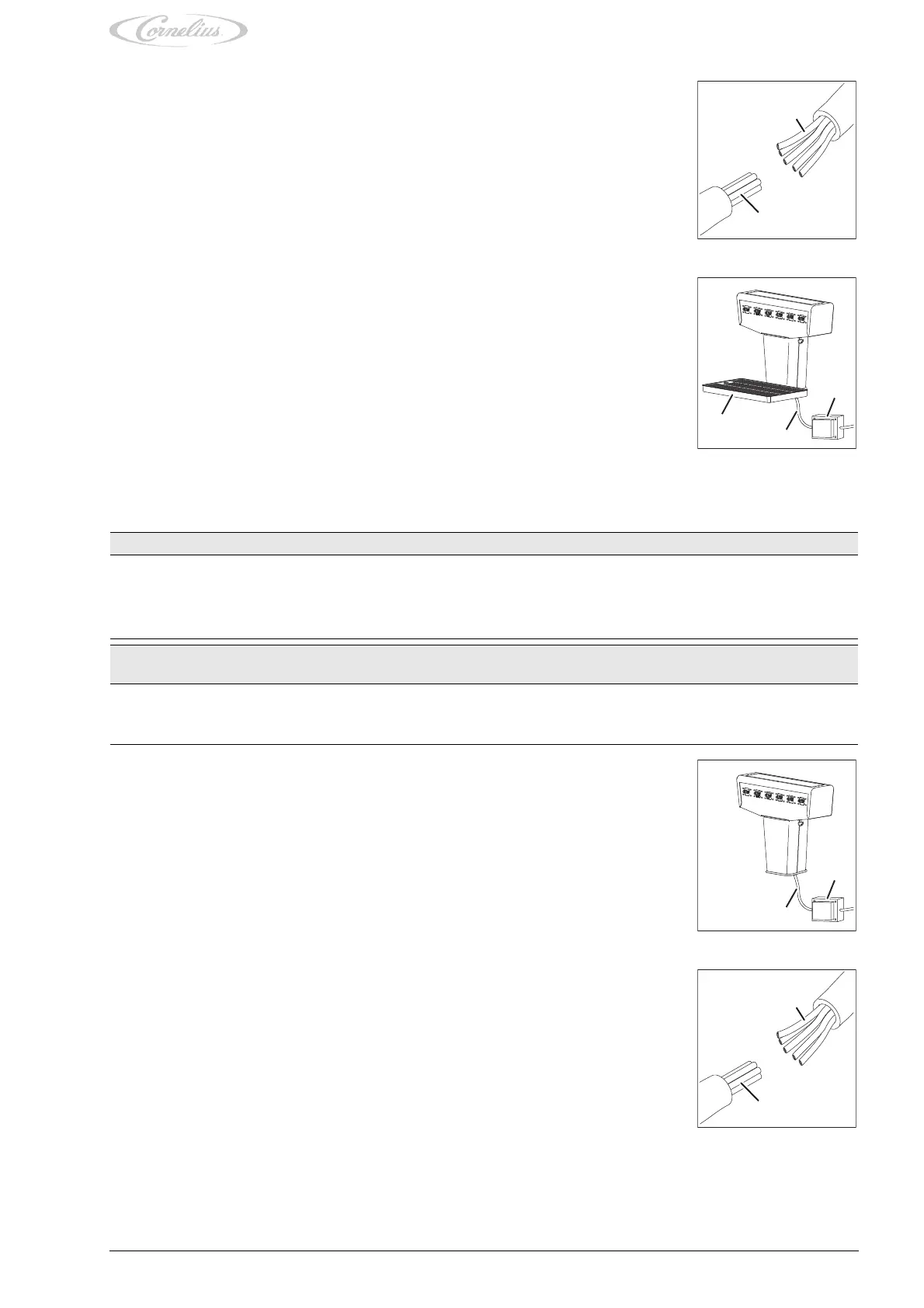

5.4 Removing the unit
7. Remove the caps from all tubes.
8. Connect all tubes (Fig. 8/1) to the python (Fig. 8/2).
Observe the labels on each individual tube as you connect the tubes.
9. Properly insulate the tubes.
Fig. 8
1
2
10. Position the drip tray (Fig. 9/3) with grill on the unit; see chapter 7.1.
11. Connect the electrical cable (Fig. 9/2) (cable no. 220097434) to the transformer (Fig. 9/1) in
the undercounter cooler.
12. Put the unit into service (“commissioning”); see chapter 8.1.
Fig. 9
1
3
2
Prerequisites References
The undercounter cooler has been shut down. See the document “Undercounter cooler installation and ser-
vice manual”
The unit has been shut down. see chapter 4.1
The drip tray has been removed. see chapter 7.1
Required tools/materials ID/reference Qty/
amount
Comment
Tower cable diagram 220046720 1 see chapter 11.1
Undercounter cooler installation and
service manual
Document no.
Various
1
1. Disconnect the electrical cable (Fig. 10/2) (cable no. 220097434) on the transformer (Fig. 10/
1) in the undercounter cooler.
Fig. 10
1
2
2. Disconnect all tubes (Fig. 11/1) from the python (Fig. 11/2).
3. Attach a cap to each tube.
Fig. 11
1
2
