34 6 PARTS IDENTIFICATION AND FUNCTIONS

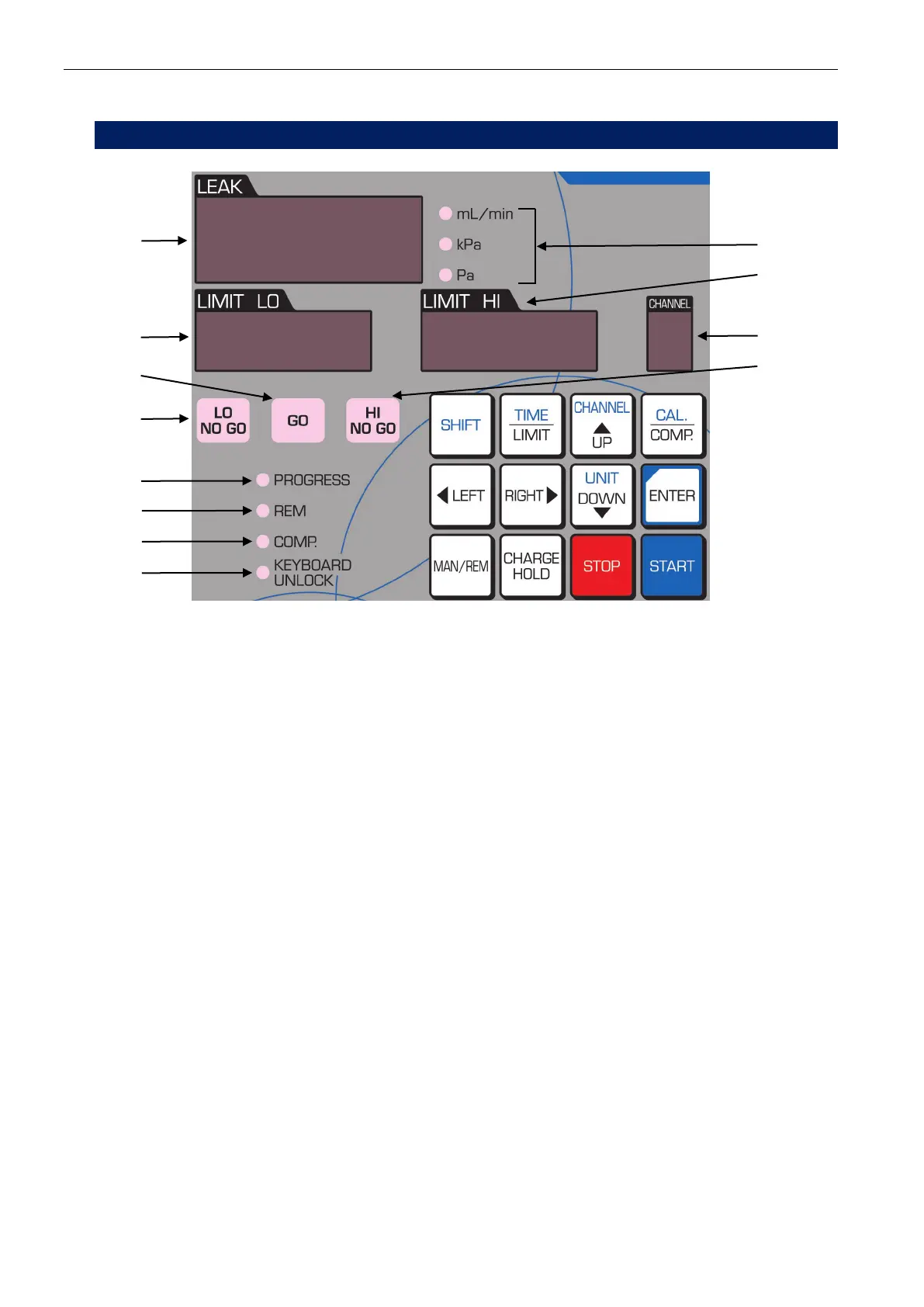

6.1.1 Indicators
A Leak rate indicator
B Leak rate LO limit indicator
MASTER-side limit setting
C GO LED lamp
Acceptance judgement lamp
D LO NO GO LED lamp
Master failure judgement lamp
E PROGRESS LED lamp
Indicates a stage when on or blinking.
F REM LED lamp
On when in remote; off in manual.
G COMP LED lamp
On when Master-Preset compensation is on.
H KEYBOARD UNLOCK lamp
On when the keyboard is unlocked.
I Leak unit LED lamp
Switched between mL/min and min as standard; kPa available as an option.
J Leak rate HI limit indicator
WORK-side limit setting
K Channel number indicator
L HI NO GO LED lamp
Tested part failure judgement lamp
