Cosmo LS-1866 User Manual

68 11 INTERFACE

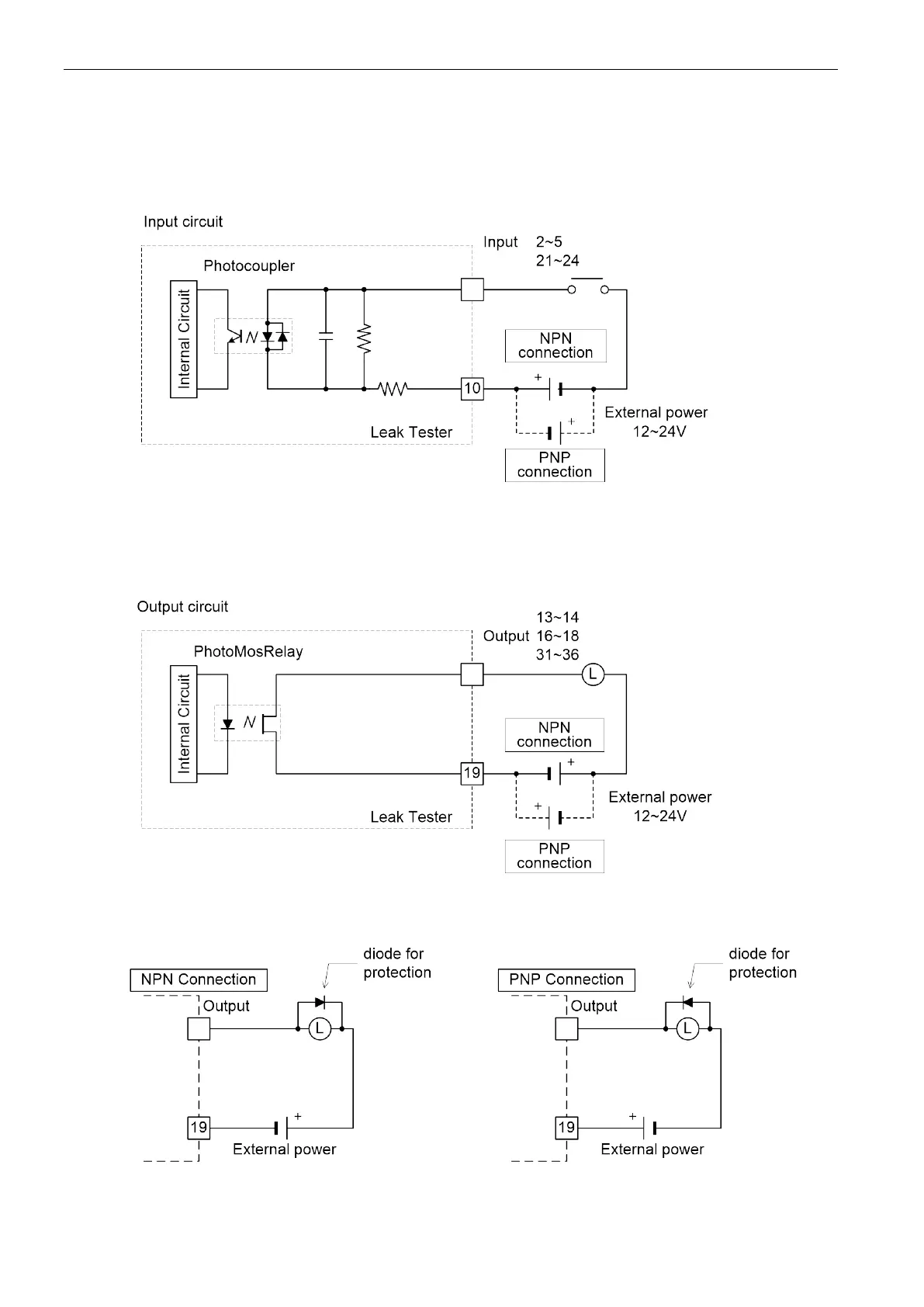

d) Input
Photocoupler diode input: 2 groups
Input impedance: 3.3 kΩ
Input current: 7 mA typ. (24 VDC)
Connection method
e) Output
Open collector output
Load current:100 mA (at 24 VDC). Load when the sum of pins#12 to #18 is 200 mA or less and the
sum of pins #31 to #36 is 200 mA or less.
ON voltage: 2 VDC max.
Connection method
f) Protection of Output Load
When using the output induction load (such as relay, monitor etc), please arrange the diode for
protection.
