PS-7 Manual

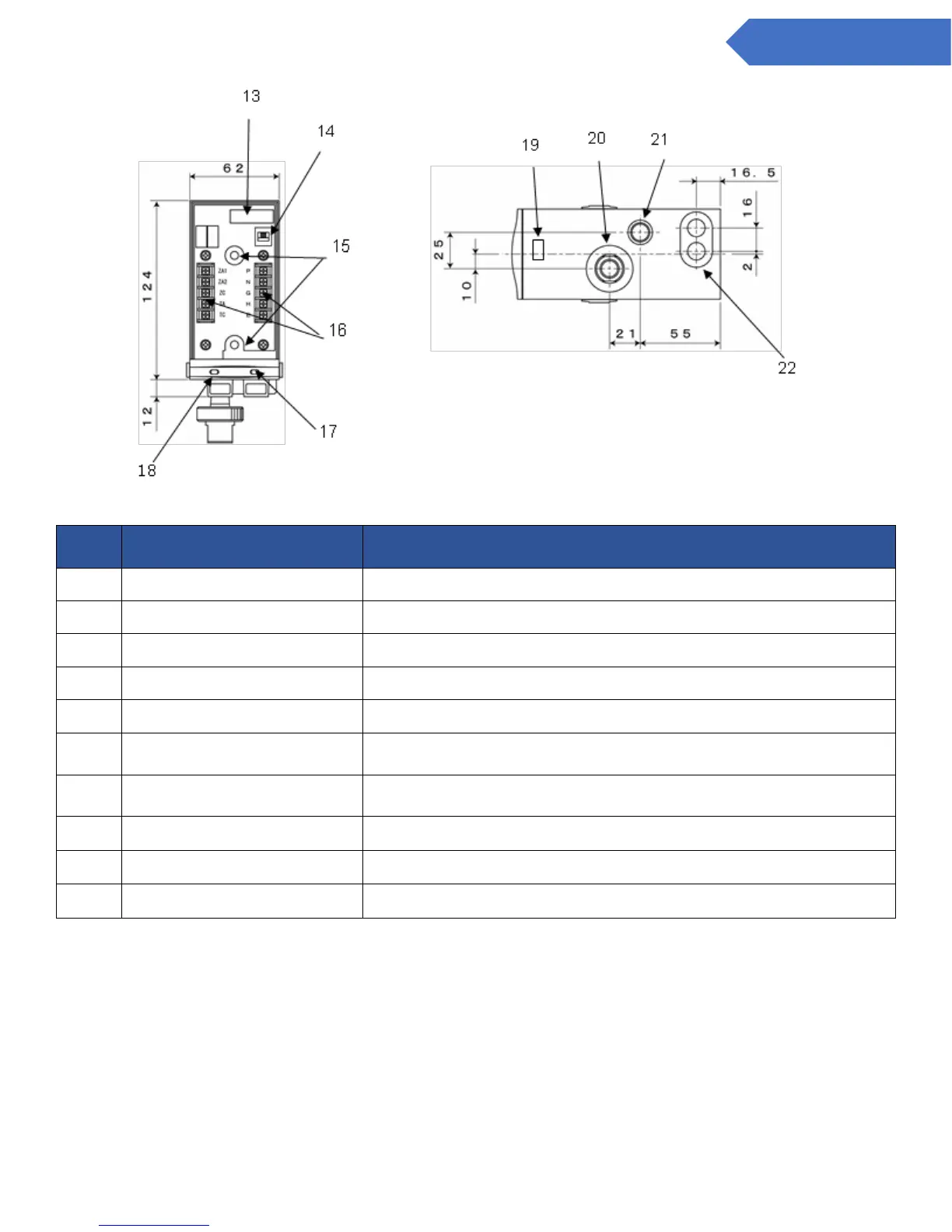

No.
Description
Function
13
Fuse
125 V, 0.5 A
14
Base unit power switch
The power switch for the base unit.
15
Mounting holes
Screw holes (5.5) for wall mounting.
16
Terminal strip
Used to connect external wiring.
17
Main unit power switch
The power switch for the main unit.
18
Maintenance switch
A switch that is set to regular, maintenance mode 1 (MNT1) or
maintenance mode 2 (MNT2).
19
Connector for the pyrolyzer
A connector to provide power to the pyrolyzer when one is being
used. (CDP-7 type).
20
Gas inlet
Aspiration inlet for sampled gas. A filter unit (MF-50) is attached.
21
Gas outlet
Exhaust outlet for sampled gas.
22
Cable entry
A hole for incoming cables.
