Note: The PF and Q value can be adjusted by remote software if the
“Remote” setting is selected.
1. PFSetValue：Set the PF value. This function changes the reactive
power by adjusting the Power Factor.
2. PFpCurve functions：PFp curve mode. Using the curves to set the
PFp setpoints (See Figure 6-6).
PF
(P%)
1
(PFCurveP1,PFpCurvePF1)
(PFCurveP2,PFpCurvePF2)
Inductive
Capacitive
-1
-0.8
0.8
Figure 6-156 PF(P) Curve Mode

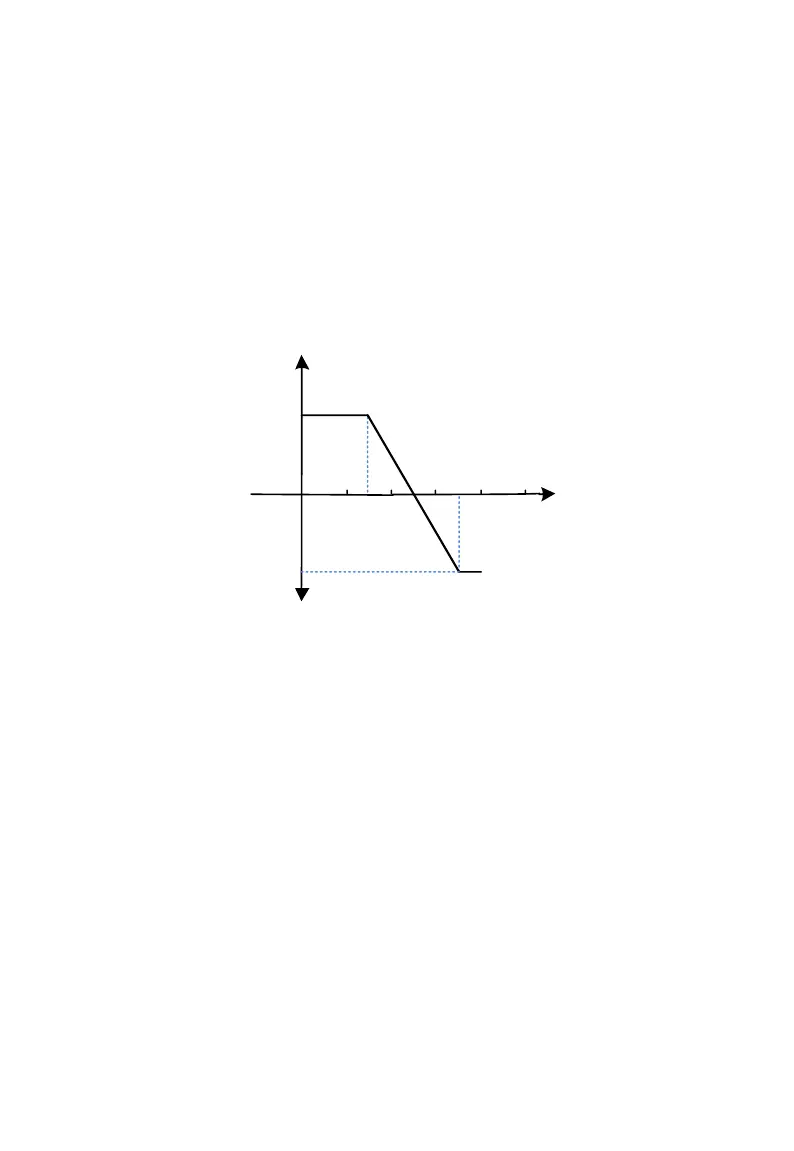

3. Q(U) Curve：Q(U) curve mode. Using the curves to set the reactive
power setpoints (See Figure 6-17). The reactive power compensation
changes according to the grid voltage.
