29
(b) Concrete Wall Mount: Drill holes at the marked positions with
a 0.4in. (10mm) masonry bit and insert M8 Expansion
Anchors into the holes (expansion anchors not provided);
Fasten the Mounting Bracket with the M8x25 Assembling
Bolts (not provided). Figure 3-7 and Figure 3-8. Tools
Required: Electric drill (Ф10mm/0.4in. masonry bit), No. 13
wrench

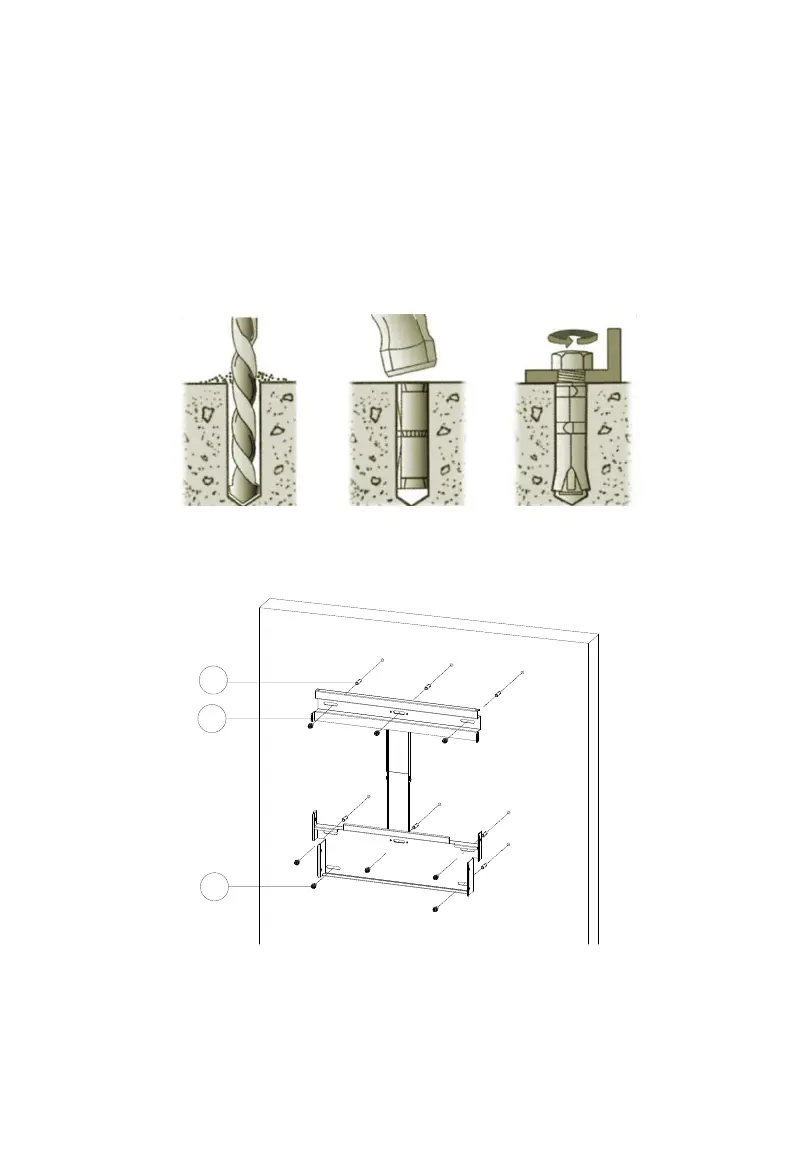

Figure 3-7 Drill holes, set Anchors, and tighten Assembly Bolts
1
2
3
Figure 3-8 Secure the Mounting Bracket
