46

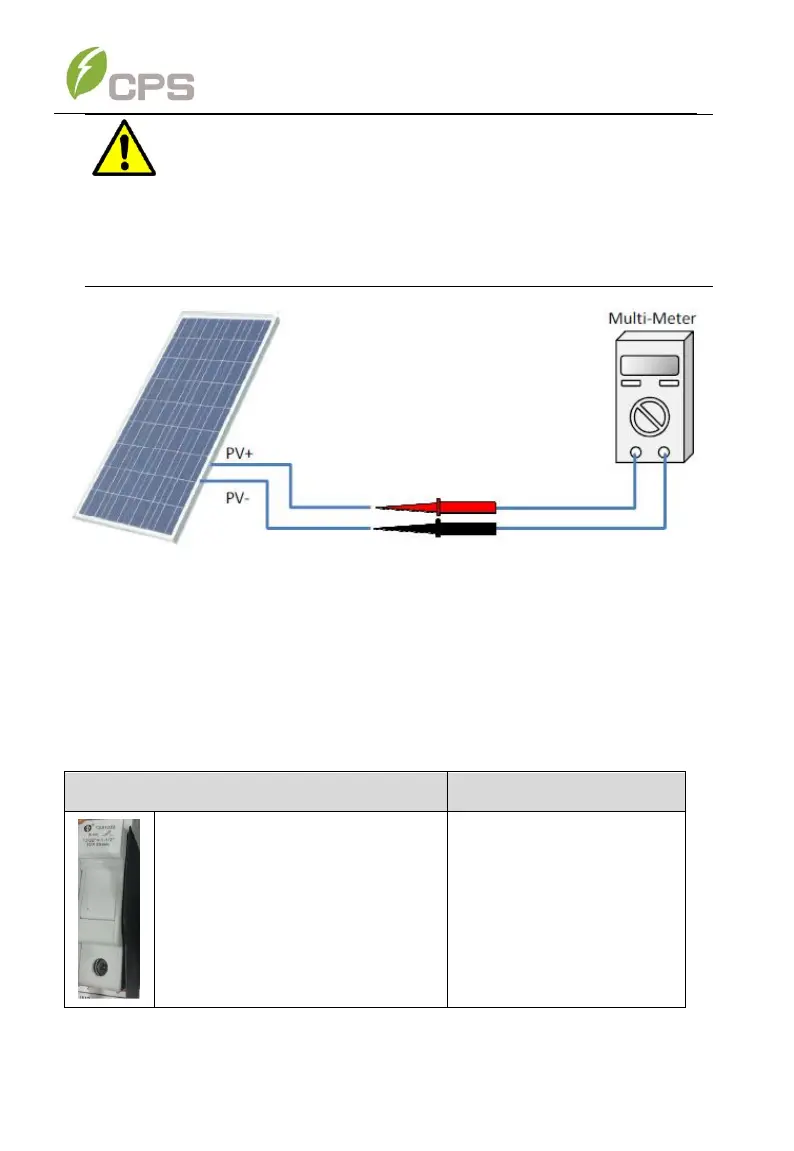

Figure 3-222 Polarity Check
3.3.3.4 DC Fuseholder Torque Specification
The inverter wiring box may be assembled using fuse holders supplied by
Sinofuse. The touch safe fuse holders have unique terminal torque values
specified by their manufacturers. See Table 3-6 for specified torque values.
Table 3-6 DC Fuse Holder and Busbar Torque Value by Manufacturer
Single Conductor Specified
Torque:
14-6AWG:
26 in-lbs (3.0Nm)
Single Conductor Specified
Torque:
14-6AWG:
26 in-lbs (3.0Nm)
WARNING:
A reversed string is not protected by the inverter and can cause
severe damage to equipment and personnel. A reversed string is
extremely hazardous and will result in a blown fuse when the
irradiation is high. The voltage across the blown fuse will be 2x Voc
and could prevent proper fuse operation resulting in a fire.
