47
WARNING:
Failure to apply proper torque to the fuse holder terminals may result in
an improper conductor termination and cause excessive heat or fire.
3.3.3.5 DC Connection for RSD Wirebox
1. Using the 1-1/2 inch openings. Remove the factory installed liquid-tight
hole plugs from the DC knockout holes in the wiring box and install 1-1/2
inch Trade Size conduit and conduit fittings. If the use of smaller conduit is
desired, proper weather-tight reducing bushings may be installed. Confirm
all fittings are NEMA 4X rated, properly tightened, and route the DC source
circuit conductors through the conduit into the wiring box.
DC INPUT
COMM. PORT
For more details please see the user manual.

WARNING:
High touch current .
Earth connection essential before connecting supply.
AC OUTPUT

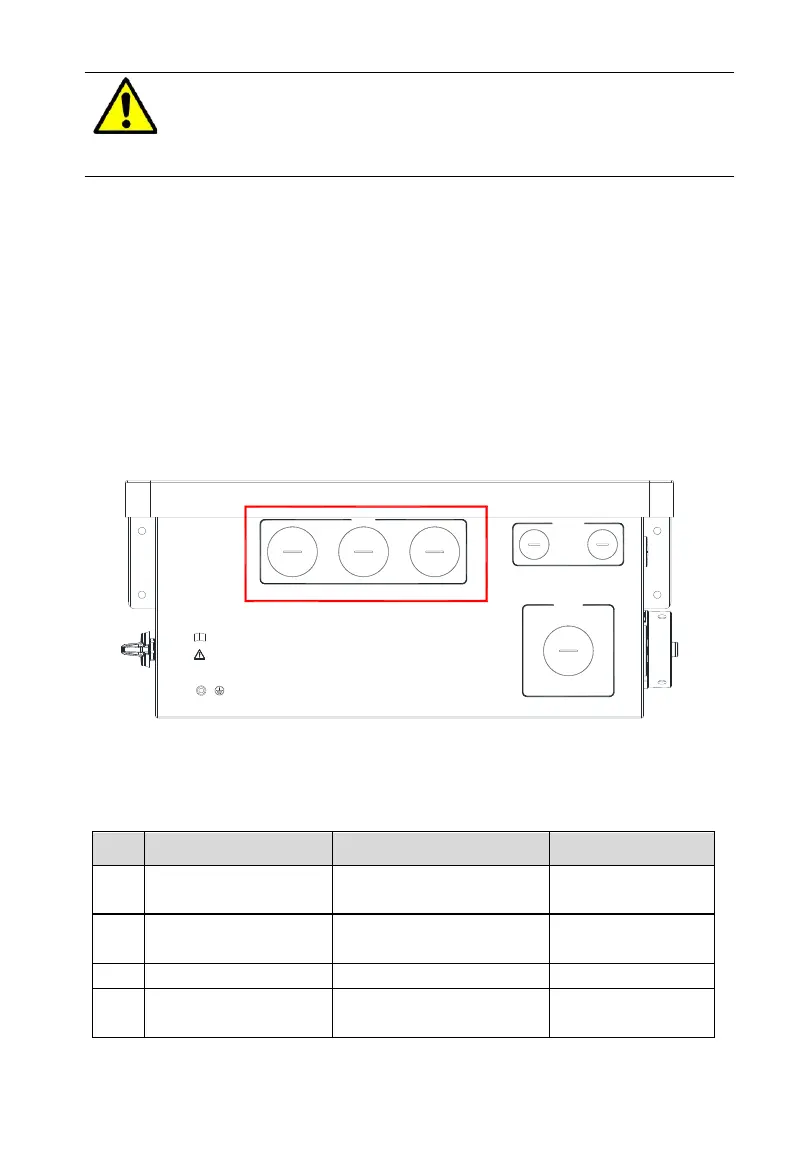

Figure 3-233 DC Input Connection
Table 3-7 Tools Required for DC Cable Termination
No.
Tools
Remark
Torque
1
#2 Phillips head
screwdriver
Fuse holder Terminal
26 in-lbs (3.0Nm)
2
Diagonal pliers or
cable cutters
Cut cable
-
3
Wire stripping pliers
Remove jacket
-
4
Torque driver
Torque terminals to
specification
-
