repair parts

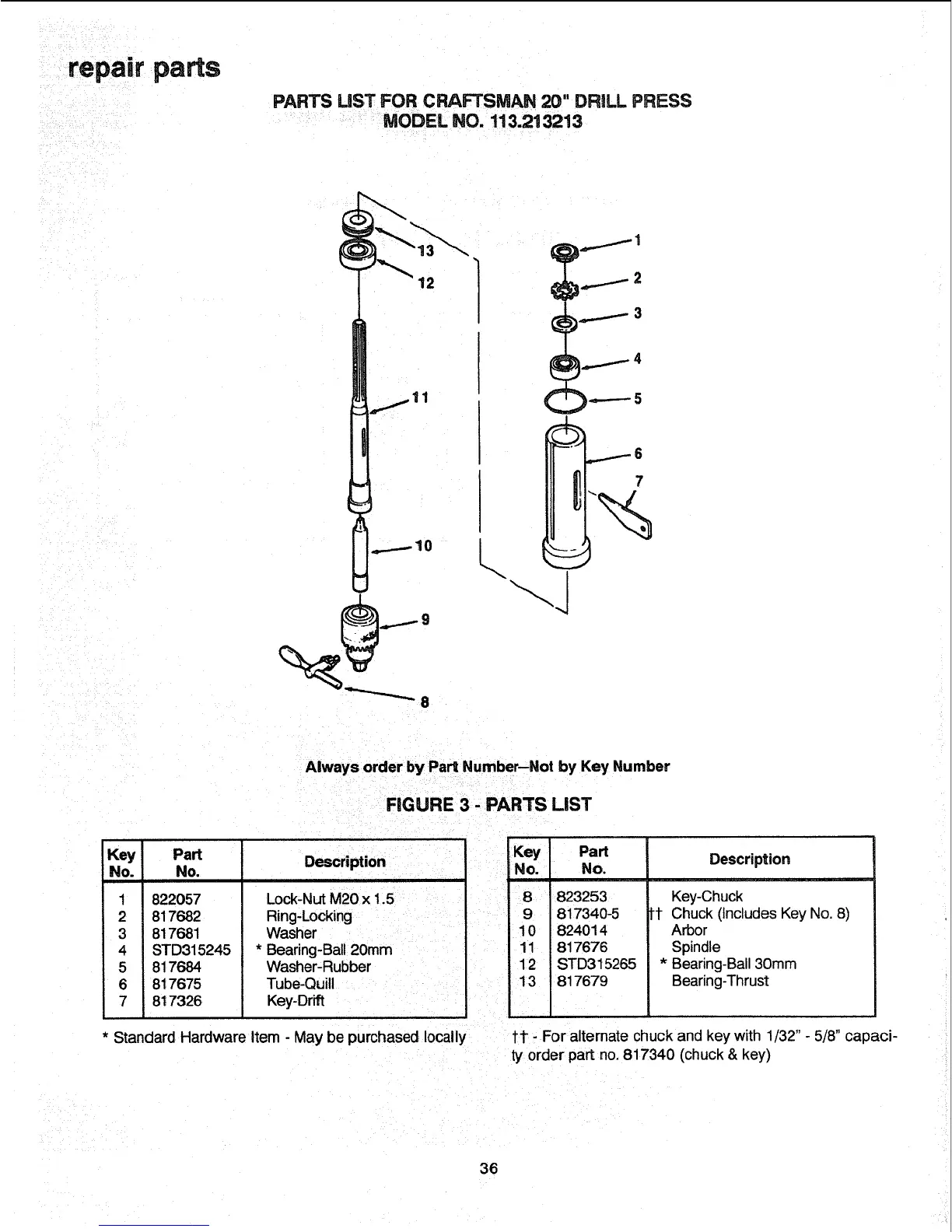

PARTS LiST FOR CRAFTSMAN 20" DRILL PRESS
MODEL NO. 113.213213
12
11
12
..---3
6
7
Always order by Part Number-Not by Key Number
FIGURE 3 -PARTS LIST
I
Key i Part
No. No.
1 822057
2 817682
3 817681
4 STD315245
5 817684
6 817675
7 817326
Description
Lock-NutM20 x 1.5
Ring-Locking
Washer
* Bearing-Ball20ram
Washer-Rubber
Tube-Quill
Key-Drift
* Standard Hardware Item -May be purchased locally
36
:Key Pad
No. No.
8 823253
9 817340-5
10 824014
11 817676
12 STD315265
13 817679
Description
Key-Chuck
tt Chuck (Includes Key No. 8)
Arbor
Spindle
* Bearing-Ball 30mm
Bearing-Thrust
tt - For alternate chuck and key with 1/32" - 5/8" capaci-
ty order part no. 817340 (chuck & key)
