PARTS UST FOR CRAFTSMAN 20" DRILL PRESS
MODEL NO. 113.213213
20
7
\
9
Always order by Part Number-Not by Key Number

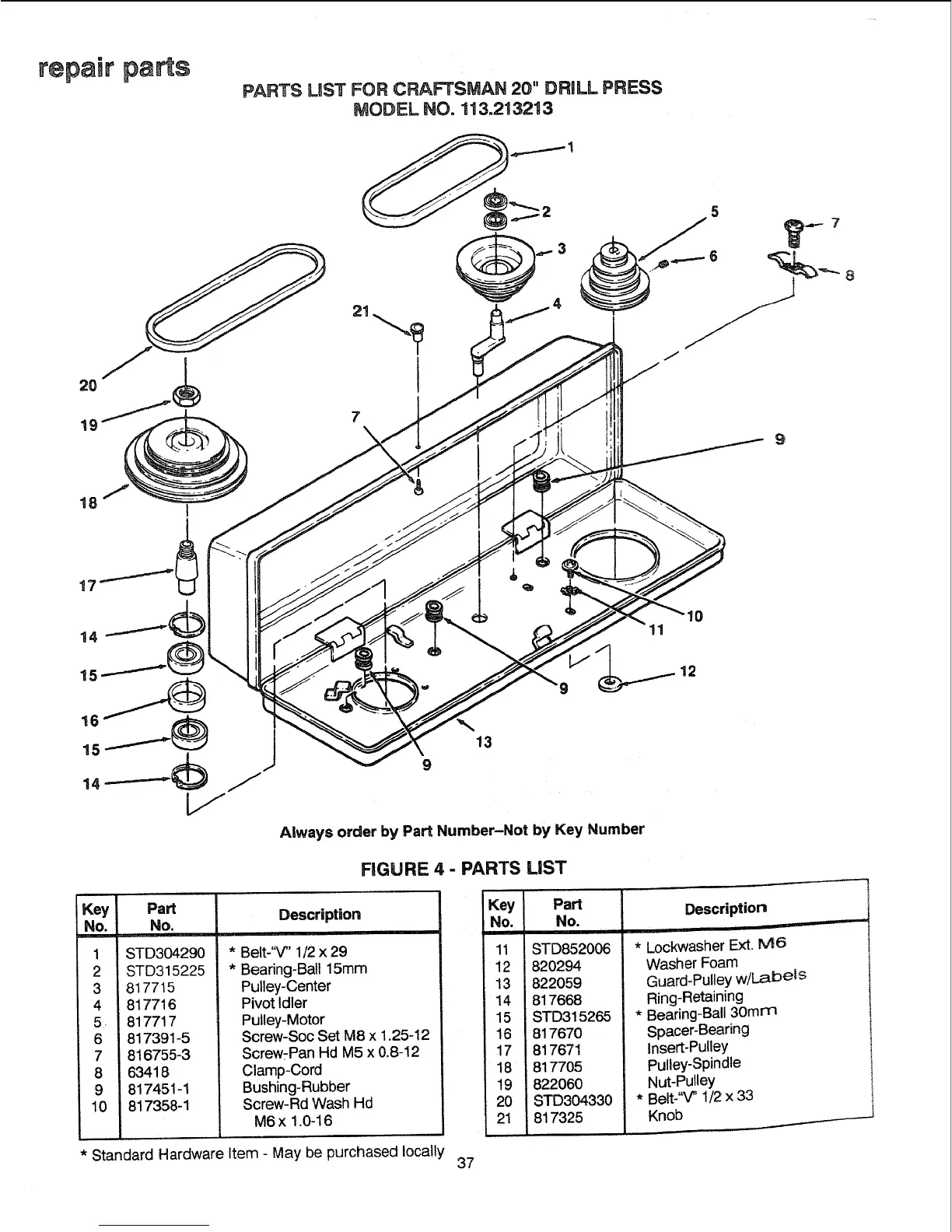

FIGURE 4 - PARTS LIST
Key Part
No.
1 STD304290
2 STD315225
3 817715
4 817716
5. 817717
6 817391-5
7 816755-3
8 63418
9 817451-1
10 817358-1
Description
* Belt-"V" 1/2x 29
* Bearing-Ball 15mm
Pulley-Center
Pivot Idler
Pulley-Motor
Screw-Soc Set M8 x 1o25-12
Screw-Pan Hd M5 x 0.8-12
Clamp-Cord
Bushing-Rubber
Screw-Rd Wash Hd
M6 x 1.0-16
Key
No.
L
11
12
13
14
15
16
17
18
19
2O
21
Part
No.
iii
STD852006
820294
822059
817668
STD315265
817670
817671
817705
822060
STD304330
817325
Description
* Lockwasher Ext, M6
Washer Foam
Guard-Pulley w/Label
Ring-Retaining
* Bearing-Ball 30mrn
Spacer-Bearing
Insert-Pulley
Pulley-Spindle
Nut-Pulley
* Belt-"_r 1/2 x 33
Knob
Standard Hardware Item - May be purchased locally
