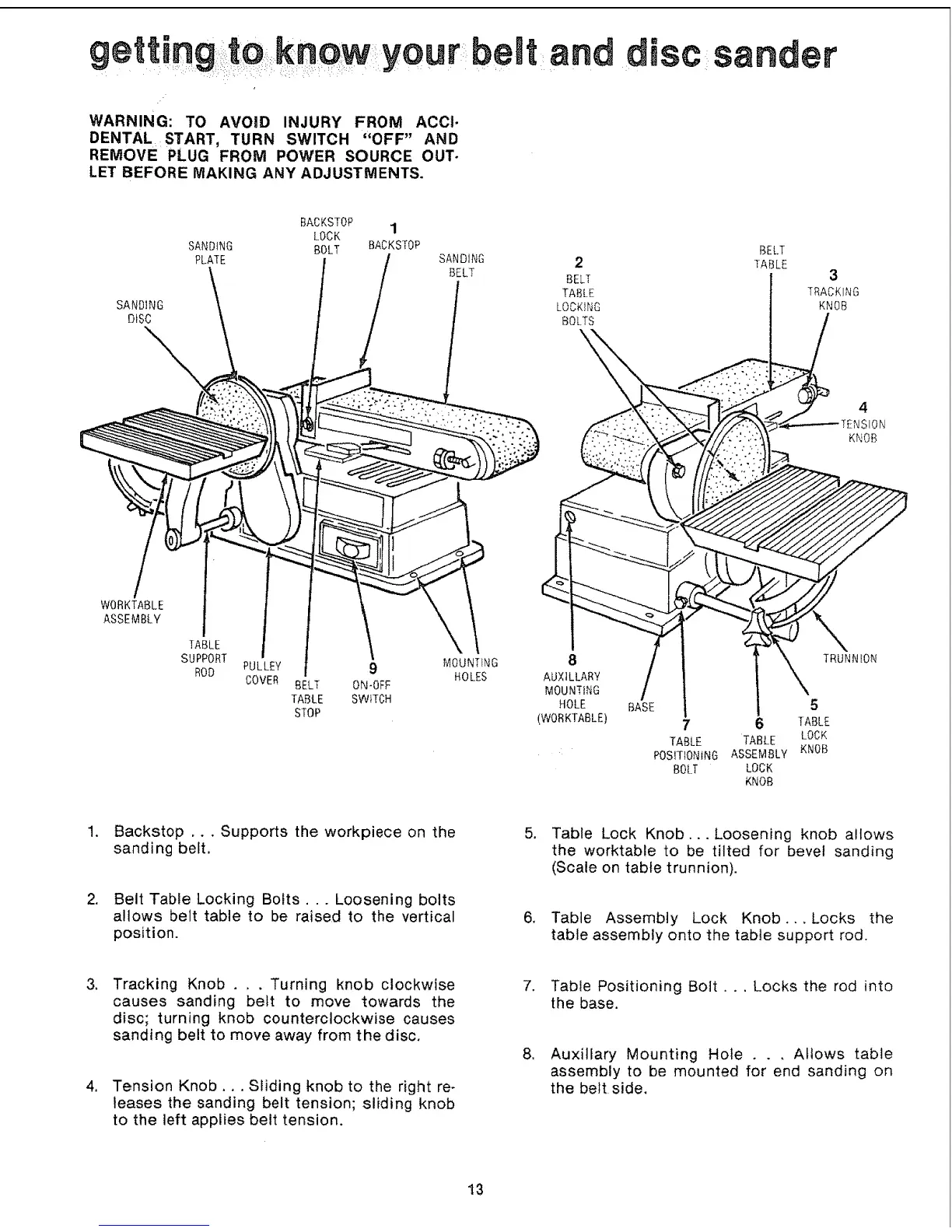

Craftsman 113.226421 - Page 13

WARNING: TO AVOID INJURY FROM ACCI-
DENTAL START, TURN SWITCH "OFF" AND
REMOVE PLUG FROM POWER SOURCE OUT-
LET BEFORE MAKING ANY ADJUSTMENTS.
sander
SANDING
DbSC
SAND{NG
PLATE
BACKSTOP 1
LOCK
BOLT BACKSTOP
SANDING
BELT
2
BELT
TABLE
LOCKING
BOLTS
\
BELT
TABLE
3
TRACKING
KNOB
4
SION
KNOB
WORKTABLE
ASSEMBLY
TABLE
SUPPORT \
ROD PULLEY 9
COVER BELT ON-OFF
TABLE SWITCH
STOP
MOUNTING
HOLES
8
AUX1LLARY
MOUNTING
HOLE
(WORKTABLE)
BASE 5
7 6 TABLE
TABLE TABLE LOCK
POSITIONING ASSEMBLY KNOB
BOLT LOCK
KNOB
TRUNNION
.
,
Backstop ,., Supports the workpiece on the
sanding belt.
Belt Table Locking Bolts... Loosening bolts
allows belt table to be raised to the vertical
position.
5. Table Lock Knob.., Loosening knob allows
the worktable to be tilted for bevel sanding
(Scale on table trunnion).
6, Table Assembly Lock Knob... Locks the
table assembly onto the table support rod.
,
,
Tracking Knob . . . Turning knob clockwise
causes sanding belt to move towards the
disc; turning knob counterclockwise causes
sanding belt to move away from the disc.
Tension Knob,,. Sliding knob to the right re-
leases the sanding belt tension; sliding knob
to the left applies belt tension,
7. Table Positioning Bolt... Locks the rod into
the base,
8, Auxiliary Mounting Hole , . , Allows table
assembly to be mounted for end sanding on
the belt side.
13
