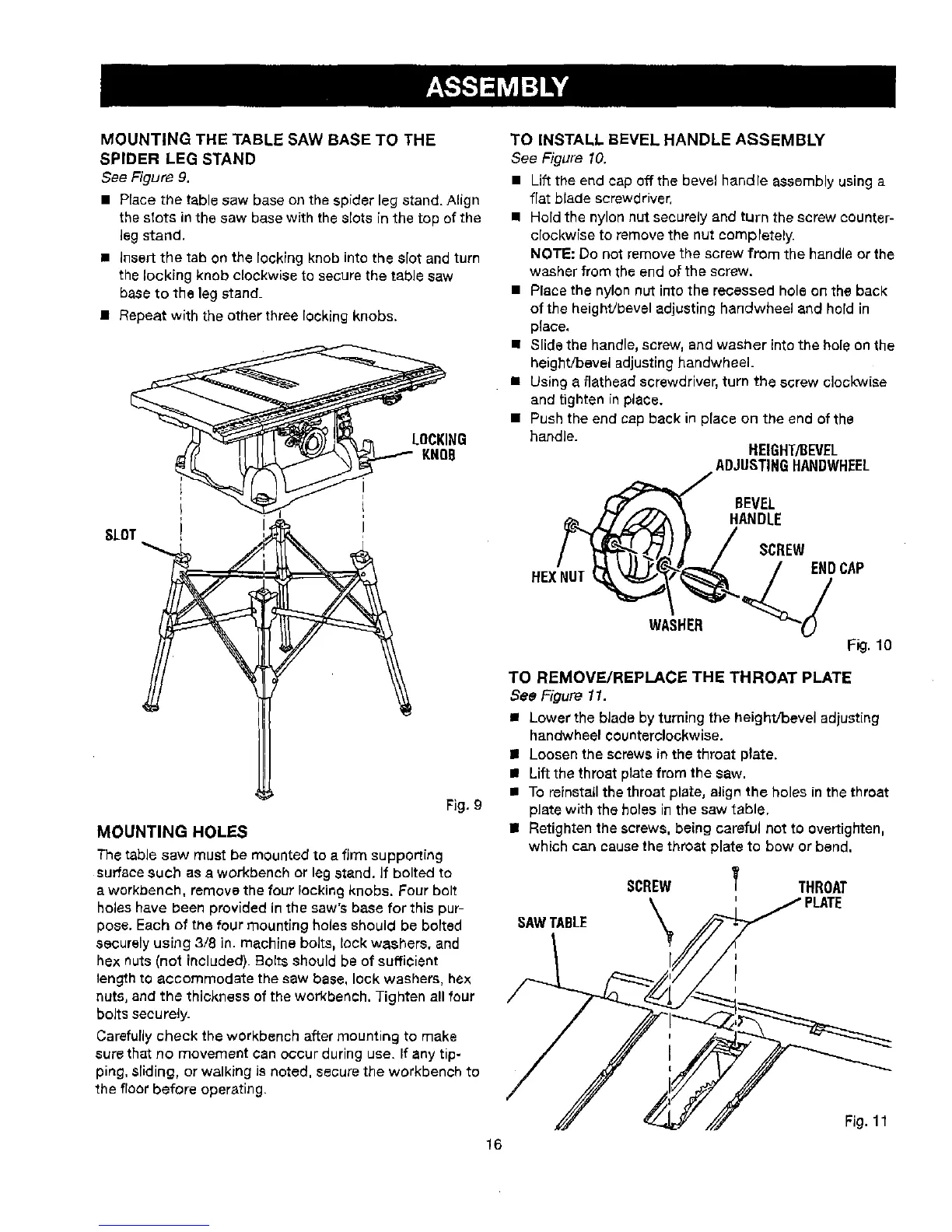

MOUNTING THE TABLE SAW BASE TO THE
SPIDER LEG STAND
See Figure 9.
• Place the tablesaw base on the spider leg stand. Align
the stota in the saw base with the slots in the top of the
leg stand.
• InserLthe tab on the locking knob into the slot and turn
the locking knob clockwise to secure the table saw
base to the leg stand_
• Repeat with the other three locking knobs.
SLOT
I
I
LOCKING
KNOB
Fig. 9
MOUNTING HOLES
The table saw must be mounted to a firm supporting
surface such as a workbench or leg stand. If bolted to
a workbench, remove the four locking knobs. Four bolt
holes have been provided in the saw's base for this pur-
pose. Each of the four mounting holes should be bolted
securely using 3/8 in. machine bolts, lock washers, and
hex nuts (not included). Bolts should be of sufficient
length to accommodate the saw base, lock washers, hax
nuts, and the thickness of the workbench, Tighten all four
bolts securely.
Carefully check the workbench after mounting to make
sure that no movement can occur during use. If any tip-
ping, sliding, or walking J9 noted, secure the workbench to
the floor before operating.
TO INSTALL BEVEL HANDLE ASSEMBLY
See Figure 10.
• Lift the end cap off the bevel handle assembly using a
flat blade screwdriver.
• Hold the nylon nut securely and turn the screw counter-
clockwise to remove the nut completely.
NOTE: Do not remove the screw from the handle or the
washer from the end of the screw.
• Place the nylon nut into the recessed hole on the back
of the height/bevel adjustinghandwheel and hold in
place,
• Slide the handle, screw, and washer intothe hole on the
height!bevel adjusting handwheel.
• Using a flathead screwdriver,turn the screw clockwise
and tighten in place.
• Pushthe end cop back in place on the end of the
handle.
HEIGHT/BEVEL
ADJUSTINGHANDWHEEL
BEVEL
HANDLE
HEXNUT
WASHER
SCREW
._;DCAP
F_.10
TO REMOVE/REPLACE THE THROAT PLATE
See Figure 11.
• Lower the bJade by turning the height/bevel adjusting
handwheel counterclockwise.
II Loosen the screwsin the throat ptate.
II Liftthe throatplate from the saw.
• To roinstaUthe throat plato, alignthe holes in the throat
plate with the holes inthe saw table,
= Retighten the screws, being careful not to overtighten,
which can causethe throat plate to bow or bend.
SCREW
THROAT
SAWTABLE
Fig. 11
16
