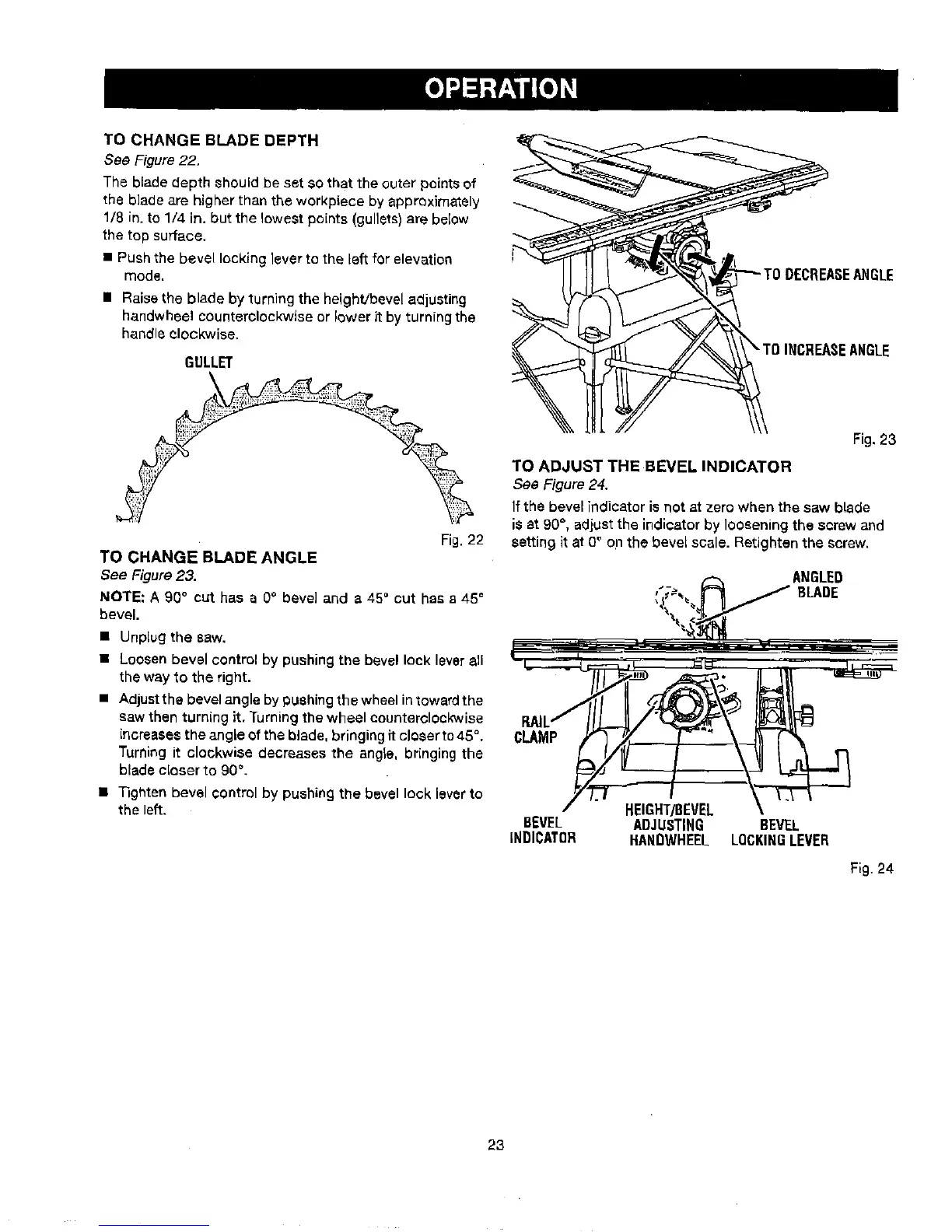

TO CHANGE BLADE DEPTH
See Figure 22.
The blade depth ehould be set SOthat the outer points of
the blade are higher than the workpiece by approximately
1/8 in. to 1/4 in. but the lowest points (gullets) are below
the top surface.
• Push the bevel locking lever to the left for elevation
mode.
• Raisethe blade by turning the height/bevel adjusting
handwheel counterclockwise or lower it by turning the
handle clockwise,
GULLET
Fig. 22
TO CHANGE BLADE ANGLE
See Figure23.
NOTE: A 90 ° cut has a 0° bevel and a 45° cut has a 45°
bevel.
• Unplug the saw,
Loosen bevel control by pushing the bevel leek leverall
the way to the right.
Adjustthe bevel angle by pushing the wheel intowardthe
saw then turning it. Turningthe wheel counterclockwise
{ncreasesthe angle of the blade, bringingit closer to45°.
Turningit clockwise decreases the angle, br{nging the
bladecloser to 90%
lighten bevel control by pushing the bevel lock lever to
the left.
EANGLE
Fig, 23
TO ADJUST THE BEVEL INDICATOR
See Figure 24.
Ifthe bevel indicator isnot at zero when the saw blade
is at 90°, adjust the indicator by loosening the screw and
setting it at 0_ on the bevel scale. Retighten the screw.
ANGLED
BLADE
CLAMP
HEIGHT/BEVEL
BEVEL ADJUSTING BEVEL
INDICATOR HANDWHEEL LOCKINGLEVER
Fig. 24
23
