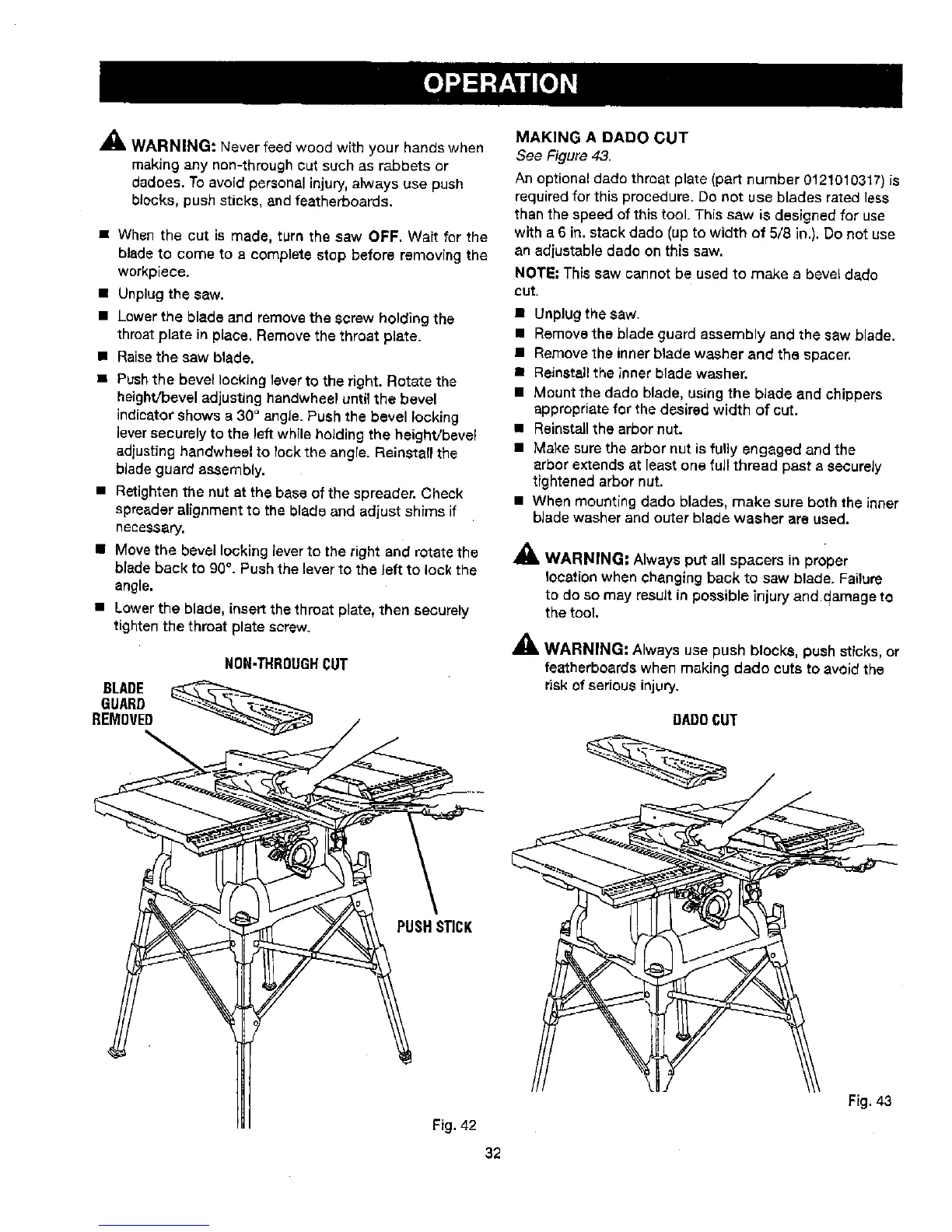

Page #32 background imageLoading...
Page #32 background image
_& WARNING: Never feed wood with your hands _vhen
making any non-through cut such as rabbets or
dadoes. To avoid personal injury, always use push
blocks, push sticks, and featherboards.
When the cut is made, turn the saw OFF, Wait for the
blade to come to a complete stop before removing the
workplace.
Unplug the saw,
Lower the blade and remove the screw holding the
throat plate in place. Remove the throat plate.
Raisethe saw blade.
Push the bevel locking lever to the right. Rotate the
height/bevel adjusting handwheel until the bevel
indicator shows a 30" angle. Push the bevel locking
leversecurely to the left while holding the height/bevel
adjusting handwheel to lock the angle. Reinstall the
blade guard assembly,
Retighten the nut st the base of the spreader. Check
spreader alignment to the blade and adjust shims if
necessary,
Move the bevel locking lever to the right and rotate the
blade back to 90°. Push the lever to the left to look the
angle.
Lower the blade, insert the throat plate, then securely
tighten the throat p_atescrew.
BLADE
GUARD
REMOVED
NON-THROUGHCUT
MAKING A DADO CUT
See Figure 43.
An optional dadc throat plate (part number 0121010317)is
required for this procedure. Do r_otuse blades rated less
than the speed of this tool. This saw is designed for use
with a 6 in. stack dado (up to width of 5/8 in,), Do not use
an adjustable dado on this saw,
NOTE: This saw cannot be used to make s bevel fade
OUt.
Unplug the saw.
Remove the blade guard assembly and the saw blade.
Remove the inner blade washer and the spacer.
Reinstall the inner blade washer.
Mount the dado blade, using the blade and chippers
appropriate for the desired width of cut.
Reinstall the arbor nut.
Make sure the arbor nut is tully engaged and the
arbor extends at least one fuji thread past a securely
tightened arbor nut.
When mounting dsdo blades, make sure both the inner
blade washer and outer blade washer are used.
.&
WARNING: Always put all spacers in proper
location when changing back to saw blade. Failure
to de so may result in possible injury and damage to
the tool.
A
AI& WARNING: Always use push blocks, push sticks, or
featherboards when making dado cuts to avoid the
risk of serious injury.
DADBCUT
PUSHSTICK
Fig. 42
32
