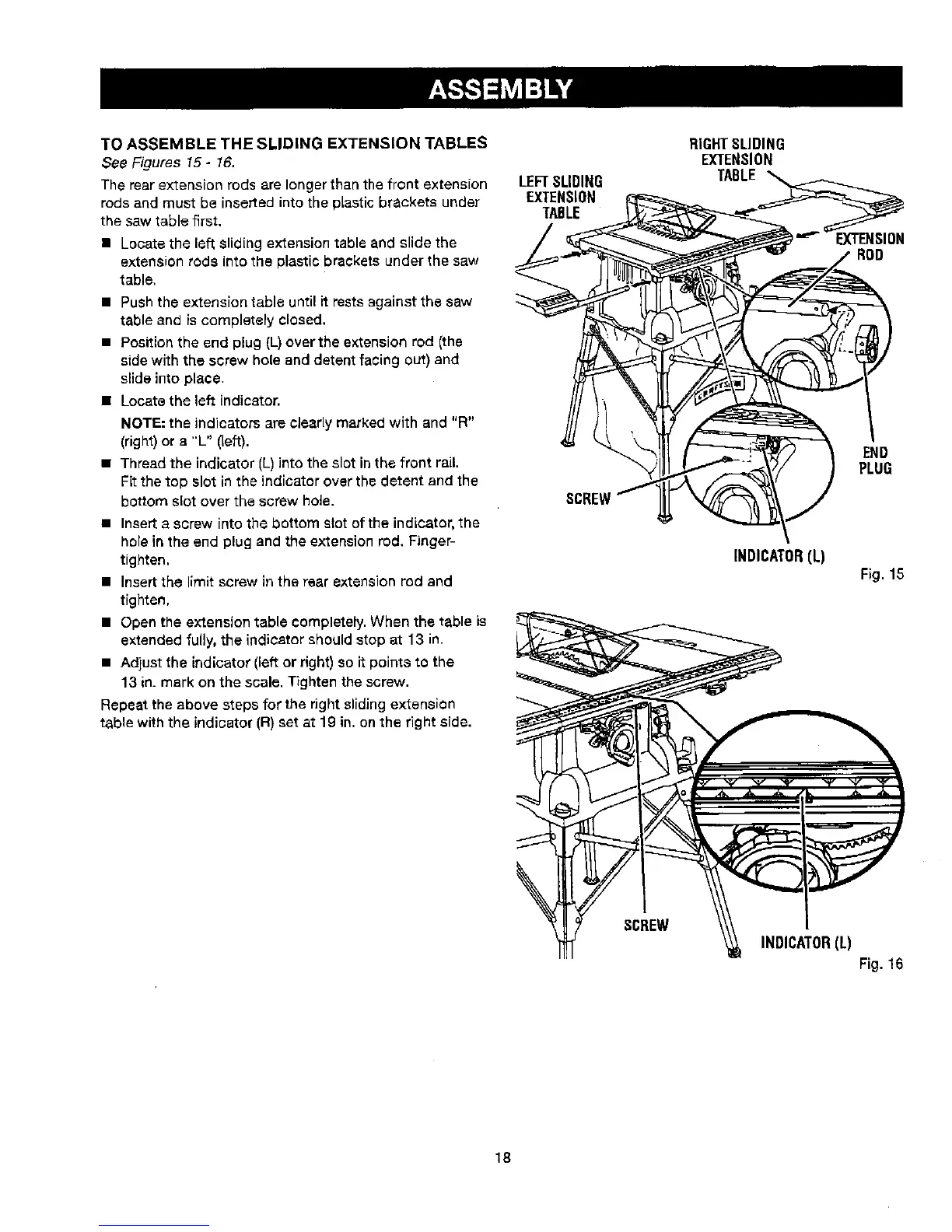

TO ASSEMBLE THE SLIDING EXTENSION TABLES
See Figures 15- 16.
The rear extension rods are longer than the front extension
rods and must be inserted into the plastic brackets under
the saw table first.
• Locate the left sliding extension tabl- and slide the
extension rode into the plastic brackets under the saw
table,
• Push the extension table until it rests against the saw
table and is completely closed.
• Position the end plug (L)over the extension rod (the
side with the screw hole and detent facing out) and
slide into place,
• Locate the left indicator.
NOTE: the indicators are cJearlymarked with and "R"
(right) or a "L" (left).
• Thread the indicator (L) into the slot in the front rail.
Fit the top slot in the indicator over the detent and the
bottom slot over the screw hole.
• Insert a screw into the bottom slotof the indicator, the
hole in the end plug and the extension rod, Finger-
tighten.
• Insert the limit screw in the rear extension red and
tighten,
• Open the extensiontable completely. When the table is
extended fully, the indicator should stop at 13 in.
• Adjust the indicator(left or right)so it points to the
13 in_mark on the scale. Tighten the screw.
Repeat the above steps for the right sliding extension
table withthe indicator (R)set at 19 in. onthe right side.
LEFTSLIDING
EXTENSION
TABLE
RIGHTSLIDING
EXTENSION
TABLE_
ROD
END
PLUG
INDICATOR(L)
Fig. 15
SCREW
INDICATOR(L)
Fig, 16
