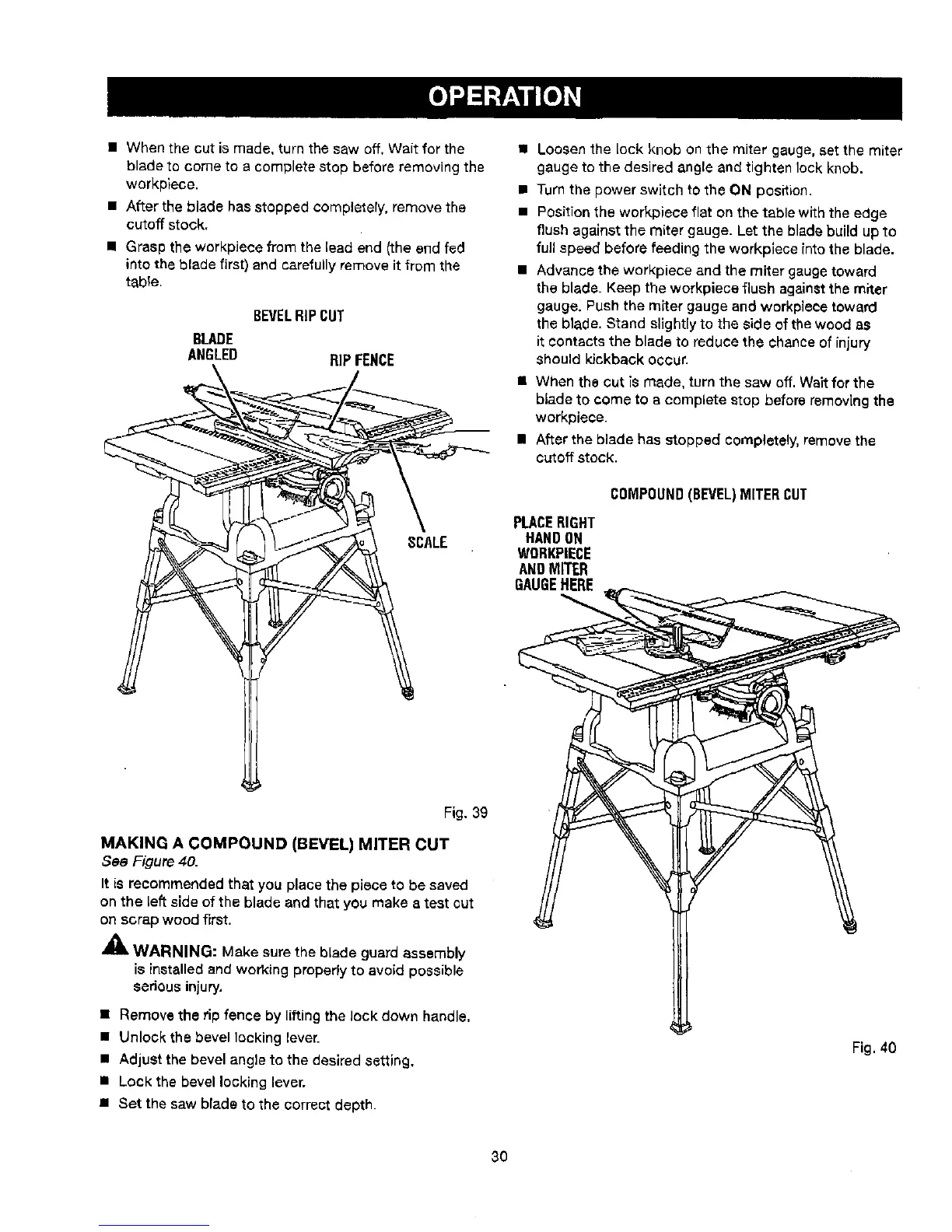

• When the cut is made, turn the saw off, Wait for the
blade to come to a complete stop before removing the
workpiece.
• After the blade has stopped completely, remove the
cutoff stock.
• Grasp the workplace from the lead end (the end fed
into the blade first) and carefully remove it from the
table.
BEVELRIPCUT
BLADE
ANGLED RIPFENCE
SCALE
• Loosen the Lockknob on the miter gauge, set the miter
gauge to the desired angle and tighten lockknob.
• Turn the power switch to the ON position.
• Position the workplace flat on the table with the edge
flush against the miter gauge. Let the blade build up to
full speed before feeding the workplece into the blade.
• Advance the workpiece and the miter gauge toward
the blade. Keep the werkpiece flush against the miter
gauge. Push the miter gauge and workplace toward
the blade, Stand slightly to the side of the wood aS
it contacts the blade to reduce the chance of injury
should kickback occur.
• When the cut is made, turn the saw off. Wait for the
blade to come to e complete stop before removing the
workplace.
• After the blade has stopped completely, remove the
cutoff stock.
PLACERIGHT
HANDON
WDRKPIECE
ANDMITER
GAUGEHERE
COMPOUND(BEVEL)MITERCUT
Fig. 39
MAKING A COMPOUND (BEVEL) MITER CUT
See Figure 40.
It is recommended that you place the piece to be saved
on the Left side of the blade and that you make a teat cut
on scrap wood first.
_' WARNING: Make sure the blade guard assembly
is installed and working properly to avoid possible
serious injury,
• Remove the rip fence by lifting the lock down handle,
• Unlock the bevel locking lever.
• Adjust the bevel angle to the desired setting,
• Lock the bevel locking lever.
• Set the saw blade to the correct depth.
Fig. 40
30
