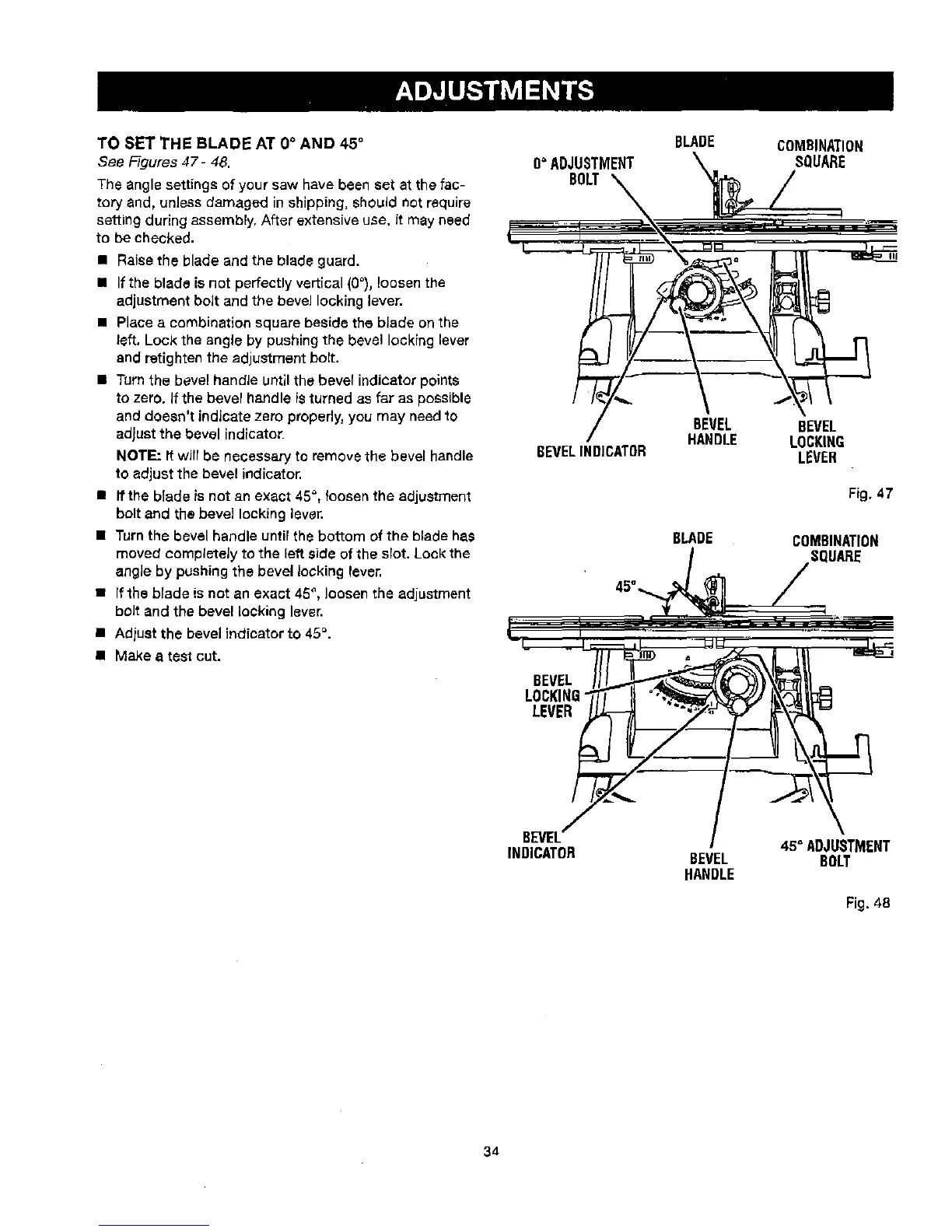

TO SET THE BLADE AT 0° AND 45 °
See Figures 47- 48.
The angle settings of yoursaw have been set at the fac-
tory and, unless damaged in shipping, should not require
setting during assembly. After extensive use, it may need
to be checked.
• Raise the blade and the blade guard.
• If the blade is not perfectly vertical (O_),loosen the
adjustmentbolt and the bevel locking lever.
• Place a combination square beside the blade on the
left. Lock the angle by pushing the bevel locking lever
and retighten the adjustment bolt.
• Turn the bevel handJe until the bever indicator points
to zero. If the bevel handle is turned as far as possible
and doesn't indicate zero properly, you may need to
adjustthe bevel indicator.
NOTE: It wirrbe necessary to remove the bevel handle
to adjust the bevel indicator.
• fftha blade is not an exact 45_, loosen the adjustment
bolt and the bevel locking laver.
• Turn the bevel handle until the bottom of the blade has
moved completely to the left side of the slot. Look the
angle by pushing the bevel locking laver.
• If the blade is net an exact 45°, loosenthe adjustment
bolt and the bevel locking lever.
• Adjust the bevel indicator to 45°.
• Make a test cut.
O° ADJUSTMENT
BOLT
BEVELIND]CATOR
BEVEL
LOCKING
LEVER
BLADE
BEVEL
HANDLE
BLADE
COMBINATION
SQUARE
BEVEL
LOCKING
LEVER
Fig, 47
COMBINATION
SQUARE
BEVEL
INDICATOR
BEVEL
HANDLE
45°ADJUSTMENT
BOLT
Fig. 48
34
