KEY PART
NO. NUMBER

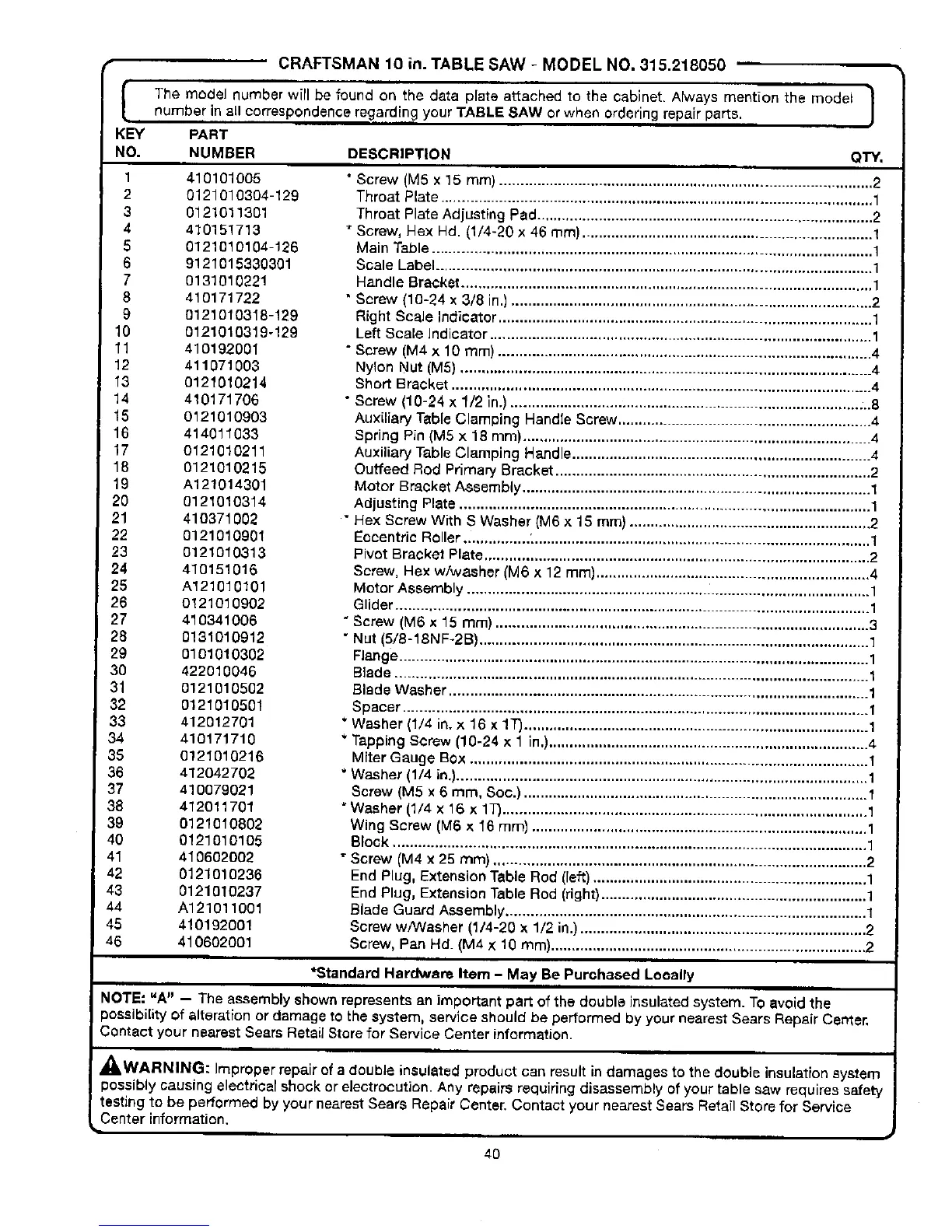

CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218050 --
===
The model number wirl be found on the data plate attached 1othe cabinet. Arways mention the model ]
number in all correspondence
J
1 410101OO5
2 0121010304-129
3 0121011301
4 410151713
5 0121010104-126
6 9121015330301
7 0131010221
8 410171722
9 0121010318-129
10 0121010319-129
11 410192001
12 411071003
13 0121010214
14 410171706
15 0121010903
16 414011033
17 0121010211
18 0121010215
19 A121014301
20 0121010314
21 410371002
22 0121010901
23 0121010313
24 410151016
25 A121010101
26 0121010902
27 41O341006
28 0131010912
29 0101010302
30 422010046
31 0121010502
32 0121010501
33 412012701
34 410171710
35 0121010216
36 412042702
37 41OO79021
38 412011701
39 0121010802
40 0121010105
41 410602002
42 0121010236
43 0121010237
44 A121011001
45 410192001
46 410602001
regarding your TABLE SAW or when ordering repair parts.
DESCRIPTION QTY,
imlm,
" Screw (MS x 15 ram) .......................................................................................... 2
Throat Plate ........................................................................................................ 1
Throat Plate Adjusting Pad................................................................................. 2
" Screw, Hex Hal. (1/4-20 x 46 ram) ...................................................................... 1
Main Table.......................................................................................................... 1
Scale Label ......................................................................................................... 1
Handle Bracket ................................................................................................... 1
" Screw (10-24 x 3/8 in.) ....................................................................................... 2
Right Scale Indicator .......................................................................................... 1
Left Scale Indicator ............................................................................................ 1
" Screw (M4 x 10 ram) .......................................................................................... 4
Nylon Nut (M5) ................................................................................................... 4
Short Bracket ..................................................................................................... 4
" Screw (10-24 x 1/2 in.) ....................................................................................... 8
Auxiliary Table Clamping Handle Screw ............................................................. 4
Spring Pin (MS x 18 ram).................................................................................... 4
Auxiliary Table Clamping Handle ........................................................................ 4
Ouffeed Rod Primary Bracket ............................................................................ 2
Motor Bracket Assembly .................................................................................... 1
Adjusting Plate ................................................................................................... 1
• Hex Screw With S Washer (M6 x 15 ram) .......................................................... 2
Eccentric Roller ................ "................................................................................. 1
Pivot Bracket Plate ............................................................................................. 2
Screw= Hex w/washer (M6 x 12 ram).................................................................. 4
Motor Assembly .......................................................... i...................................... 1
Glider .................................................................................................................. 1
" Screw (M6 x 15 ram) .......................................................................................... 3
" Nut (5/8-18NF-2B) .............................................................................................. 1
Flange ................................................................................................................. 1
Blade .................................................................................................................. 1
Blade Washer ..................................................................................................... 1
Spacer ................................................................................................................ 1
* Washer (1/4 in. x 16 x 1T)................................................................................... 1
* Tapping Screw (10-24 x 1 in,)............................................................................. 4
Miter Gauge BOx ................................................................................................ 1
* Washer (1/4 in.)................................................................................................... 1
Screw (M5 x 6 ram, Soc.) ................................................................................... 1
* Washer (1/4 x 16 x 13")........................................................................................ 1
Wing Screw (M6 x 16 mm) ................................................................................. 1
Block .................................................................................................................. 1
"Screw (M4 × 25 ram) .......................................................................................... 2
End Plug, Extension Table Rod (left) .................................................................. 1
End Plug, Extension Table Rod (right)................................................................ 1
Blade Guard Assembly ....................................................................................... 1
Screw w/Washer (1/4-20 x 1/2 in.) ..................................................................... 2
Screw, Pan Hd. (M4 × 10 ram)............................................................................ 2
*Standard Hardwere Item - May Be Purchased Locally
=
NOTE: =A" - The assembly shown represents an important part of the double insulatedsystem. To avoid the
possibility of alteration or damage to the system, service should be performed by your nearest Sears Repair Center,
Contact your nearest Sears Retail Store for Service Center information.
i
_WARNING: Improper repair of a double insulated product can result in damages to the double insulation system
possibly causing eleetricar shock or electrocution. Any repairS requ r ng d sassemb y of your table saw requires safety
testing to be performed by your nearest Sears Repair Center, Contact your nearest Sears Retail Store for Service
Center information,
.1111
40
