CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315,218050 '"

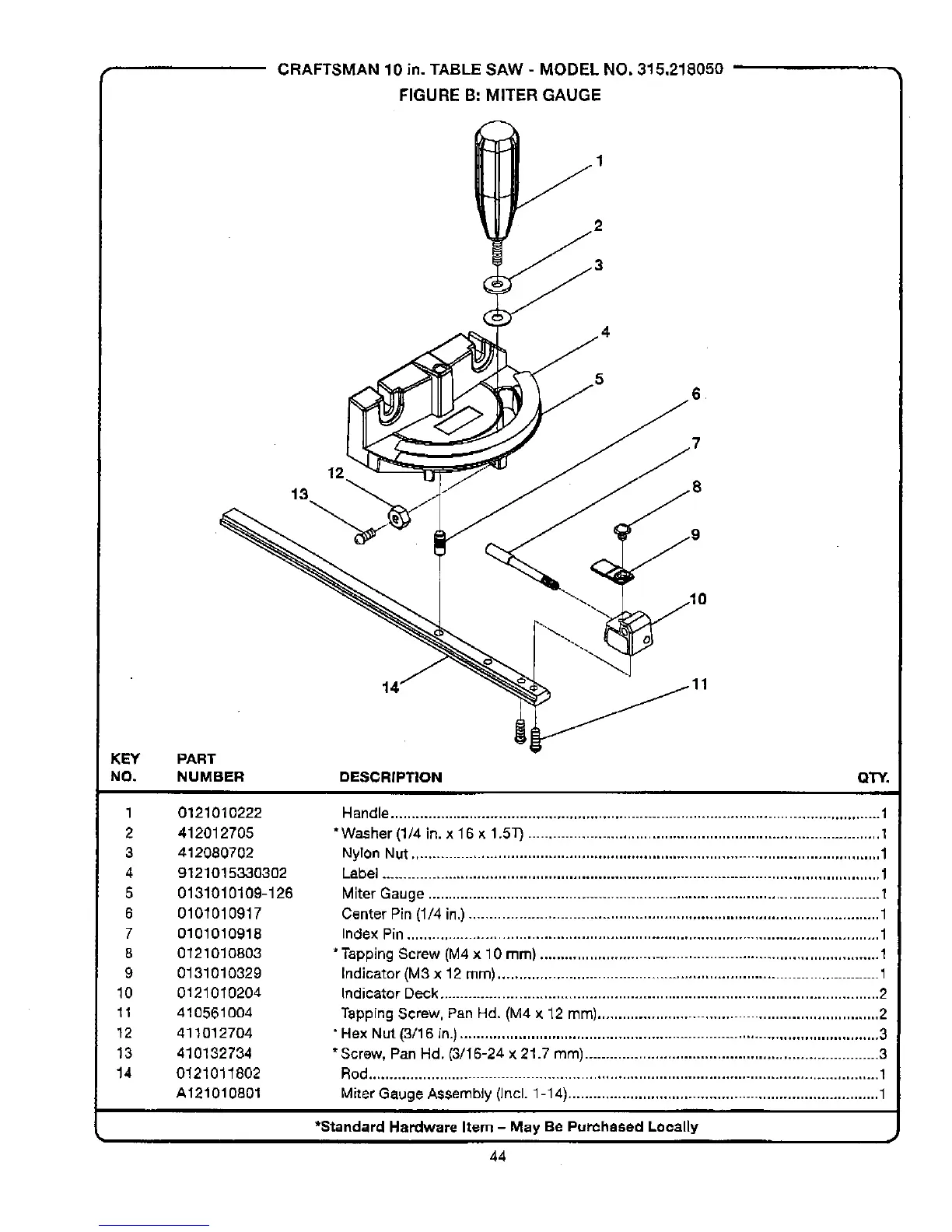

FIGURE B" MITER GAUGE
1
2
3
13
12
14
KEY
NO.
1
2
3
4
G
6
7
8
9
10
11
12
13
14
PART
NUMBER
0121010222
412012705
412080702
9121015330302
0131010109-126
0101010917
0101010918
0121010803
0131O10329
0121010204
410561004
411012704
410132734
0121011802
A121010801
DESCRIPTION QTY.
Handle...................................................................................................................... 1
*Washer (1/4 in. x 16 x 1.5_ ..................................................................................... 1
NyTonNut ................................................................................................................. 1
Label ........................................................................................................................ 1
Miter Gauge ............................................................................................................. 1
Center Pin (1/4 in,) ................................................................................................... 1
Index Pin .................................................................................................................. 1
* Tapping Screw (M4 x 10 ram) .................................................................................. 1
Indicator (M3 x 12 ram) ............................................................................................ 1
Indicator Deck.......................................................................................................... 2
Tapping Screw, Pan Hd. (M4 x 12 mm).................................................................... 2
• Hex Nut (3/16 in.)..................................................................................................... 3
*Screw, Pan Hd. (3/16-24 X 21.7 mm) ....................................................................... 3
Rod........................................................................................................................... 1
Miter Gauge Assembly (Incl. 1-14)........................................................................... 1
k, *Standard Hardware Item - May Be Purchased Locally
=*
