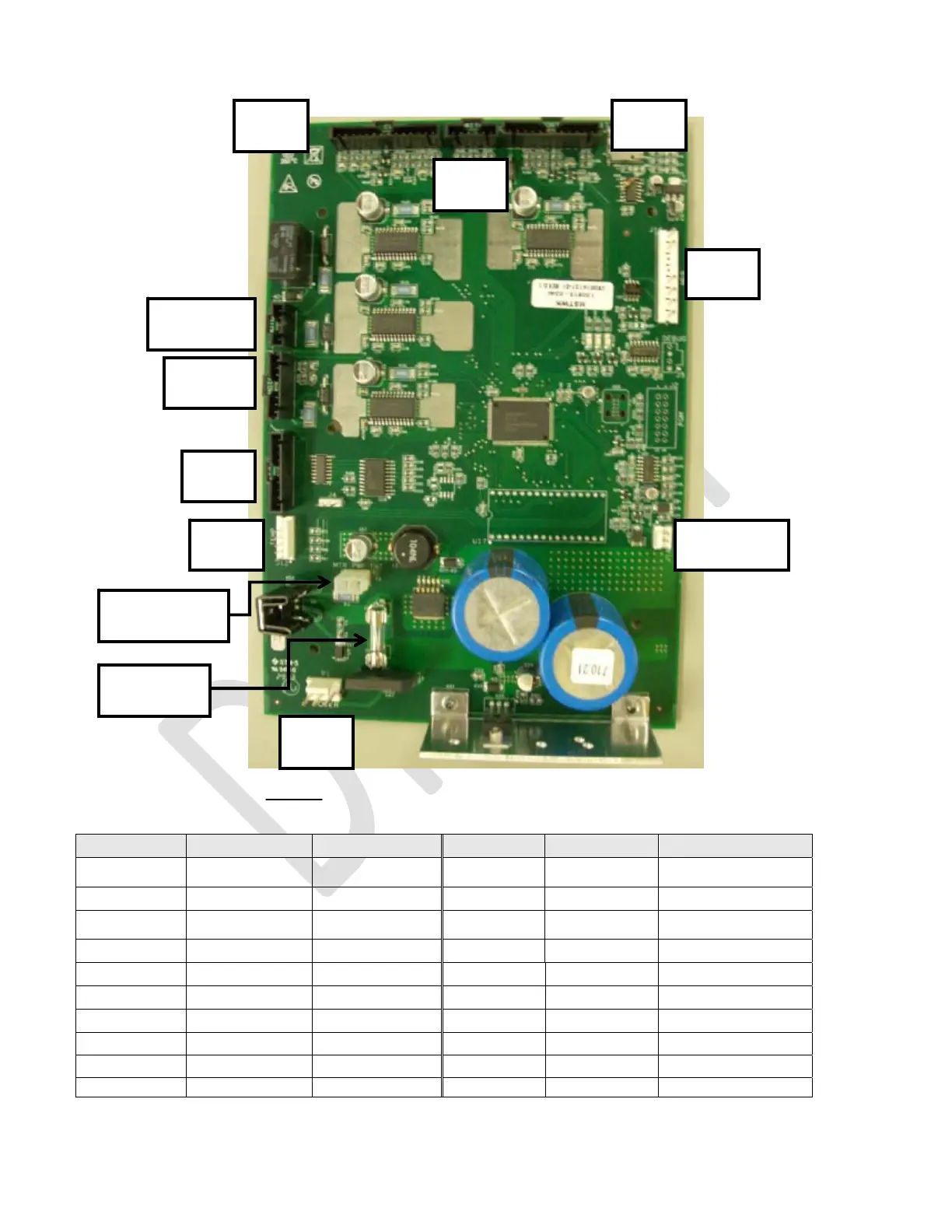

BevMax 6 Media IO Board (CR0014121)
BEVMAX 6 DN5800-6/3800-6/5800-E6/3800-E6 IO BOARD CONNECTIONS
CONNECTION DESCRIPTION COMMENTS CONNECTION DESCRIPTION COMMENTS
P1 Power
Power from AC
Distribution Box
FH1 & FH2 Fuse 3AMP/250V
P2 Port
P3
Motor Power
Interrupt
J12 Temp
P7 Refrigeration J16 MDB
P8 Y/Z Motors J18 Coin Return
P10 Switch
P14 Y/Z Motors
P15 X Motor
MDB
J16
Coin Return
J18
Power
P1
Temp
J12
Refrig
P7
X Motor
P15
Y/Z Motors
P8
Fuse
FH1 & FH2
Cup
P14
Switch
P10
Port
P2
Motor Power
Interrupt P3
