BevMax 6 Media Atlas Board
(CR0014700 Touch; CR00###### Keypad)

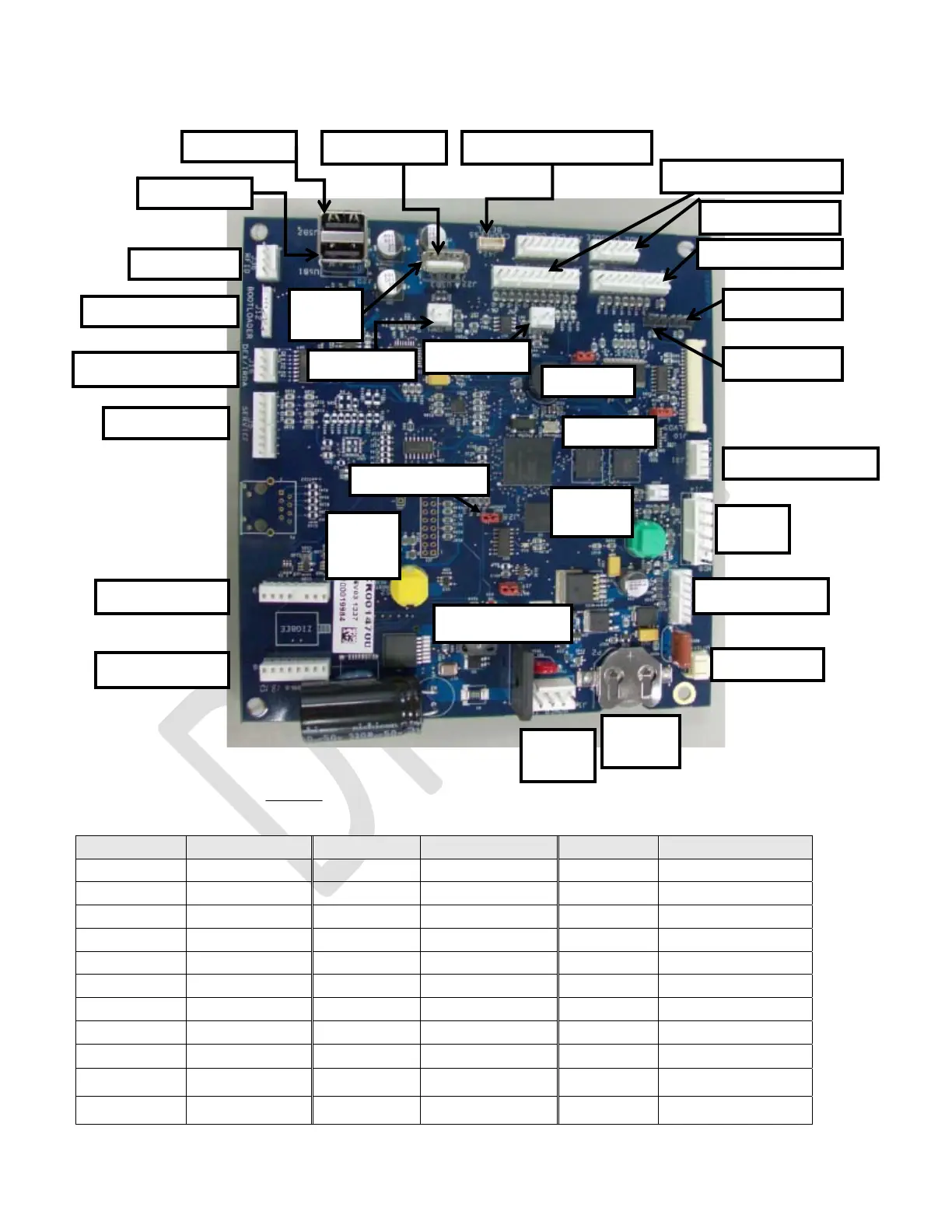

BEVMAX 6 DN5800-6/3800-6/5800-E6/3800-E6 ATLAS BOARD CONNECTIONS
CONNECTION DESCRIPTION CONNECTION DESCRIPTION CONNECTION DESCRIPTION
J1 Blue J16 DEX/IRDA J36 RF ID
J2 --------- J17 Watchdog J37 Battery
J3 Console J18 Temp1 J38 ---------
J4 Aux Console J19 Temp2 J42 Cashless Bezel
J5 Service J20 USB1 & USB2
J6 Selection J22 USB3 P2 Battery
J8 Zigbee J28 Boot loader S1 Service
J9 Zigbee J30 Cab Connection S2 Master Reset
J11 Power J31 LCD Power
J12 Boot loader J34 DPS
J14 MDB J35 MSL
MDB
J14
LCD Power J31
------- J38
Batter
y
J37
Selection J6
Aux Console J4
Console J3
DPS J34
Cab Connection J30
Cashless Bezel J42
USB3
J22
Tem
p
1 J18
RF ID J36
DEX/IRDA J16
Boot loader J12
Service J5
Zigbee J9
Zigbee J8
Battery
P2
Power
J11
MSL J35
Master
Reset
S2
Service
S1
Blue J1
---- J2
Boot loader J28
Watchdog J17
USB2 J20
USB1 J20
Temp2 J19
