Creality CR-10 S4 User Manual

03

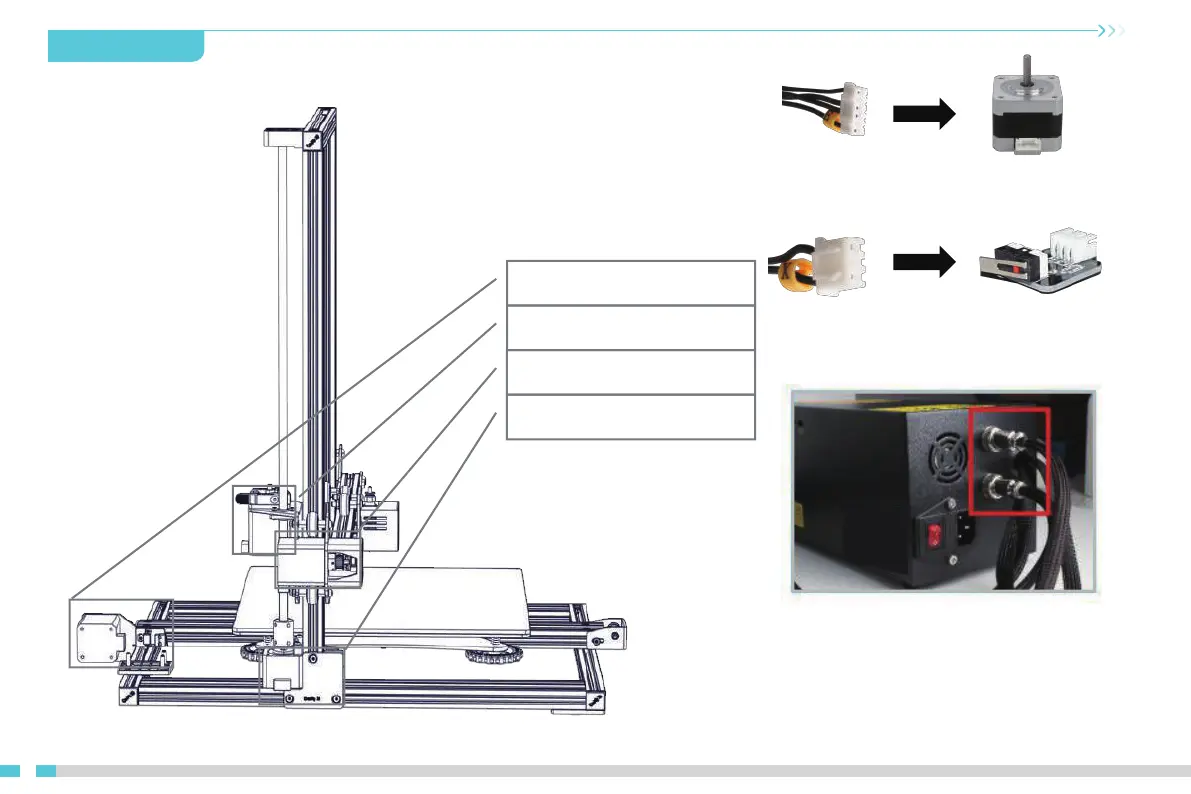

Connect the aviation connectors to the
ports with corresponding pins
Y Stepper and Limit Switch
Extruder (E) Stepper
X Stepper and Limit Switch
Z Stepper and Limit Switch
Connect the Stepper Motors according to
the yellow labels on the 6pin (4- wire) side.
Connect the Limit Switches according to the
yellow labels on the 3pin (2- wire) side.
• Select the correct input voltage to match your local
mains (230V or 115V)
• Damage can occur if voltage is set incorrectly.
• Make sure the power cable is connected.
3.Introduction

Creality CR-10 S4 Specifications

General

Build Volume	400 x 400 x 400 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	SD card, USB
Frame Material	Aluminum
Bed Leveling	Manual
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Nozzle Temperature	Up to 250°C
Layer Resolution	0.1 - 0.4 mm
Printing Speed	Up to 180 mm/s, typically 40-80 mm/s
Supported Filament Types	PLA, ABS, TPU, Wood
Bed Temperature	Up to 100°C
Power Supply	110V/220V
