Creality Ender-3 User Manual

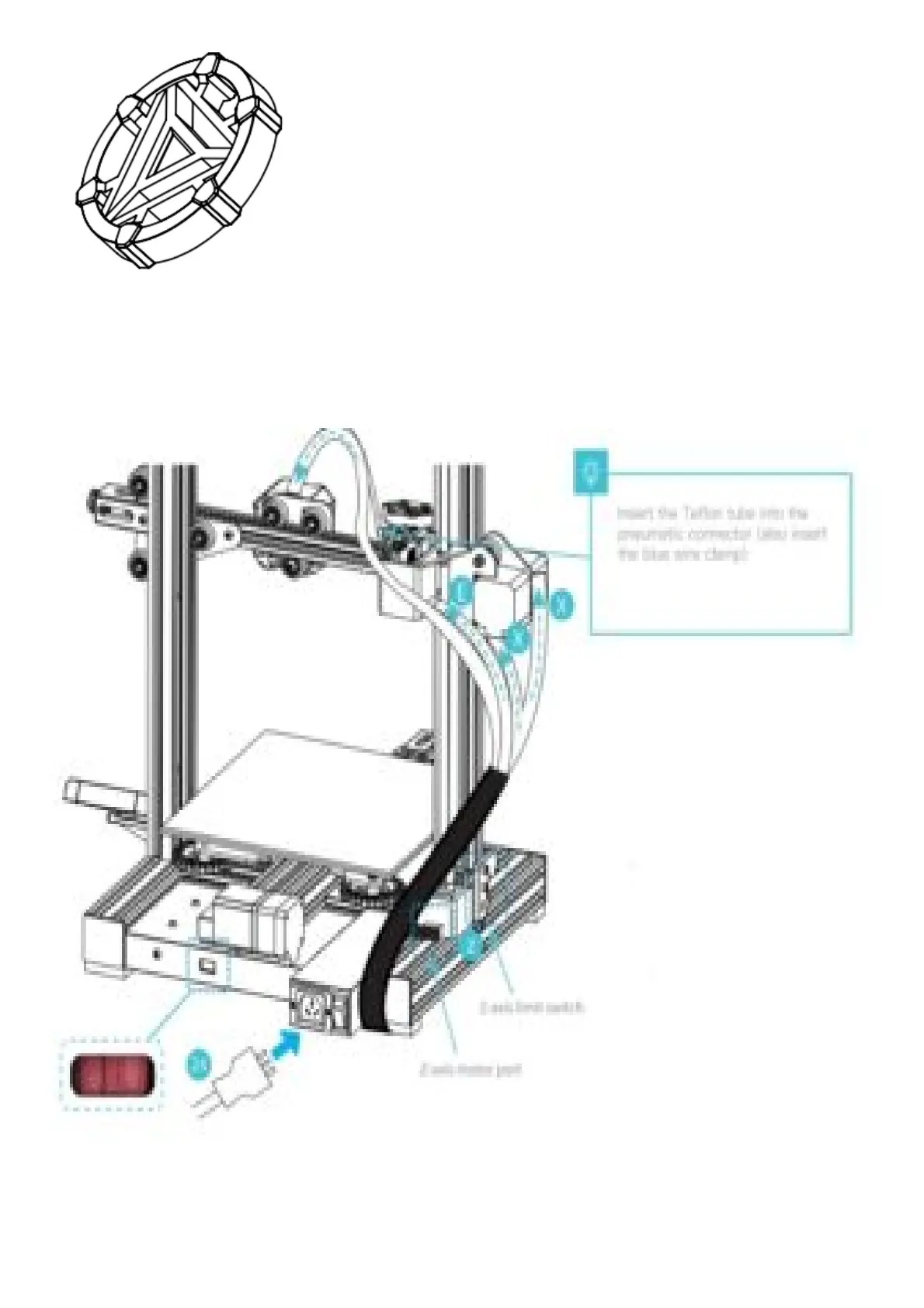

9. Wire connection
Connect X, E, Z-axis stepper motors according to the yellow label on the 6pin (4 wires) port
Connect X, Z-axis limit switches according to the yellow label on the 3pin (2wires) port
Plug in the power cord (as shown) and toggle the switch to turn on the power
24. Power cable x 1

Creality Ender-3 Specifications

General

Build Volume	220 x 220 x 250 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Nozzle Temperature	255°C
Max Bed Temperature	110°C
Connectivity	SD card, USB
Supported Materials	PLA, ABS, TPU, PETG
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Machine Dimensions	440 x 410 x 465 mm
Display	LCD
Bed Leveling	Manual
Print Speed	180 mm/s
Power Supply	24V
