Creality Ender-3 User Manual

Tip: Step: Install the upper frame of the gantry structurewith 4 pieces of MSX25 screw. Use an Allen
wrench to lock the screen kit onto the machine with the left side four screws.

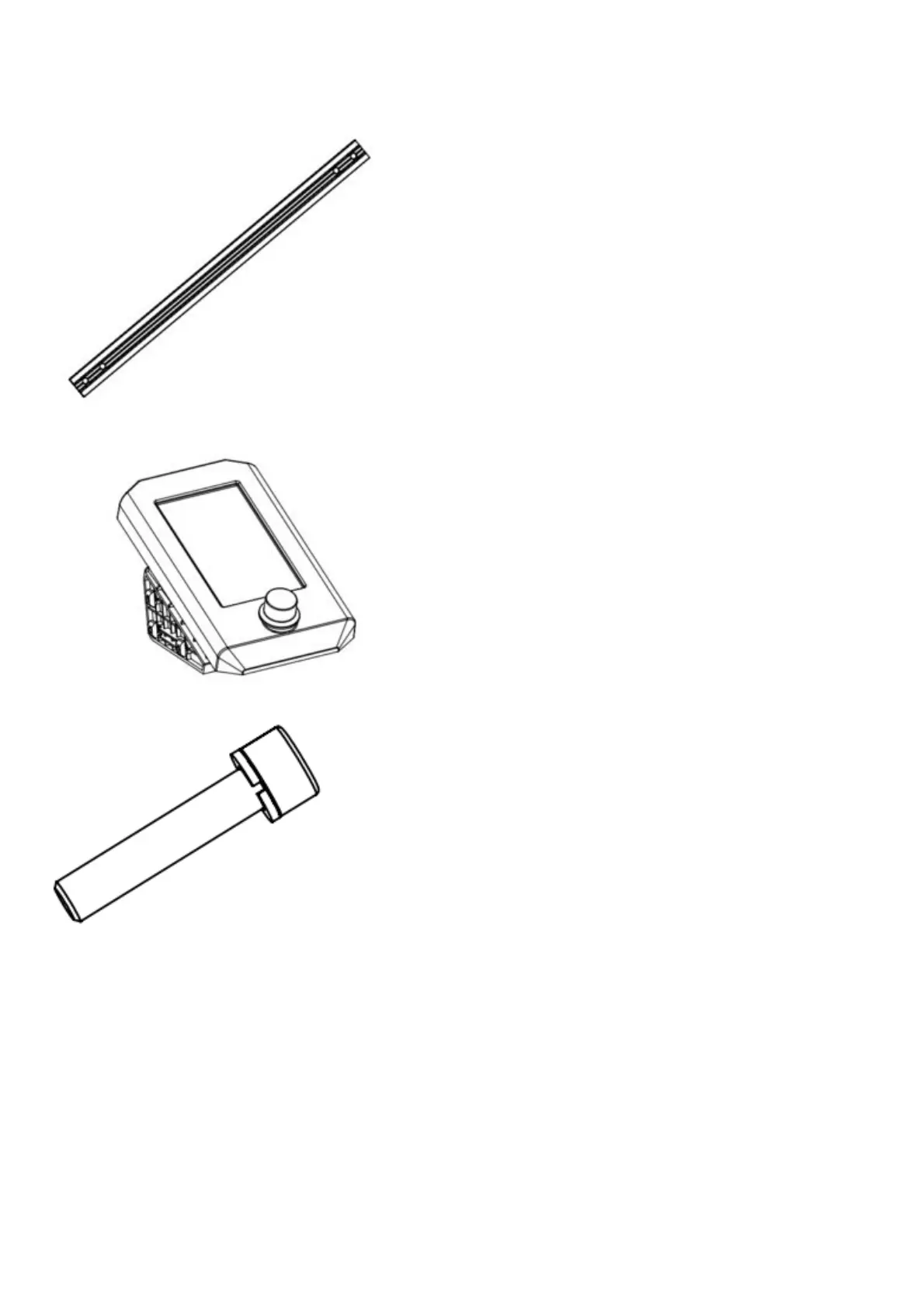

11. Gantry profile x 1
2. Display kit x 1
29. Hexagon socket head spring washer combination screw M5X25 x 4
8. Install material rack, gantry cover and indication knob

Creality Ender-3 Specifications

General

Build Volume	220 x 220 x 250 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Nozzle Temperature	255°C
Max Bed Temperature	110°C
Connectivity	SD card, USB
Supported Materials	PLA, ABS, TPU, PETG
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Machine Dimensions	440 x 410 x 465 mm
Display	LCD
Bed Leveling	Manual
Print Speed	180 mm/s
Power Supply	24V
