14 • DGE-100/DM-DGE-200-C: Digital Graphics Engines Supplemental Guide – DOC. 7696C
Use the Diagnostics - LAN screen to view and test the Ethernet connection. The
Diagnostics - LAN screen displays the DGE MAC and IP addresses, subnet mask
address, default router address, primary and secondary DNS addresses, hostname, and
domain name. A
Link indicator is provided to indicate the status of the Ethernet
connection. (Green indicates that the Ethernet connection is active.)
The Diagnostics - LAN screen also provides controls to test the connection to the
default router. Tap
On to begin the test and Off to end the test.
During the router test, the DGE pings the default router. If the router is communicating
with the DGE, connection data is displayed below the ping test controls within five
seconds. The connection data updates after every successive ping.
Tap the back arrow button
to return to the Diagnostics screen.
Test Patterns
Tap Test Patterns on the Diagnostics screen to display the Diagnostics - Test Patterns
screen.

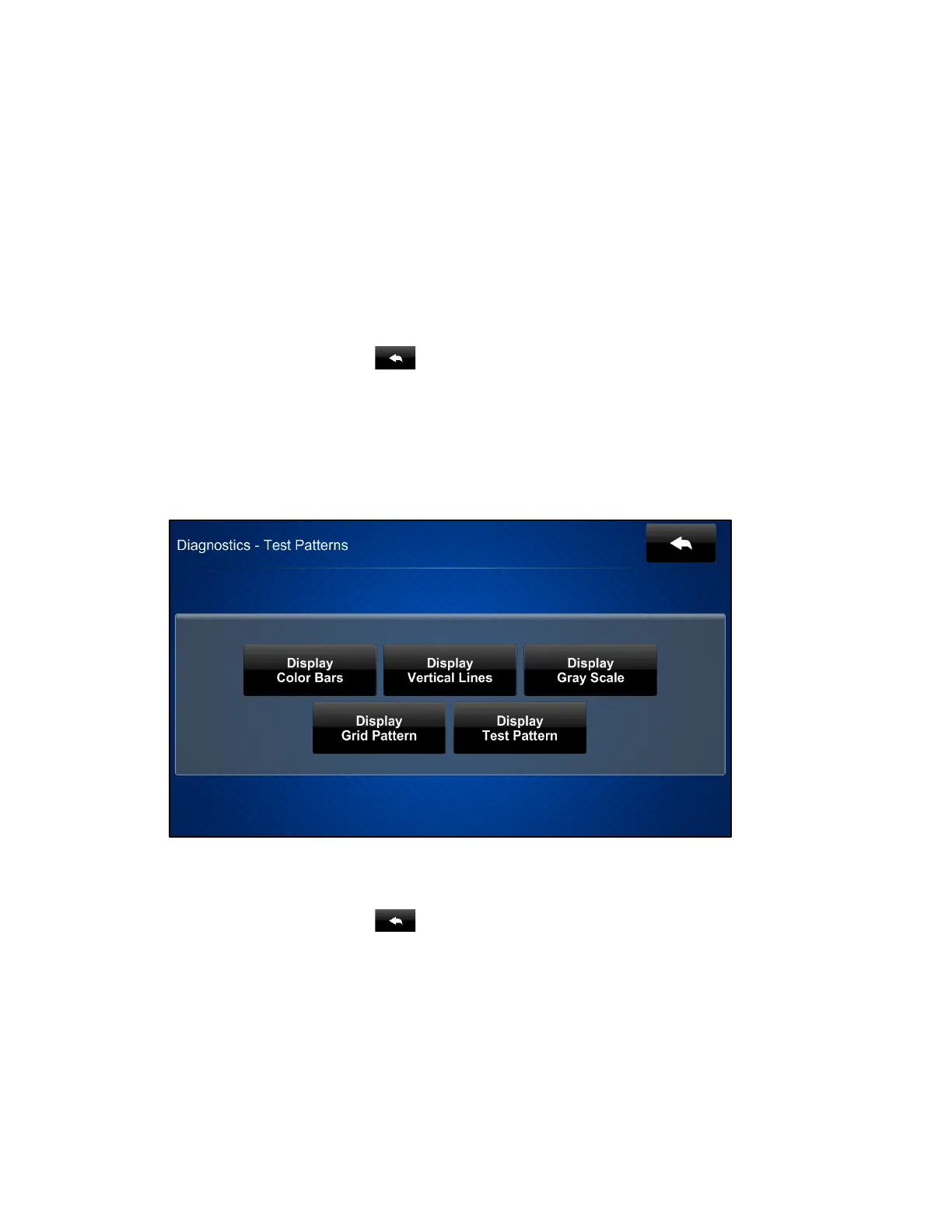

Diagnostics - Test Patterns Screen
Use the Diagnostics - Test Patterns screen to display any of the available test patterns.
Tap one of the buttons on the screen to display its respective test pattern.
Tap the back arrow button
to return to the Diagnostics screen.
