EDID (DM)
Click EDID to configure the EDID (extended display identification data) settings for the
DM input.

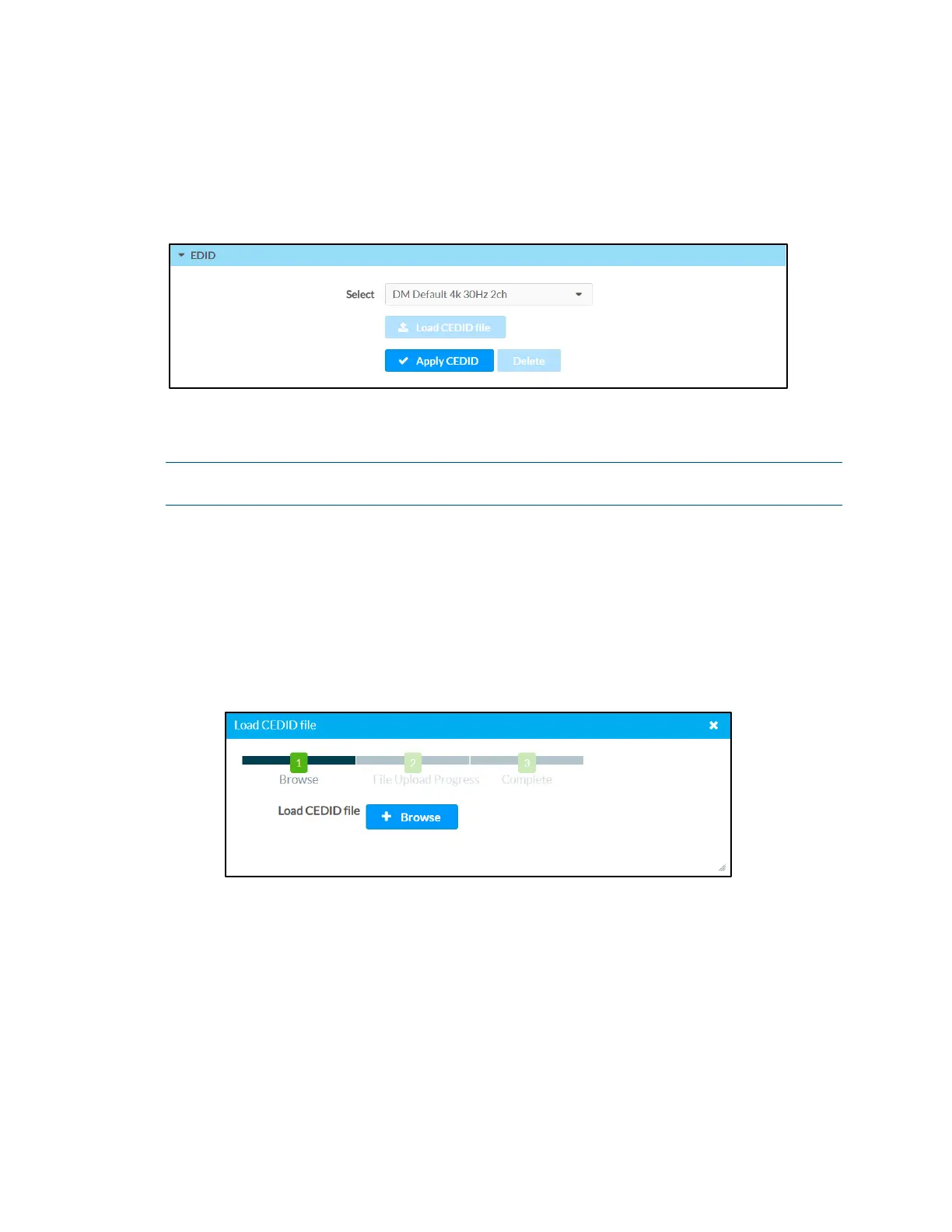

DM Input Page - EDID
Use the Select drop-down menu to select an EDID profile for the DM input, and then
click
✓ Apply CEDID. Click Delete to delete the selected EDID profile.
NOTE: Only devices that use the selected EDID profile are allowed to send signals
through the DGE.
If the desired EDID profile is not listed, a custom EDID profile may be loaded onto the
device.
To load a custom EDID (CEDID) profile:
1. Select Custom from the Select drop-down menu.
2. Click ↑ Load CEDID file. The Load CEDID file dialog box is displayed.
Load CEDID file Dialog Box
3. Click + Browse, and then navigate to the CEDID file on the host computer.
4. Select the CEDID file, and then click Open.
5. Click Send EDID to load the CEDID file to the DGE. The upload progress is shown
in the dialog box.
6. Once the DGE has completed the upload, click OK.
