Supplemental Guide – DOC. 7696C DGE-100/DM-DGE-200-C: Digital Graphics Engines • 21
Network
Click Network to view the status of the network settings for the DGE.

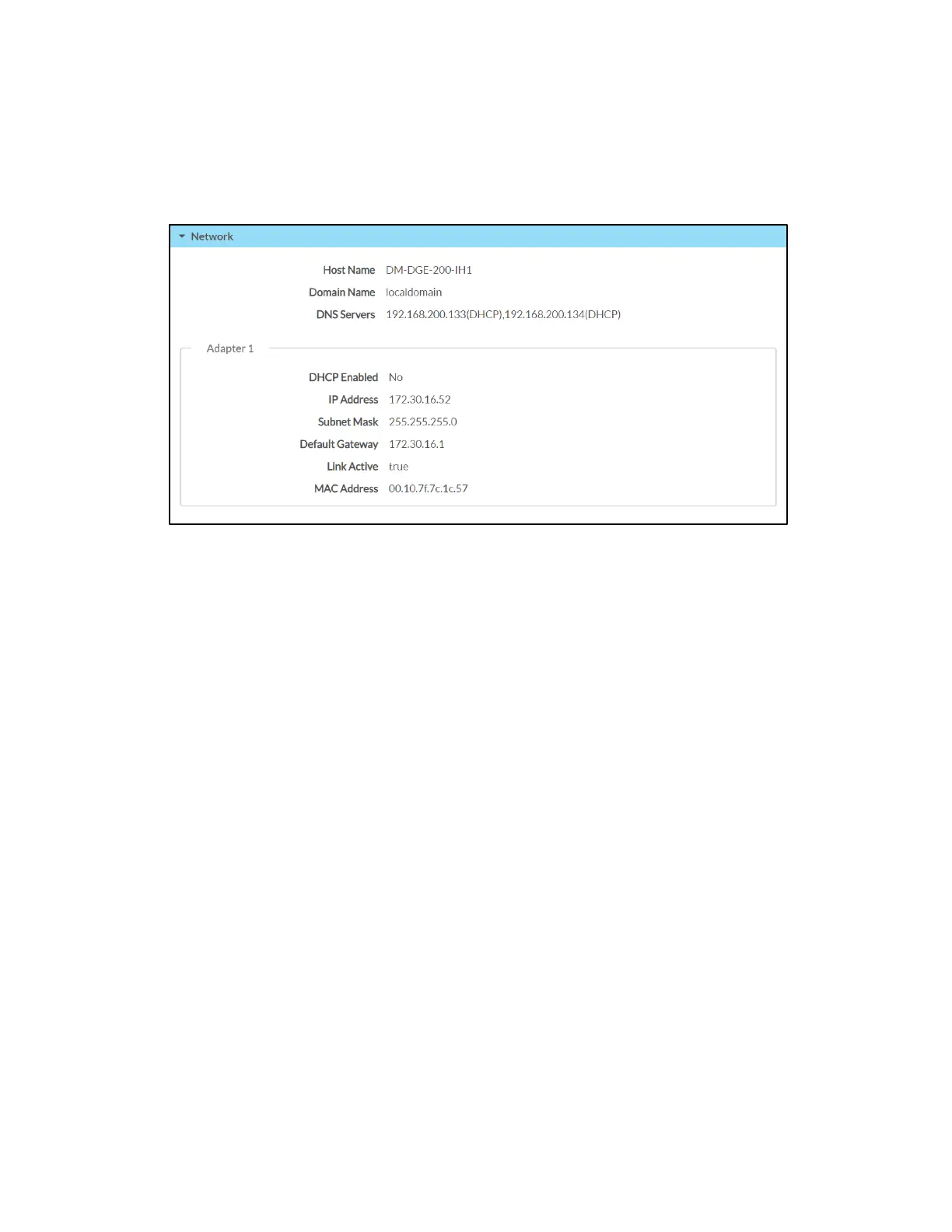

Status Page - Network
The following Network information is displayed:
• Host Name: The DGE hostname
• Domain Name: The DGE domain name
• DNS Servers: The DNS (domain name server) addresses used to resolve the
DGE domain to an IP address
• DHCP Enabled: Reports whether the IP address is static (Yes) or dynamic (No)
• IP Address: The DGE IP address
• Subnet Mask: The DGE subnet mask address
• Default Gateway: The gateway router address
• Link Active: Reports the status of the Ethernet connection (A true message
indicates that the Ethernet connection is active, while a
false message indicates
that the Ethernet connection is inactive.)
• MAC Address: The unique DGE MAC (media access control) address
For more information on configuring network settings, refer to "Network" on page 29.
