DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV Product Manual – DOC. 8425B
DM-NVX-D30C

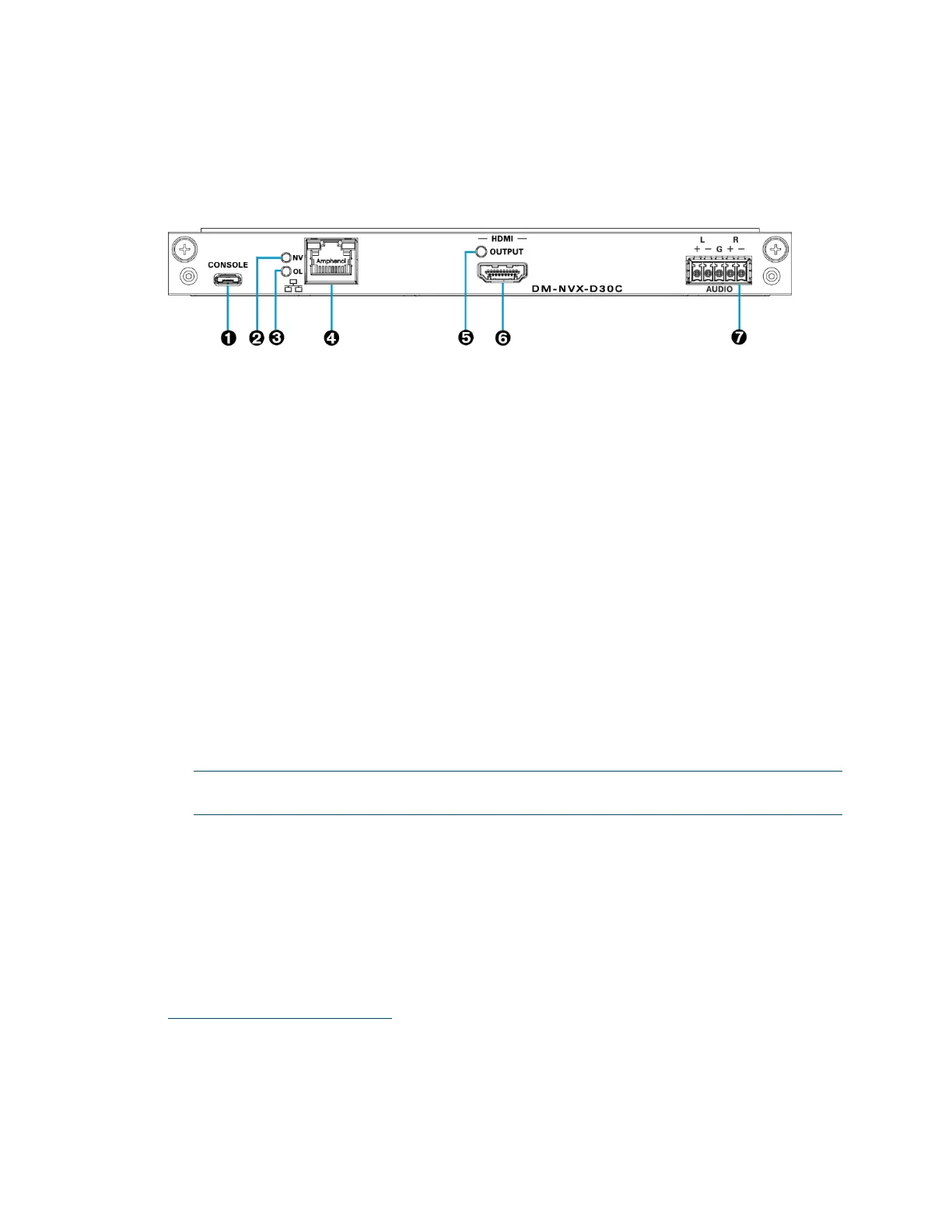

The following illustration shows the connectors, controls, and indicators that are
available on the DM-NVX-D30C.
DM-NVX-D30C
 CONSOLE: Micro USB connector, female;
USB 2.0 computer console port for setup
 NV LED: Green LED, indicates that the device is receiving and decoding network
video.
 OL LED: Green LED, indicates an online connection to a control system via Ethernet
 LAN: 100BASE-TX/1000BASE-T Ethernet port;
1
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
 HDMI OUTPUT LED: Green LED, indicates video signal transmission at the
HDMI output
 HDMI OUTPUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
2
,
3
 AUDIO: 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
NOTE: The analog audio output is functional only when the DM-NVX-D30C is
receiving a 2-channel stereo input signal.
1
The LAN port must connect to a 1000BASE-T switch in order to stream network video.
2
Device control via CEC requires the use of a Crestron 3-Series or later control system.
3
The HDMI connection requires an appropriate adapter or interface cable to accommodate a DVI signal.
CBL-HD-DVI interface cables are sold separately.
