Supplemental Guide – DOC. 8226D TSR-310: Handheld Touch Screen Remote • 17
IP Table Setup
On the setup screen, tap IP Table Setup to display the IP Table Setup screen.
NOTE: IP table setup is not required if the TSR-310 is in Performance UI mode.

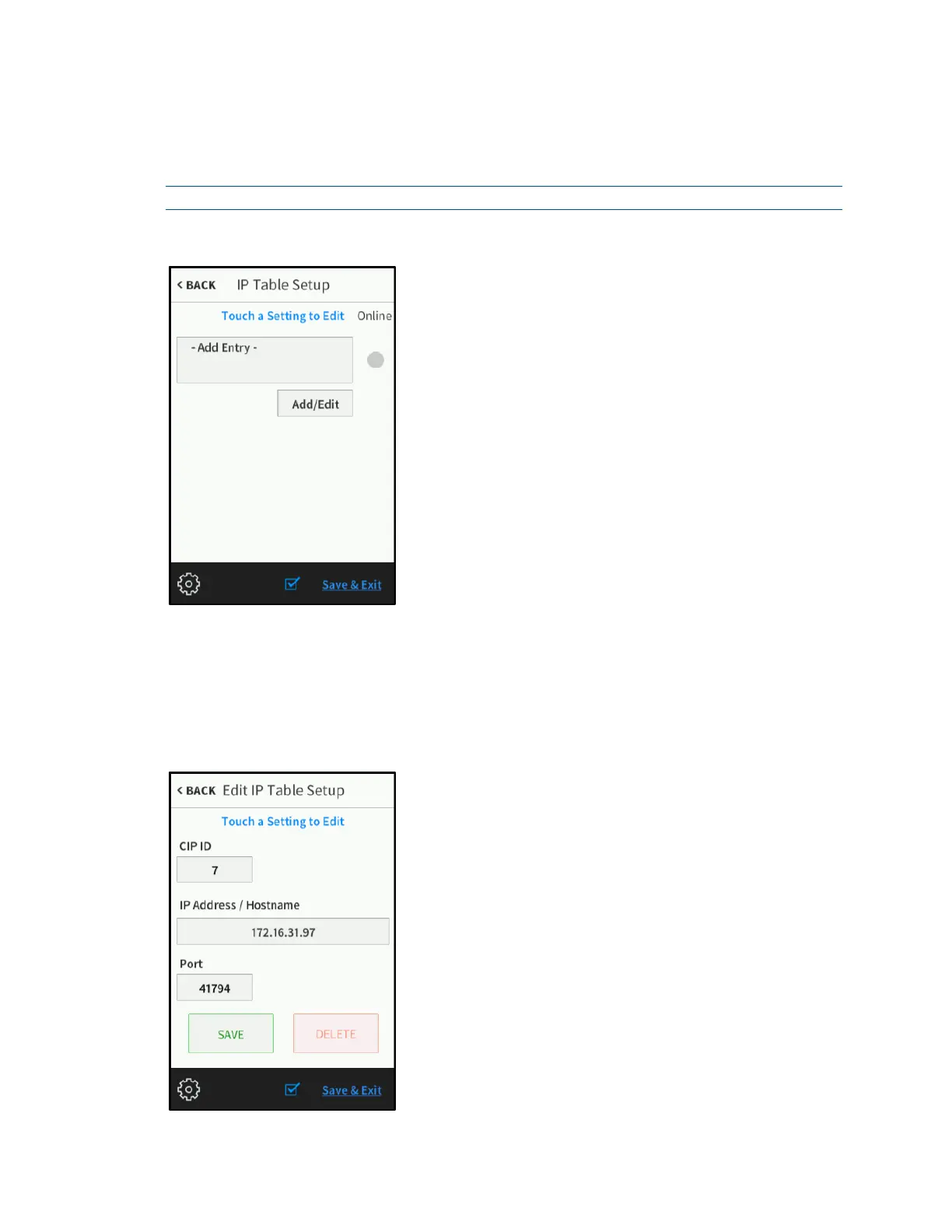

IP Table Setup Screen
Use the IP Table Setup screen to view and edit the IP table settings for connecting the
TSR-310 to a control system. The
IP Table Setup screen also provides an Online indicator
for the IP table entry. (Green indicates that the control system is online.)
To add or edit an entry, tap Add/Edit. The Edit IP Table Setup screen is displayed,
Edit IP Table Setup Screen
