Supplemental Guide – DOC. 8226D TSR-310: Handheld Touch Screen Remote • 39
Network
Click Network to view the status of the network settings for the TSR-310.

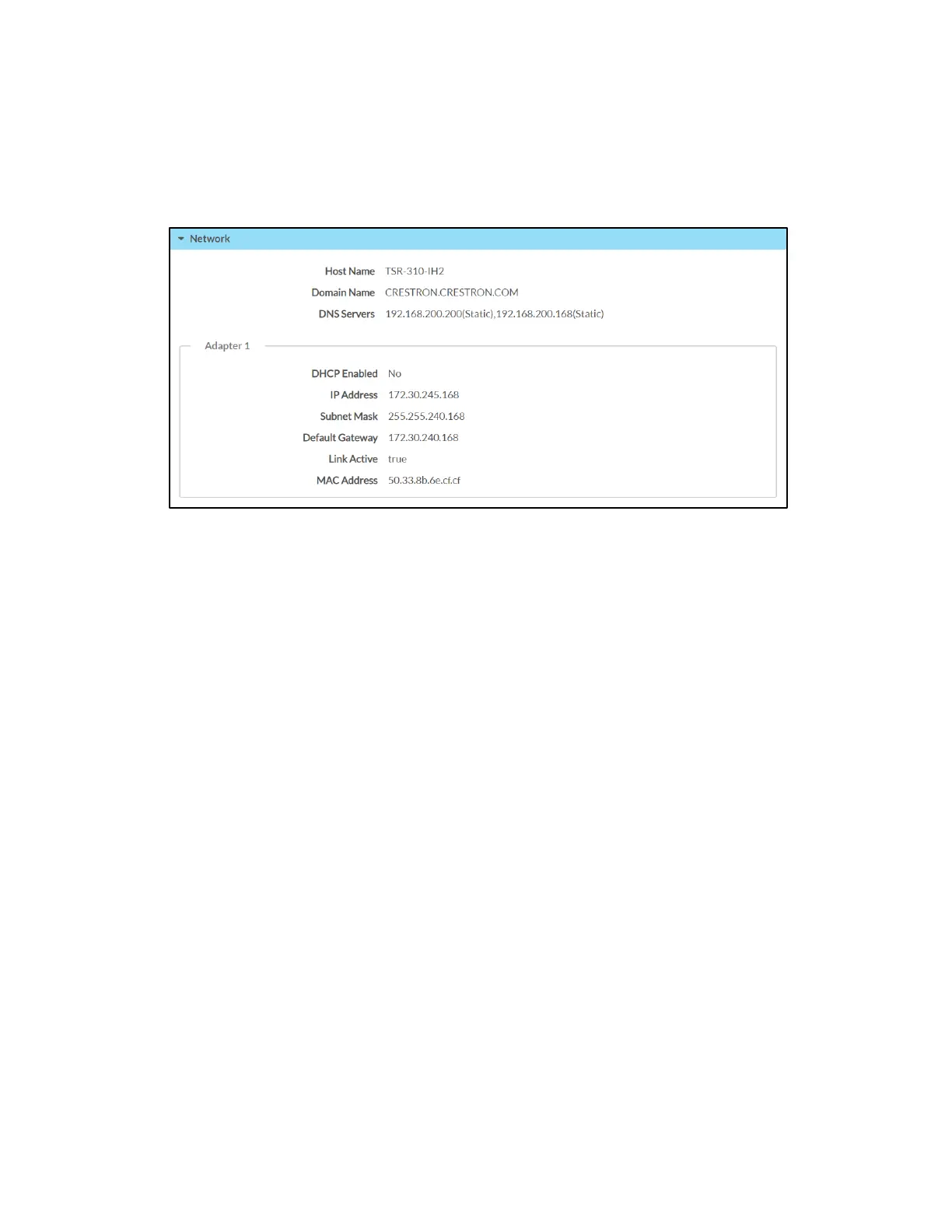

Status Tab - Network
The following Network information is displayed:
• Host Name: The TSR-310 hostname
• Domain Name: The TSR-310 domain name
• DNS Servers: The DNS (domain name server) addresses used to resolve the
TSR-310 domain to an IP address
• DHCP Enabled: Reports whether the IP address is static (Yes) or dynamic (No)
• IP Address: The TSR-310 IP address
• Subnet Mask: The TSR-310 subnet mask address
• Default Gateway: The gateway router address
• Link Active: Reports the status of the Ethernet connection (A true message
indicates that the Ethernet connection is active, while a
false message indicates
that the Ethernet connection is inactive.)
• MAC Address: The unique TSR-310 MAC (media access control) address
For more information on configuring network settings, refer to "Network" on page 43.
