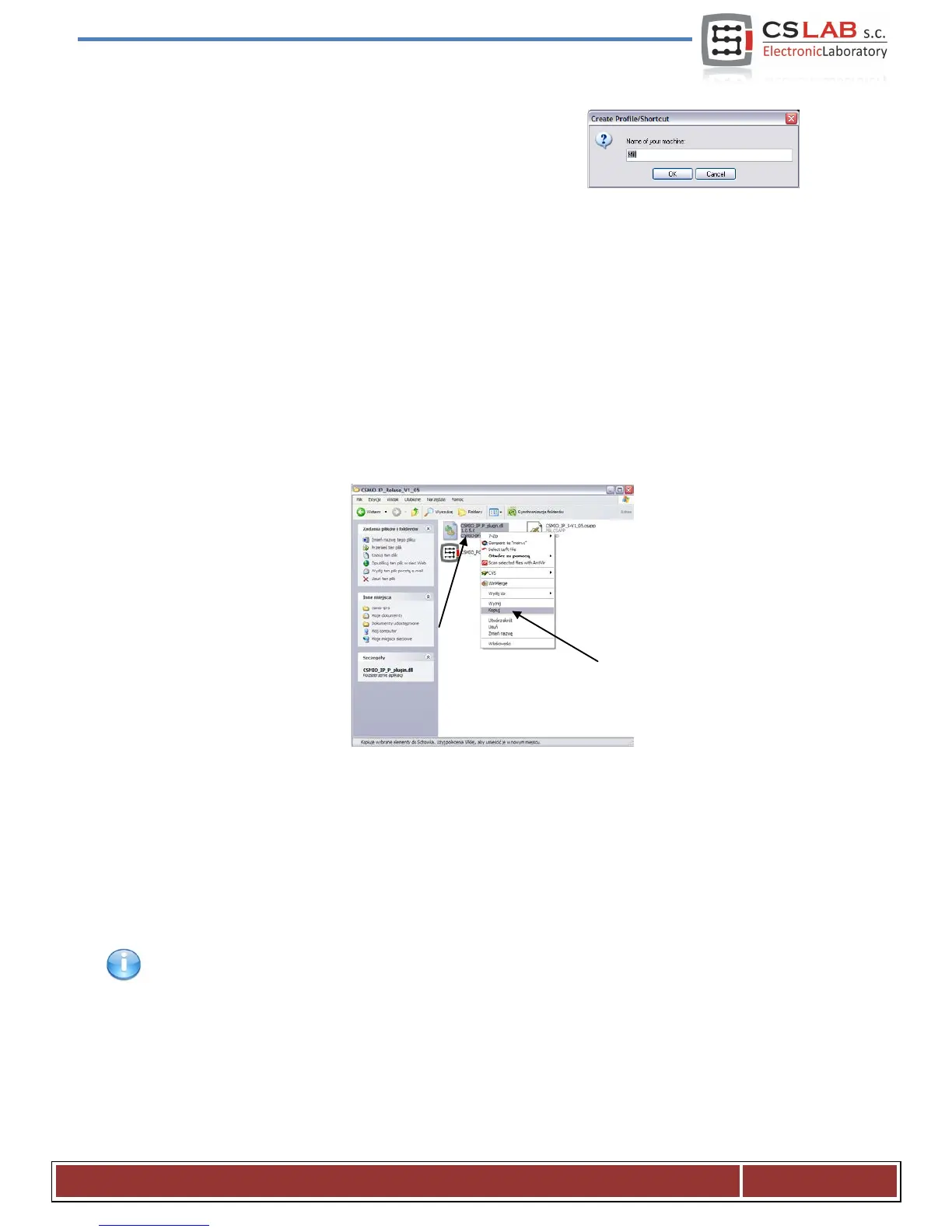

After you click on one of the buttons, you will see the window where
you can name your configuration profile, e.g.
“MyMillingMachine_400x250_CSMIO_IP”. Avoid spaces and special
signs (an underscore is allowed).
9.2 Microsoft® .Net installation (older operating systems)
If you use an OS version older than Windows® 7, it may be necessary to install Microsoft® .Net. This
program is available on Microsoft® website and on CS-Lab Company website.
For proper installation, you have to be connected with Internet. The installation is automatic, you should
only approve “next” steps and restart your computer when it finishes.
9.3 Installation of the plug-in for Mach3
The plug-in installation comes down to copying a single file.
• Open the directory (or archive) with CSMIO/IP-M software (download is available on CS-Lab
website).
• Click the right mouse button on the „csmio_ip_m_plugin.dll” file and select from the menu
“Copy” position, or select the file and press CTRL+C on the keyboard.
• Open the „C:\Mach3\PlugIns\” directory
• Click on the window with right mouse button and select „Paste” or press CTRL+V on your
keyboard.
The plug-in and the CSMIO/IP-M firmware must be the same version. Update the controller firmware if
needed. The update process is described in the addition section - „CSMIO/IP-M software updating”.
CS- Lab s.c. – CNC CSMIO/IP- M controller
Page 33
