3. Recommendation for mechanical installation
CSMIO/IP-M controller and DB->Terminal block - connection modules were designed to be installed on
standard DIN-rail. It is the quickest and best way of installation.
The Controller uses a small amount of energy and creates a negligible amount of heat. The aluminum
housing provides adequate cooling for the electronics inside, even if the ambient temperature reaches
40
O
C (104
O
F).
As for the controller, there are no special precautions for ventilation and the minimum clearance
distances. However, usually, next to the controller in the control cabinet, there are also inverters, power
supplies, motor drives - these components emit a lot of heat, so you should always remember about their
proper location and proper ventilation of the cabinet.

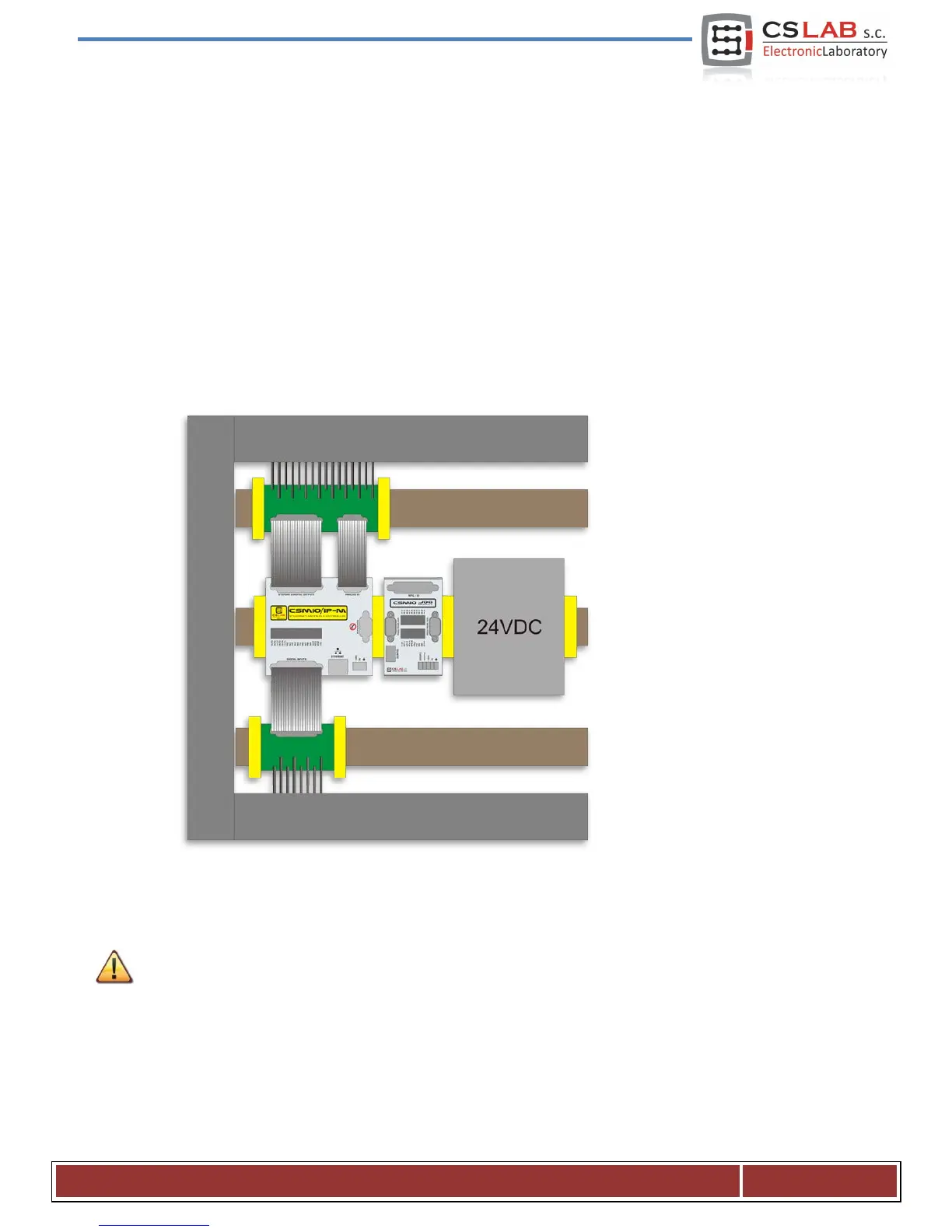

Here is an example of components arrangement in the control cabinet.
Caution is advised during the mechanical and electrical installation. Poorly tightened cable may cause
many problems; it is also very difficult to find such a defect while launching/using the system.
