Chapter 4. SNMP

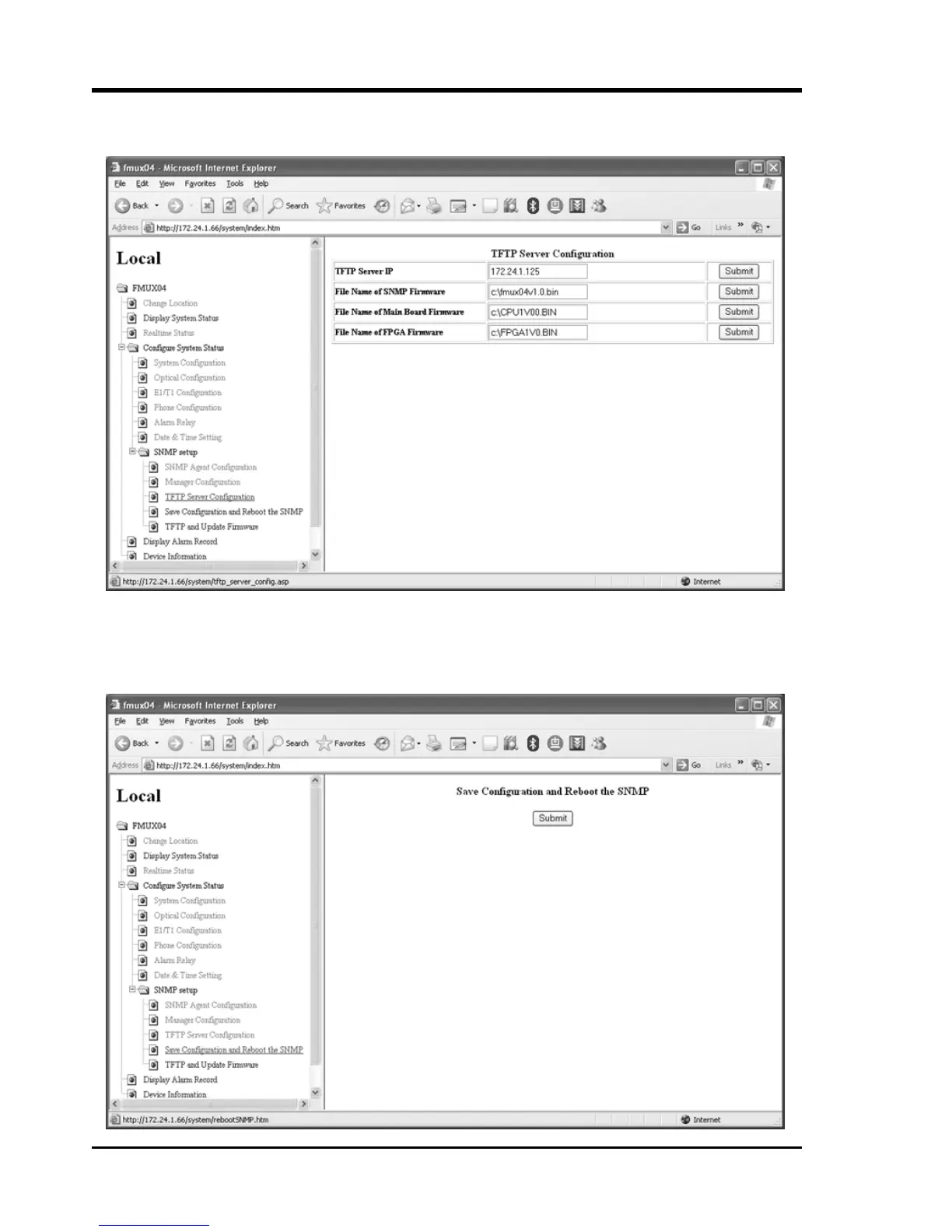

4.8.11.3 TFTP Server Configuration
Configures the SNMP card for TF
TP upgrade. (refer to 4.6.3)
4.8.11.4 Save Configuration and Reboot
The Save Configuration page allows the setti
ngs to be written to non-volatile flash followed
by rebooting of the SNMP agent. (refer to 4.6.4)
52
51
53
