CTX NEXT User Manual

GENERAL DESCRIPTION
Description

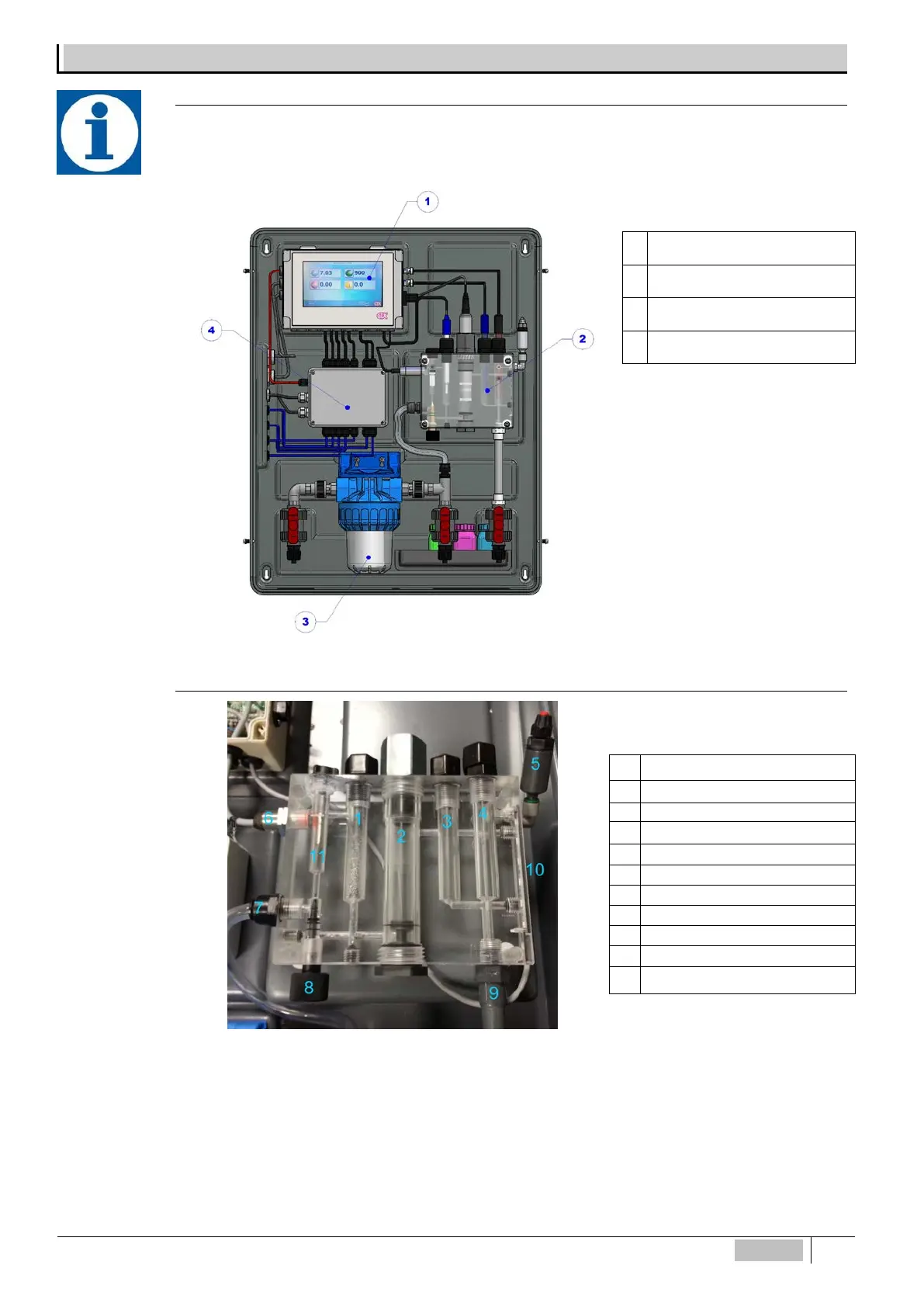

The analyser of this manual, showed in fig. 1, is made up of an electronic gear case, a measurement cell and
filter. It is powered by the network (100÷240Vac-50/60Hz) by a Switching feeder. This equipment has been designed
to analyse ON-LINE water in different applications.
1 Controller
2 Probes Holder
3 On-line filter
4 Electrical Connection Box
Fig.1 Chlorine, pH, Rx and temperature analyser (NEXT)
Idraulic System
1 d12 electrode housing
2
CL electrode housing
3
d12 electrode housing
4
d12 electrode housing
5
Air Bleeding
6
Proximity sensor
7
Inlet
8
Flow regulator
9
Outlet
10
RGB led strip
11 Floating flow meter
Fig.2 Probes Holder – full configuration
ENGLISH
45

CTX NEXT Specifications

General

Brand	CTX
Model	NEXT
Category	Controller
Language	English
