Setting the Setpoint Value (4-20mA)
Below is the sequence of operations for setting the set-point values 4-20 mA, to control the pumps (with mA input) proportionally.
The tool has 6 analogue outputs. One of the outputs can be set as RECORDER, Alkaline Setpoint or Acid Setpoint

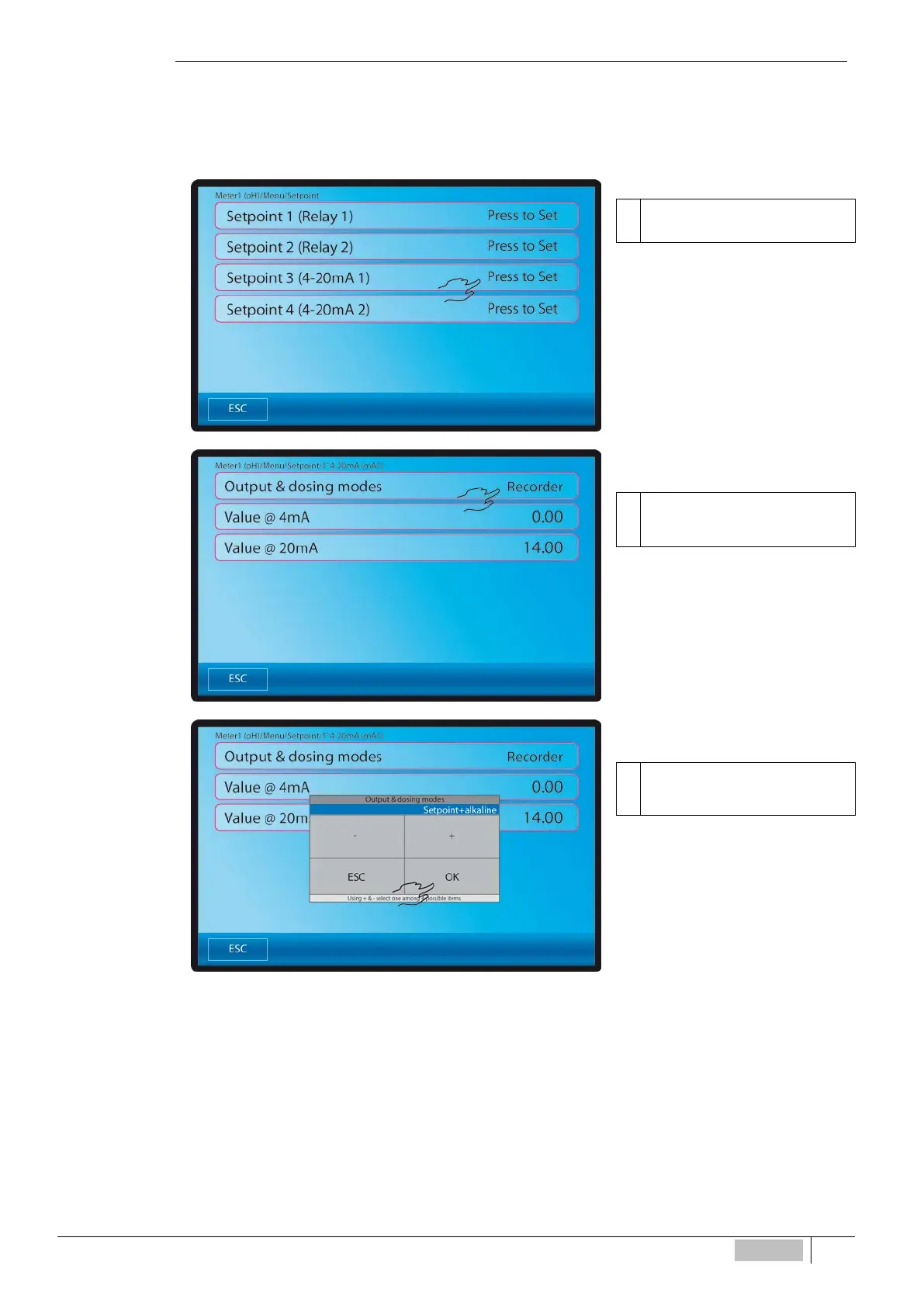

1
Touch PRESS TO SET to
access the menu
2
Press Recorder to access the
screen for selecting the type of
Output & dosing modes.
The same procedure applies to
relay 2.
3
Press the OK key to confirm, or
ESC to reject the selection.
OUTPUT & DOSING MODES:
- Recorder
- Setpoint+alkaline
- Setpoint+acid
- disabled
