8. There are three fittings on top of the fuel tank:
See Figure 7.37.
8a. The fuel level sending unit, mounted fur-
thest forward
8b. The fuel tank vent, with no line connected
to it (plastic fitting)
8c. The fuel pick-up for the engine (brass fit-
ting)
9. Raise the cargo box and tilt-up the passenger
seat to reach the fuel tank.
10. To remove the fuel tank: See Figure 7.38.
• Disconnect the fuel line from the fitting on top of
the tank. Clamp the line to prevent spillage or
contamination.
• Unplug the electrical connection to the fuel level
sender
11. Remove the two screws that fasten the fuel tank
hold-down wire to the frame. See Figure 7.39.
12. Lift the fuel tank hold-down wire up, and pivot
the front of the tank inward. See Figure 7.40.
13. Pull the fuel tank back and out to remove it.
13.1. When installing the fuel tank reverse the instruc-
tions for fuel tank removal.

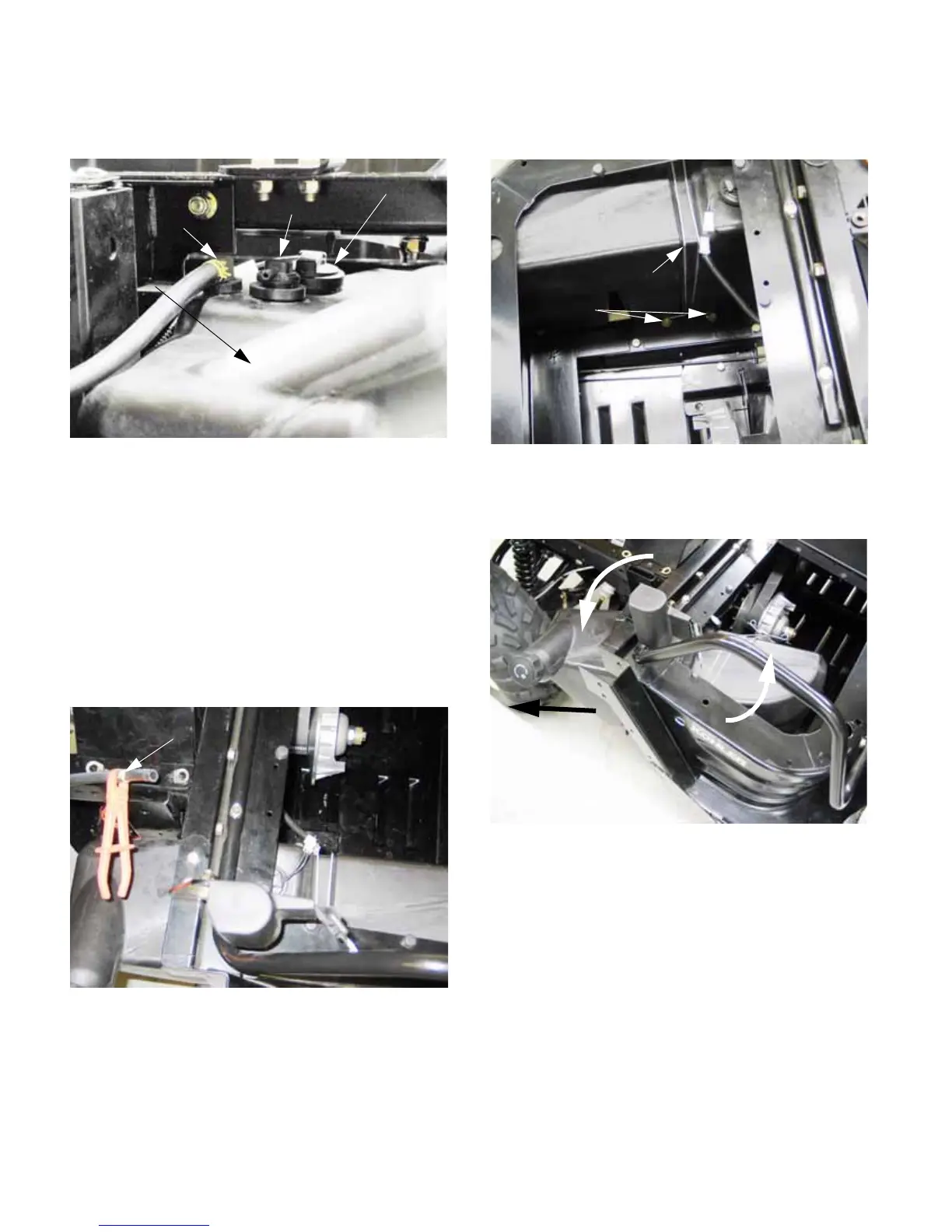

Figure 7.37
Fuel pick-up
Fuel tank vent
Fuel level
sender
Fuel tank
Figure 7.38
Fuel line:
disconnected and clamped
Figure 7.39
Hold-down wire
Screws
Figure 7.40
Pivot tank
then pull back
to remove it
