Chapter 4 - Front Suspension and steering
155
Steering Shaft
Refer to the INSPECTION section of this chapter
for information on when to replace the steering
shaft.
To remove the steering shaft and the bearings
that support it:
1. Remove the hood for easy access:
1a. Open the hood.
1b. Disconnect the headlights
1c. Disconnect the check cables using a 3/8”
wrench.
1d. Remove the hairpin clips that hold the
hood to the hinge pins, slide the hood to
the operator’s left, and lift it off of the vehi-
cle.
2. If the vehicle has a cab on it, remove any cab
components that may prevent the dash panel
from being removed.
3. Disconnect the negative cable from the battery
(located beneath the driver’s seat), to prevent
any electrical connections from shorting-out.
4. Match-mark and unplug the electrical connec-
tions to the dash panel: See Figure 4.79.
• Key switch
• Hour meter
• Four wheel drive engagement switch
• 12 Volt power outlet
• Cub Cadet accessories that have been added.

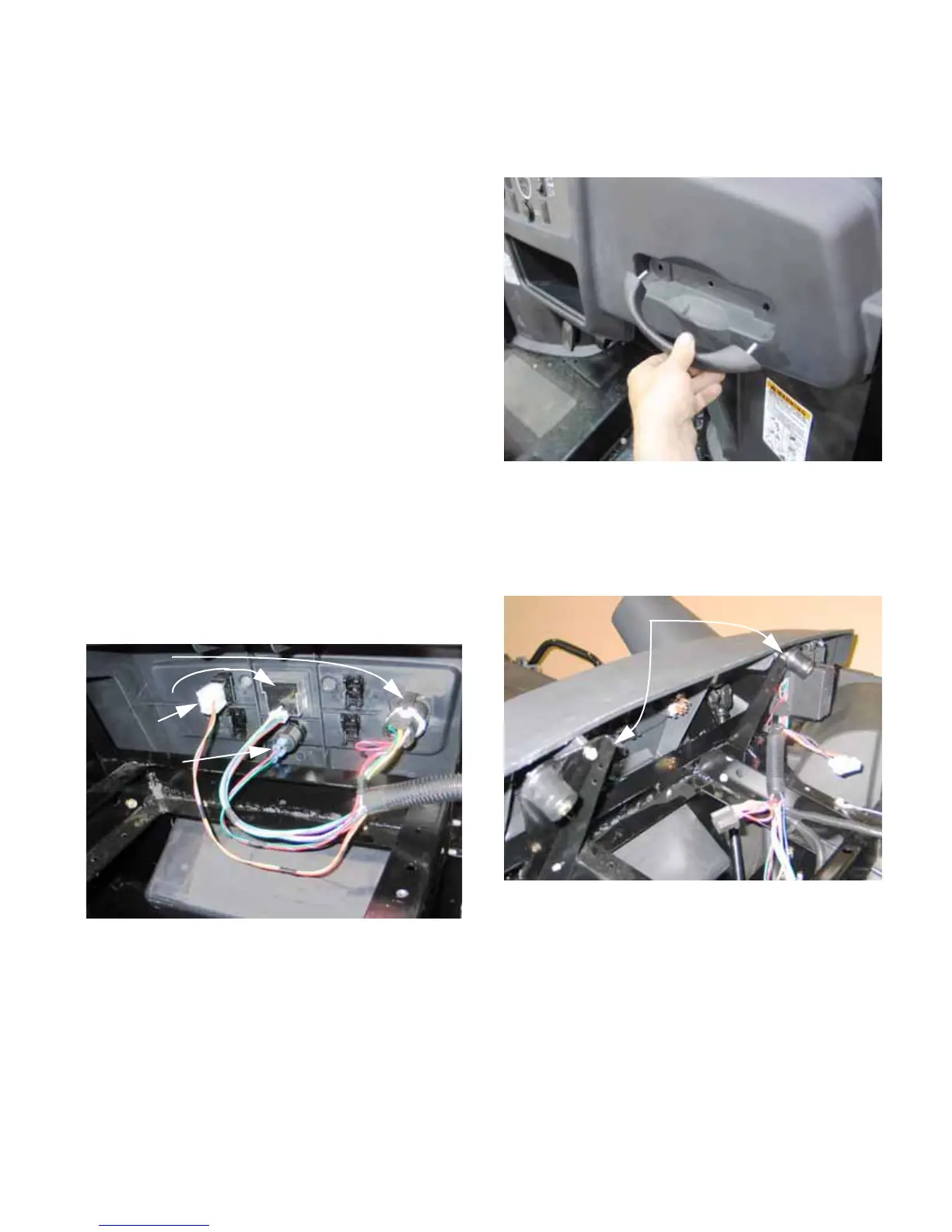

Figure 4.79
Key Switch
Hour meter
Power outlet
4-wheel-drive
5. Remove the grab handle from the passenger’s
side of the dash panel using a 1/2” wrench.
See Figure 4.80.
6. Remove the two screws that secure the top
edge of the dash panel to the hood and dash
mount brackets using a 5/16” wrench.
See Figure 4.81.
Figure 4.80
Figure 4.81
Hood and dash
mounting brackets
